  NiceRF 100mW uart rf TTL RS232 RS485 interface SV612 wireless transmitter module 868 mhz



SV612 is highly-integrated RF module, which adopts high performance Si4432 from Silicon Labs. It has 3 optional Interface (TTL, 232, 485). SV612 has high sensitivity and 100mW output power to achieve long RF range and reliable RF communication. SV612 comes with many parameters which are configurable, such as:  frequency, data rate, output power, Net ID, Node ID. Users can configure the parameters through PC or customer’s own device. The features of long distance, wide working voltage and simple parameters configuration make SV612 wildly used in many fields.







 Electronic Specifications

Parameter

Min.

Typ.

Max.

Unit

Conditions

Operation conditions

Supply Voltage

2.8

5.0

6.0

V

TTL level

4.5

5.0

5.5

V

232/485 level

Operating Temperature

-40

25

+85

°C



Current consumption

RX Current



25



mA

TTL level


34



mA

485 level


32.7



mA

232 level

TX current



95



mA

@20dBm

Sleep Current



<5



uA

@TTL level

RF parameters

Frequency

414.92

433.92

453.92

MHZ

@433MHZ

470.92

470.92

509.92

MHZ

@470MHZ

849.92

868.92

888.92

MHZ

@868MHZ

895.92

914.92

934.92

MHZ

@915MHZ

Air data rate

1.2

9.6

38.4

Kbps

GFSK

Output power

-1

/

+20

dBm

Setting by software

Sensitivity



-121



dBm

@1.2kbps



Feature:
*1400m RF line-in-sight distance @ 1.2kbps
*433/470/868/915 MHz
*40 channels
*4 bytes net ID
*2 bytes node ID
*Multiple air data rate
*GFSK modulation
*Antenna match automatically and bi-direction switch control
*Support Serial port parameter setting
*Sensitivity: -121 dBm
*Max output power:100 mW
*Voltage:2.8 ~ 6.0 V
*Temperature:-40 ~ +85 °C


Application:
*Remote telemetry
*Auto meter reading
*Security systems
*Data logger
*Wireless data communication
*Building residential automation and security
*Healthy monitoring
*Wireless PC peripherals
*Access Control System
*Robot control



Schematic:

NiceRF 100mW uart rf TTL RS232 RS485 interface SV612 wireless transmitter module 868 mhz



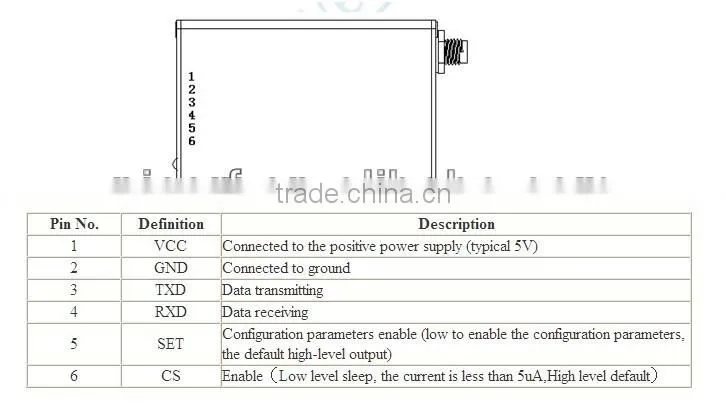

Pin Definition:



 NiceRF 100mW uart rf TTL RS232 RS485 interface SV612 wireless transmitter module 868 mhz

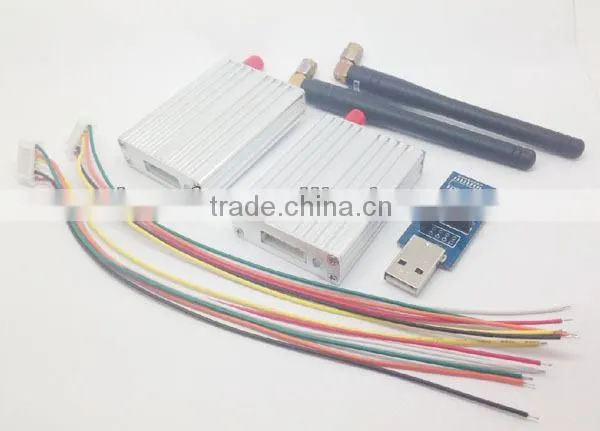

Accessories:

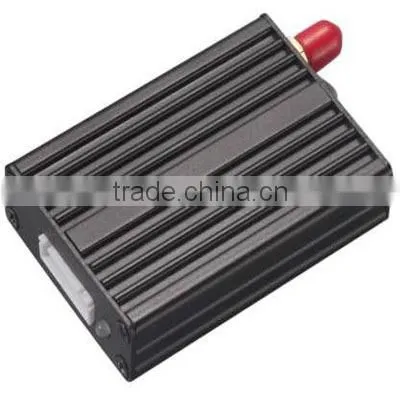

Antenna:The antenna is an important part of the communication system. Its feature directly affects the performance of the communication system. The match impedance of module is 50 ohms, we recommend that users adopt standard spring antenna.

NiceRF 100mW uart rf TTL RS232 RS485 interface SV612 wireless transmitter module 868 mhz





USB Bridge board: Modules is needed by configuration tool to configure the relative parameters. The Company supplies a USB interface matching plate adapter with TTL/RS232/RS485 level, so that users can quickly and easily with the PC side communication.

NiceRF 100mW uart rf TTL RS232 RS485 interface SV612 wireless transmitter module 868 mhz





Spectrogram:

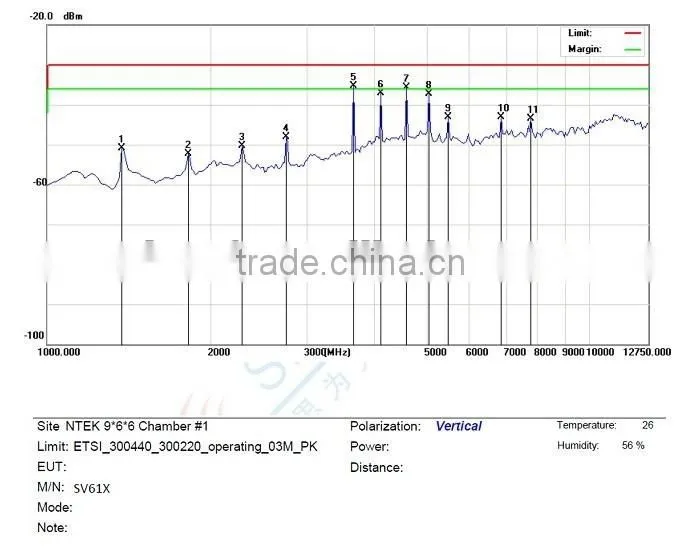

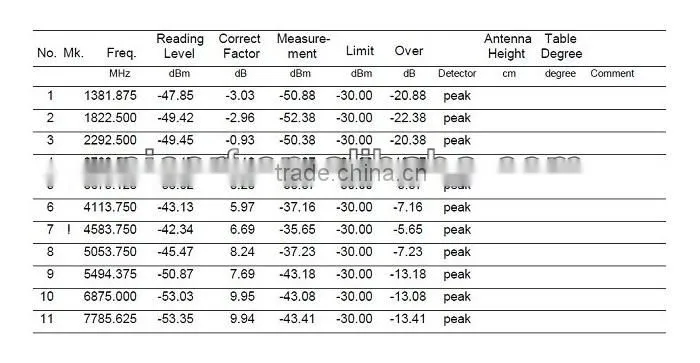

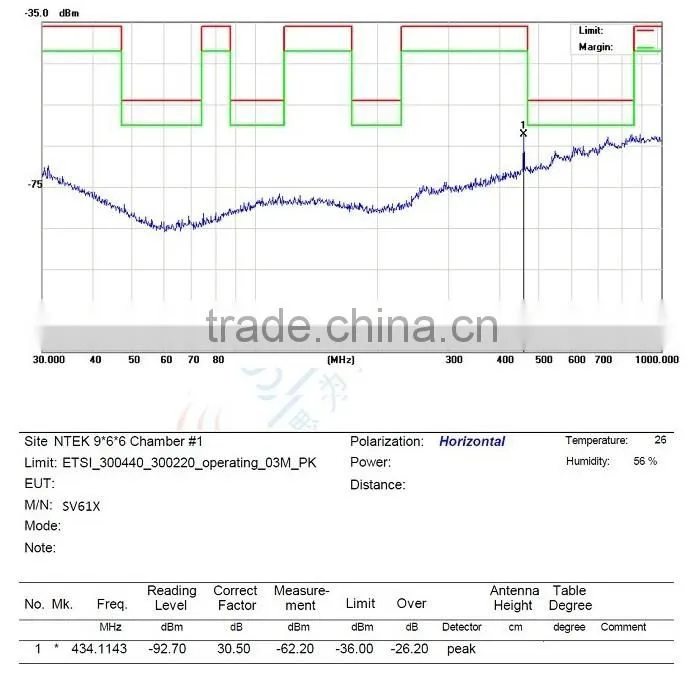

                                                     Radiated Emission Measurement

 NiceRF 100mW uart rf TTL RS232 RS485 interface SV612 wireless transmitter module 868 mhz



                                                     Radiated Emission Measurement

 NiceRF 100mW uart rf TTL RS232 RS485 interface SV612 wireless transmitter module 868 mhz

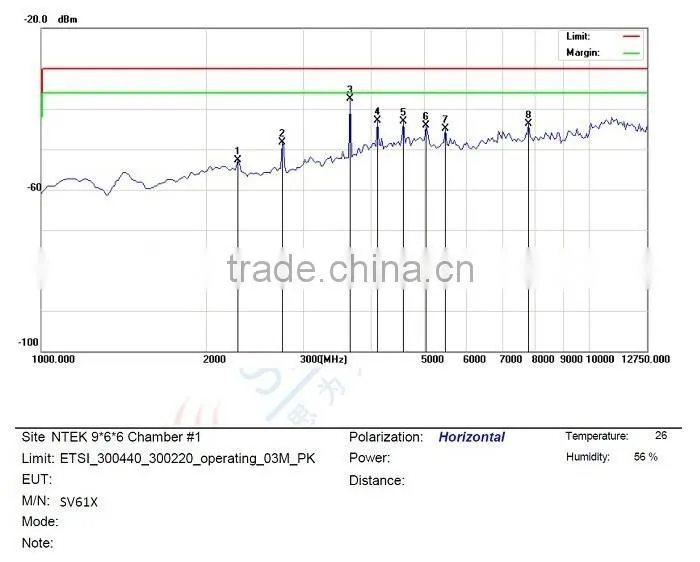

                                                   Radiated Emission Measurement

NiceRF 100mW uart rf TTL RS232 RS485 interface SV612 wireless transmitter module 868 mhzNiceRF 100mW uart rf TTL RS232 RS485 interface SV612 wireless transmitter module 868 mhz

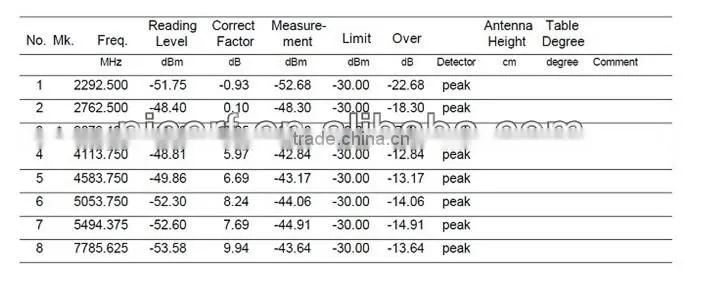

                                                   Radiated Emission Measurement



 NiceRF 100mW uart rf TTL RS232 RS485 interface SV612 wireless transmitter module 868 mhzNiceRF 100mW uart rf TTL RS232 RS485 interface SV612 wireless transmitter module 868 mhz

NiceRF 100mW uart rf TTL RS232 RS485 interface SV612 wireless transmitter module 868 mhz
