GPS Antenna Car With Two Amplification DVD Navigation GPS Active Antenna 3m Meters SMA Interface FZ0391

GPS Antenna Car With Two Amplification DVD Navigation GPS Active Antenna 3m Meters SMA Interface FZ0391 thumbnail-1
GPS Antenna Car With Two Amplification DVD Navigation GPS Active Antenna 3m Meters SMA Interface FZ0391 thumbnail-2
GPS Antenna Car With Two Amplification DVD Navigation GPS Active Antenna 3m Meters SMA Interface FZ0391 thumbnail-3
GPS Antenna Car With Two Amplification DVD Navigation GPS Active Antenna 3m Meters SMA Interface FZ0391 thumbnail-4
GPS Antenna Car With Two Amplification DVD Navigation GPS Active Antenna 3m Meters SMA Interface FZ0391 thumbnail-5
GPS Antenna Car With Two Amplification DVD Navigation GPS Active Antenna 3m Meters SMA Interface FZ0391 thumbnail-6
GPS Antenna Car With Two Amplification DVD Navigation GPS Active Antenna 3m Meters SMA Interface FZ0391 photo-1
GPS Antenna Car With Two Amplification DVD Navigation GPS Active Antenna 3m Meters SMA Interface FZ0391 photo-2
GPS Antenna Car With Two Amplification DVD Navigation GPS Active Antenna 3m Meters SMA Interface FZ0391 photo-3
GPS Antenna Car With Two Amplification DVD Navigation GPS Active Antenna 3m Meters SMA Interface FZ0391 photo-4
GPS Antenna Car With Two Amplification DVD Navigation GPS Active Antenna 3m Meters SMA Interface FZ0391 photo-5
GPS Antenna Car With Two Amplification DVD Navigation GPS Active Antenna 3m Meters SMA Interface FZ0391 photo-6
US$ 1.9 - 2.9 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Yetnorson
Model Number:
YNX-PHS-GPS-Y017
Contact Supplier Request Quote Chat Now
Shenzhen Yetnorson Technology Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Yetnorson
Model Number YNX-PHS-GPS-Y017
Car Make GPS antenna for car
Frequence Range 1575.42mhz/1602mhz
Gain(dB) 28dB±3dB
Cable Length 3000mm OR 5000mm

GPS Antenna Car with Two Amplification DVD Navigation GPS Active Antenna 3m Meters SMA Interface FZ0391



Key features of GPS Antenna Car with Two Amplification



1. Antenna Specification:

Center Frequency

1575.42MHz

V.S.W.R

<=1.5

Band Width

±5 MHz

Polarization

Right-hand polarization

Impendence

50Ω





2.LNA Specification

LNA Gain(Without cable)

 ≥28dB

Noise Figure

<=1.5dB

Interference suppression

20dB(f0±140MHz)

 V.S.W.R

<2.0

 DC Voltage

3.0±0.3VDC;5.0±0.5VDC

 DC current

 <=20mA





3.Mechanical Specification

 Weight

65 gram

 Size

49×38×16mm

 Cable

RG174     3m

 Connector

SMA

 Mounting

Magnetic base

 Housing

Black

 Case Packaging

Waterproof and dustproof





4. Environmental Specification

 Working Temp

-40~+85

 Storage Temp

-40~+90

 Vibration

Sine sweep 1g(0-p) 10~50~10Hz each axis

 Humidity

95% non-condensing

 Waterproof

IP 65 M (GB 4208-84, sealing, anti-flooding)

 MTBF=1×10-6/pc.hr

40±5    DC=3.3v

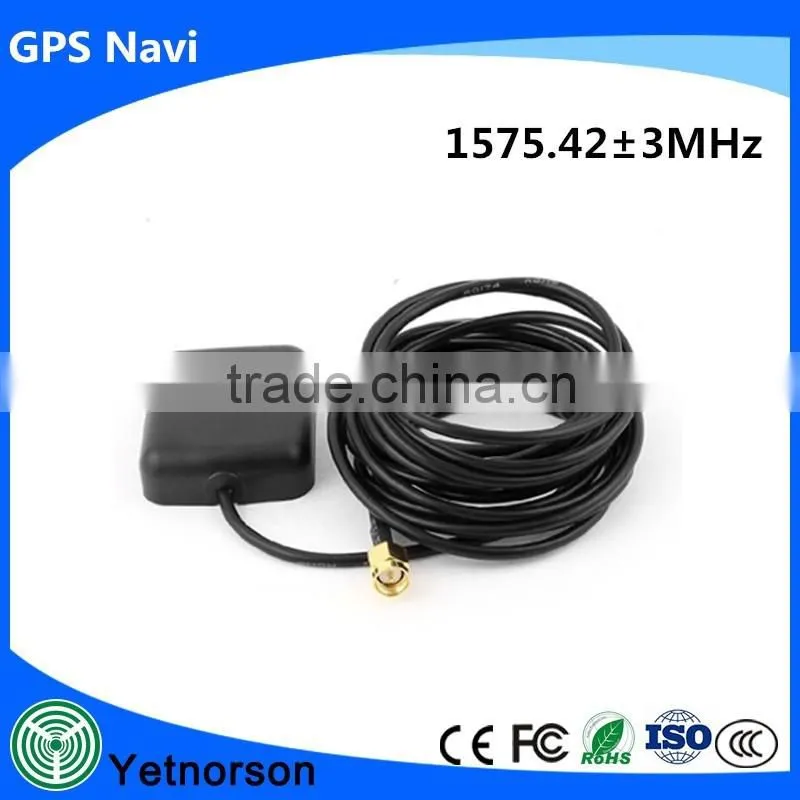

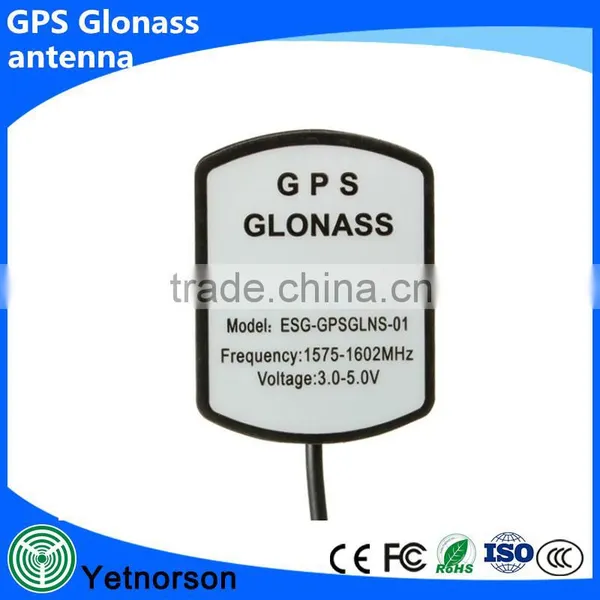

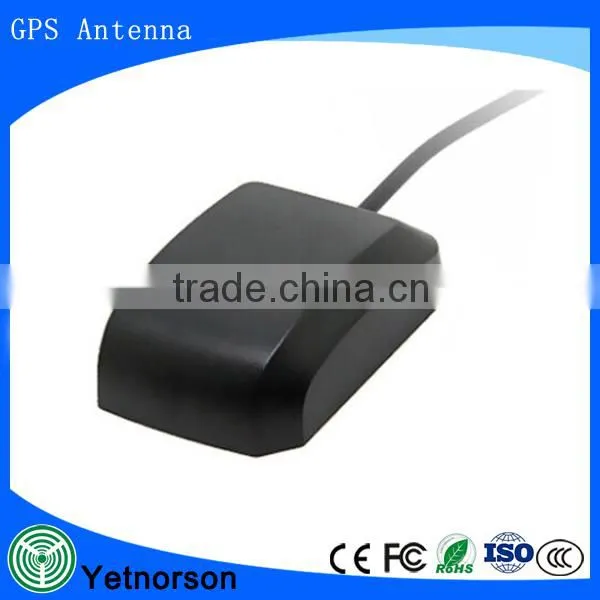

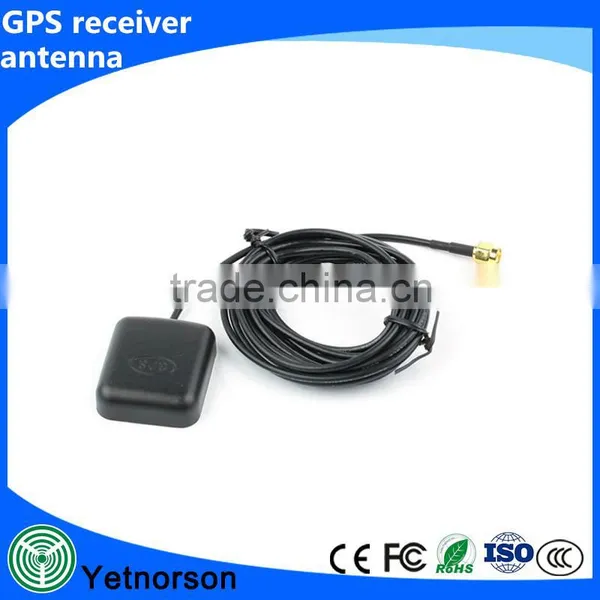

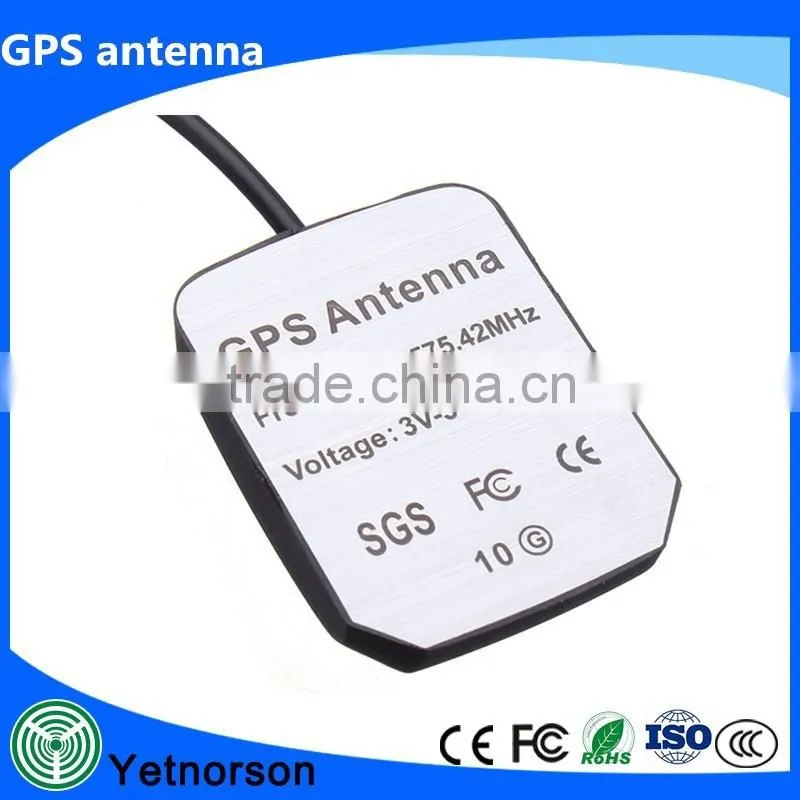

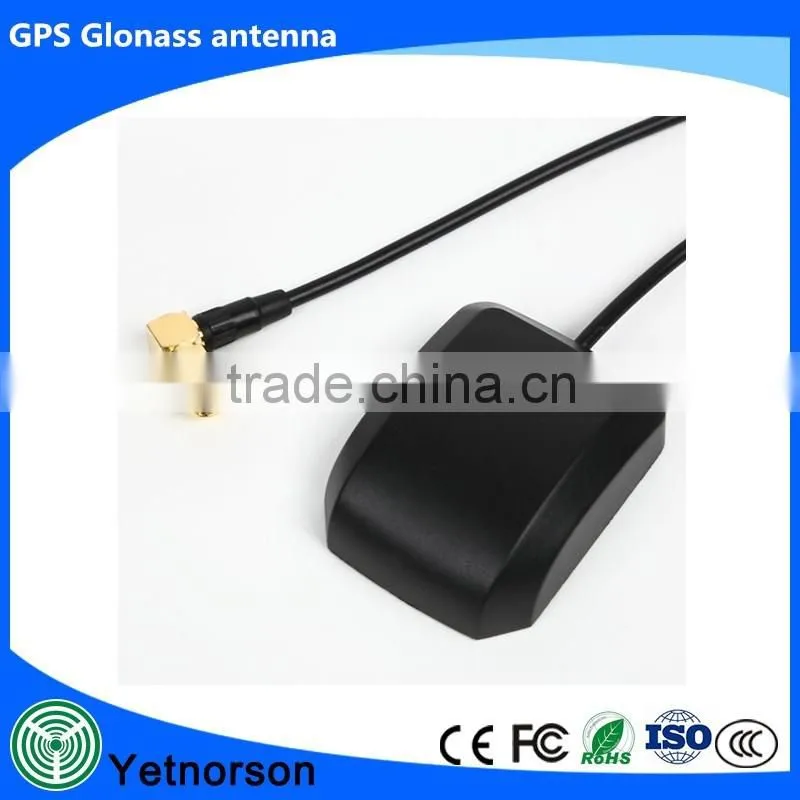

 -Product pictures of GPS Antenna Car with Two Amplification

GPS Antenna Car with Two Amplification DVD Navigation GPS Active Antenna 3m Meters SMA Interface FZ0391GPS Antenna Car with Two Amplification DVD Navigation GPS Active Antenna 3m Meters SMA Interface FZ0391GPS Antenna Car with Two Amplification DVD Navigation GPS Active Antenna 3m Meters SMA Interface FZ0391GPS Antenna Car with Two Amplification DVD Navigation GPS Active Antenna 3m Meters SMA Interface FZ0391

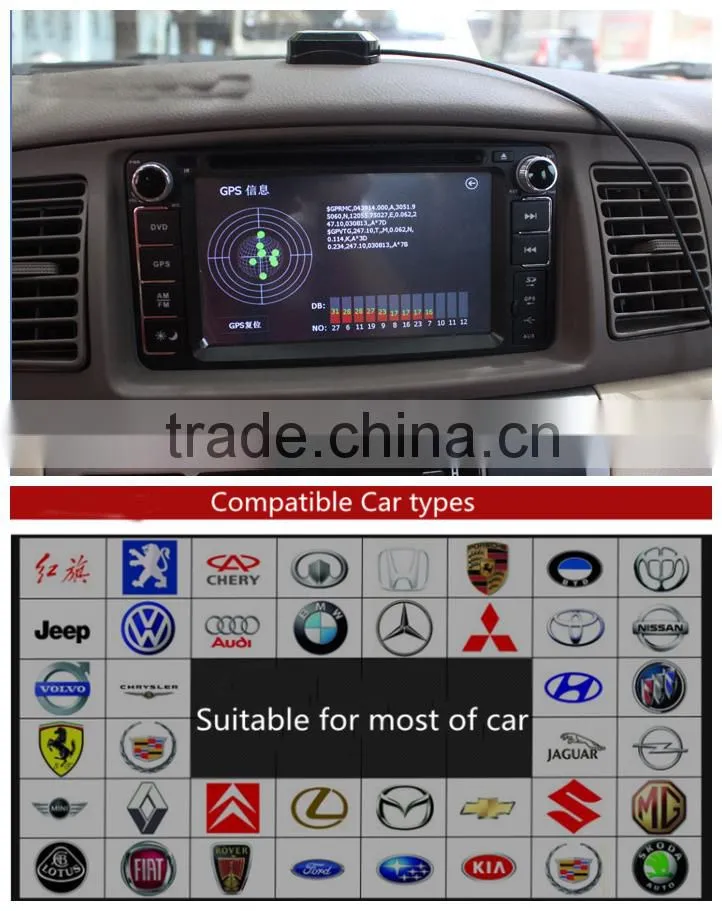

Application of GPS Antenna Car with Two Amplification

GPS Antenna Car with Two Amplification DVD Navigation GPS Active Antenna 3m Meters SMA Interface FZ0391

Fitment:
For Skoda Columbus;
For VW RNS510(MFD3);
For VW MFD2(RNS2)Golf 5 / Golf Plus / Jetta / Passat / T5 / Touran / Touareg / Mutivan;
For Mercedes Comand Systems W209 /W211/ W219 Comand APS and APS50
For AUDI MMI (A6 4F, A8 4E);
For Audi RNS-E(DVD Navigation)A3 / A4 / A6 / TT
Package includes: 1 x GPS antenna



Production of GPS Antenna Car with Two Amplification

GPS Antenna Car with Two Amplification DVD Navigation GPS Active Antenna 3m Meters SMA Interface FZ0391





Company Information




We excute strict quality control system, begin with the raw material to the final finished goods inspection and packgaing, we have professioanl QC to check every step, we make sure that the customers get the well packed and workable goods.


Signal get us get closer with each other. Welcome to inquiry us.



Payment & Shipment &Lead Time

GPS Antenna Car with Two Amplification DVD Navigation GPS Active Antenna 3m Meters SMA Interface FZ0391



































Payment Term
T/T/Western union/Paypal/Escrow/MoneyGram
As for samples, 100% full payment before production
As for official order, 30% deposit and 70% balance paid before delivery

Shipment
DHL/Fedex/UPS/TNT/EMS

Lead Time
3-5 working days for samples, 6-9 working days for bulk order





Certification

Quality is essential to both of us, we believe that High quality, Low price,Mutual benefit will be good basis of our cooperation!!!
If you have any question, please feel free to contact us.





Why choose us ?

1.OEM & ODM are warmly welcome

2.Good service and delivery on time

3. high gain with luxury design

4. several years manufacturing experience








If You have Any Questions, Feel Free to Contact me



welcome to inquire,any questions and request, please feel free to contact with me!
