GPS Fakra Navigation Antenna Compatible With Audi VW Porsche BMW GM CCheve Toyota

Name: GPS Fakra Navigation Antenna Compatible With Audi VW Porsche BMW GM CCheve Toyota
Brand: Yetnorson
Availability: InStock

FOB Price

US$ 1.9 - 2.9 / Piece

10 Pieces(Min. Order)

Port Shenzhen
Payment TermsT/T L/C D/P D/A Money Gram Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	Yetnorson
Model Number	YNX-PHS-GPS-Y017	Car Make	GPS antenna for car
Frequence Range	1575.42mhz/1602mhz	Gain(dB)	28dB±3dB
Cable Length	3000mm OR 5000mm

Packaging Details

One product with one PE bag packaging of internal gps antenna

Product Description

GPS fakra navigation antenna Compatible with Audi VW Porsche BMW GM CCheve Toyota

Key features of GPS fakra navigation antenna

Help your GPS to get stronger signal

Picks up your position rapidly
Easy to install: this antenna has a magnetic base which can adhere to any metal surface
Ready to plug in and use

Condition: Brand New
Center Frequency: 1575.42MHz
Wire Length: 3 meter cable, RG174
V.S.W.R 1,5dB
Voltage: 3V-5V
Weight : 65g
Color: Black
The Magnetic base Size: 48mm x 37mm x 15mm (Length x Wide x High)
Working Temperature: -40 ~ +85
Impedance: 50 ohm
100% Waterproof

Specification of GPS fakra navigation antenna

Electrical Specification
Frequency Range	1575.42MHZ±1.023MHZ/1602mhz
Bandwidth	10MHz
Gain	28dbi
VSWR	≤2
DC Voltage	3-5V
Noise Figure	≤1.5
Nominal Impedance	50Ω
Polarization	RHCP
Max. Power	50W
Mechanical Specification
Cable Length	3M
Connector	Fakra/SMA/SMB/MCX/MMCX/BNC/USB/3.5mm Jack plug (Optional)
Mounting	magnet
Temperature	-40°C~+60°C
Humidity	95%~100%RH
Waterproof	IP65
Housing	Black

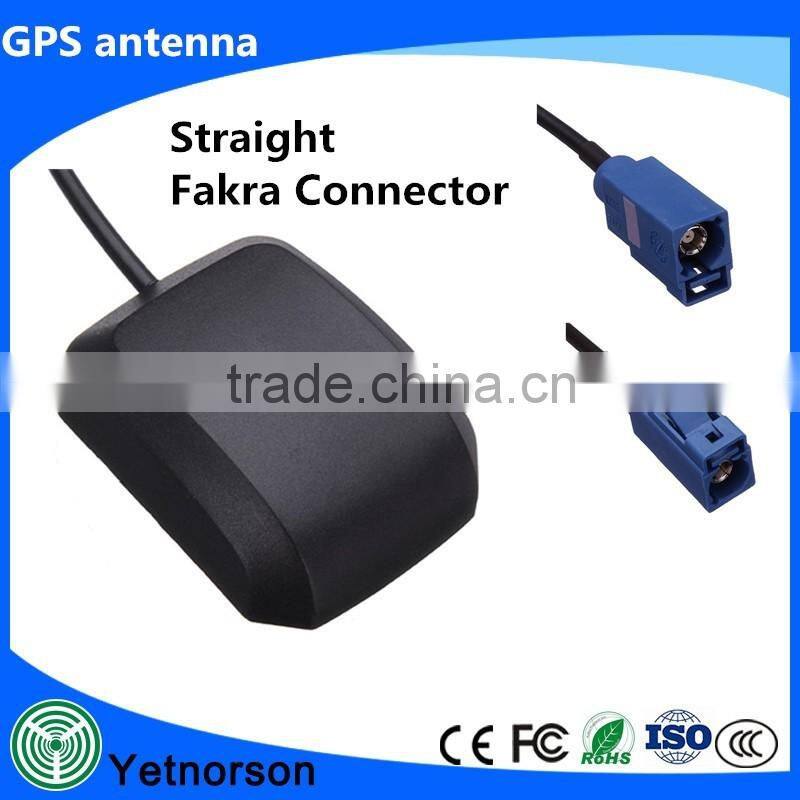

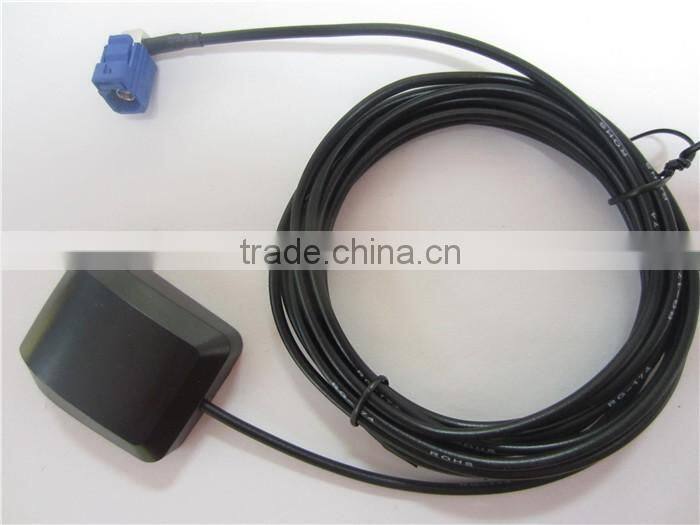

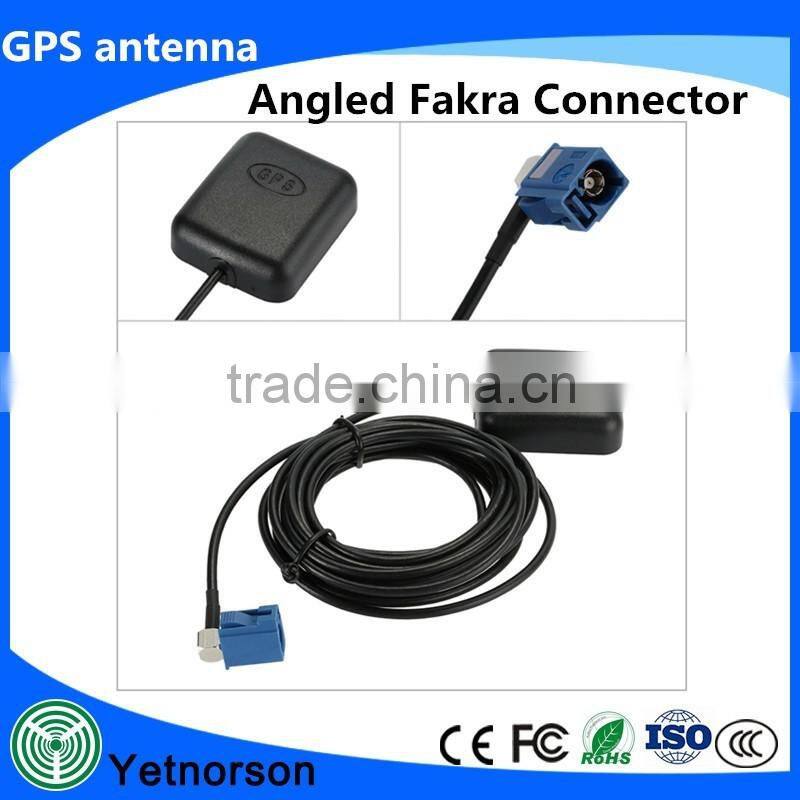

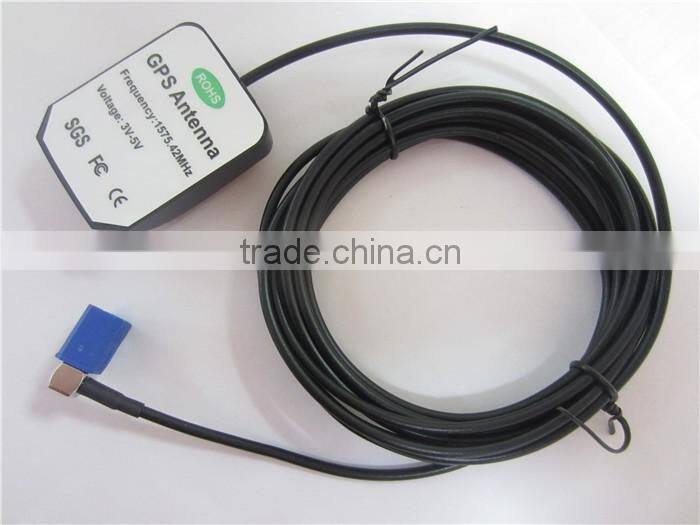

-Product pictures of GPS fakra navigation antenna

Application of GPS fakra navigation antenna

Fitment:
For Skoda Columbus;
For VW RNS510(MFD3);
For VW MFD2(RNS2)Golf 5 / Golf Plus / Jetta / Passat / T5 / Touran / Touareg / Mutivan;
For Mercedes Comand Systems W209 /W211/ W219 Comand APS and APS50
For AUDI MMI (A6 4F, A8 4E);
For Audi RNS-E(DVD Navigation)A3 / A4 / A6 / TT
Package includes: 1 x GPS antenna

Production of GPS fakra navigation antenna
