Specifications
Punching machine1. High speed and precise
2. Highly reducing the energy cunsumption and labor cost
3. Easy operation

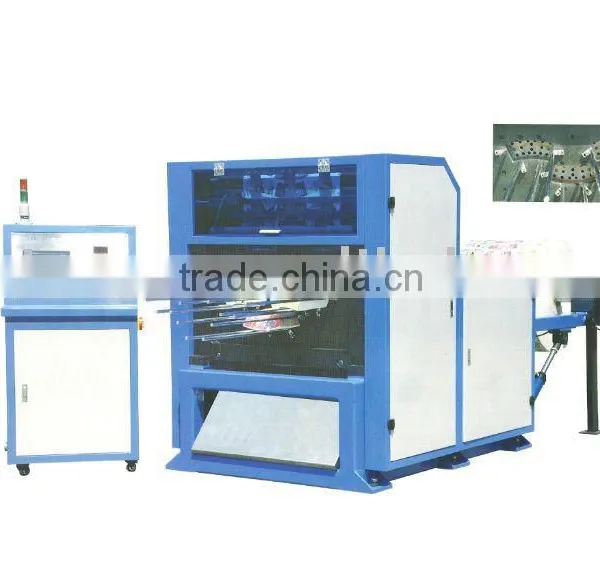

JCQ850 HIGH SPEED AUTOMATIC PUNCHING MACHINE
Features:
1. This punching machine adopts automatic punching technology and combines with rolling paper slitting, die cutting and stripping functions to make samples directly instead of traditional slitting process, which greatly reduces the energy consumption and labor cost and intensity.
2. The adoption of PLC system and LCD man-machine interface make the whole working process automated. The parameters of working condition and faults will be dynamically displayed on interface which achieve the intelligent operation.
3. Electro-optical tracking and automatic compensation technology brings the advantages of feeding smoothly, high precise positioning and paper delivered neatly. It is an ideal equipment for the disposable paper bowl and paper cup.
Technical specifications:
Cutting style |
Punching(For roll paper) |
Cutting speed(times/min) |
220-280 |
Paper weight(gsm) |
125-350 |
Paper width(mm) |
360-850 |
Diameter of roll paper(mm) |
<1500 |
Feeding speed(m/min) |
>35 |
Compressed air |
0.2m3/min, 0.5Mpa |
Length of guide roll surface(mm) |
950 |
Mainframe power(kw) |
4 |
Total power(kw) |
6 |
Weight(t) |
8 |
Mainframe dimension(mm) |
2900x1400x1700 |
Electrical box dimension(mm) |
700x700x1350 |
Environmental temperature(degrees) |
-1~35 |
Air relative humidity |
<85% |
Voltage fluctuation of power supply |
<±10% |
No flammable, explosive, corrosive materials and violent shock in surrounding medium. | |
