Specifications
Die cutting machine1. Compact structure with high stability
2. High precise and efficiency
3. Perfect result

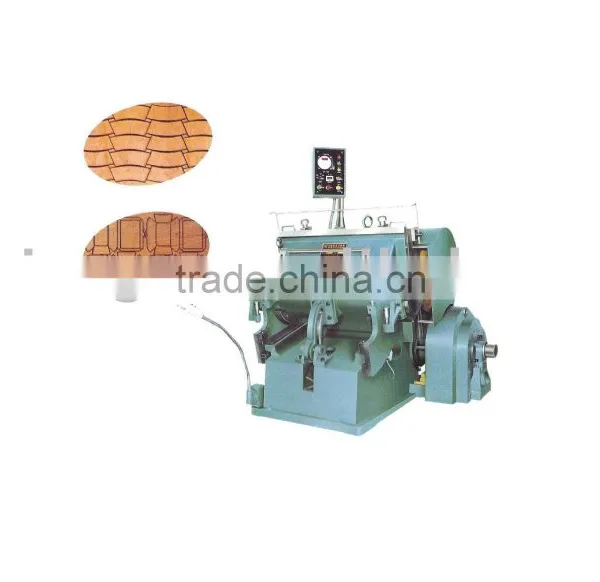

PYQ202C DIE CUTTING MACHINE
Application:
This machine is for various of popular paperboard, corrugated paper, plastic piece, and leather products. It's suitable for printing, packaging, decorating and plastic process.
Features:
1. The mainframe adopts high grade material with high intension.
2. Single-plate magnetic clutch is sensitively and reliable, so the operating height is reasonable and the press shelf moving angle is big.
3. Electric system is designed according to IEC standard with single press cutting, continuously press cutting and time-delay functions.
4. The security system is reliable.
Technical specifications:
Model |
PYQ-202C |
Press effective area(mm) |
930x670 |
Speed |
23±2 |
Press line length(mm) |
<25000 |
Power(kw) |
4 |
Weight(kg) |
3000 |
Dimension(mm) |
1850x1650x1700 |
