Specifications

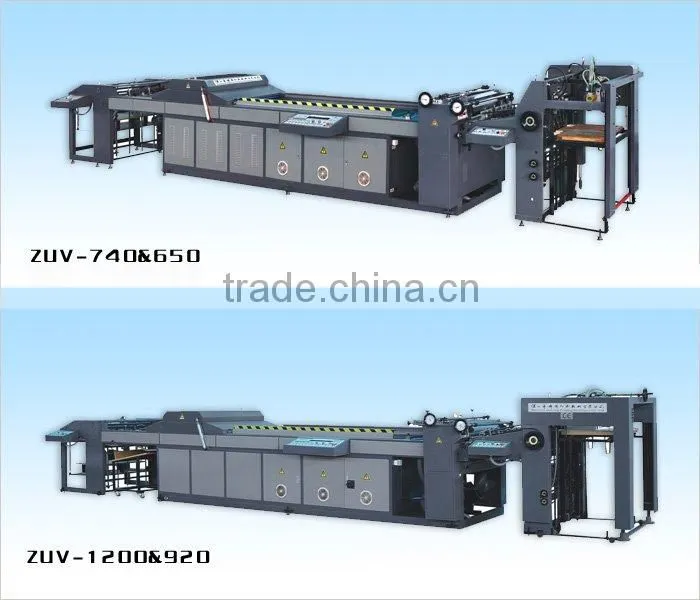

ZUV Series Full Automatic High-speed Dual Purpose Coating MachineZUV Series Full Automatic High-speed Dual Purpose Coating Machine
Features:
1.Safety operation: European CE and American UL certified
2.High efficiency: high-speed feeder, continuous paper feeding and delivery without stopping the machine, open-type pneumatic curing box.
3.Low paper waste rate: machine stops automatically when double sheets or sheets rolled.
4.Economic oil consumption: reverse running can control oil to make paper surface much thinner.
5.Wide paper range: ,micro-computer controlled air knife system for paper weight 80-600 g/m².
6.Optional: PLC control system
Technical specifications
Model |
ZUV-650II |
ZUV-740II |
ZUV-920II |
ZUV-1200II |
Max Paper Size(mm) |
650 × 520 |
740 × 540 |
650 × 920 |
780 × 1080 |
Min Paper Size(mm) |
250 × 330 |
280 × 400 |
307 × 440 |
307 × 440 |
Max Speed(sph) |
5000 |
5000 |
5000 |
5000 |
Power(kw) |
30 |
31 |
37 |
43 |
Paper Weight(g/ sqm ) |
80-600 |
80-600 |
80-600 |
80-600 |
UV lamp |
3 × 5.6kw |
3 × 6kw |
3 × 8kw |
3 × 9.75kw |
Weight(t) |
2.6 |
2.8 |
3.1 |
4.1 |
Measurement(mm) |
9000 × 1300 |
9000 × 1380 |
9000 × 1580 |
9000 × 1800 |
× 1600 |
× 1600 |
× 1600 |
× 1600 |
