Specifications
1.Water glue film laminating machine.2.Oil glue film laminating machine.
3.Thermal film laminating machine.
Film laminating machine
Applications:

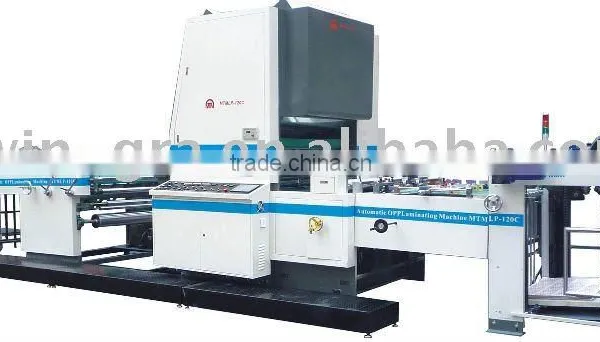

The film laminating machine is ued to laminate on the surface of printed sheet has been widely used in books, playbill, color box, and handbag. The new type MTMLP-120C water-based OPP Laminator is integrated the newest technology by Modern Top Company. It is triple-purpose wet & dry laminator, which suits water-based glue, oil-based glue and thermal film. Its a kind of machine features high speed and saving electricity
Features:

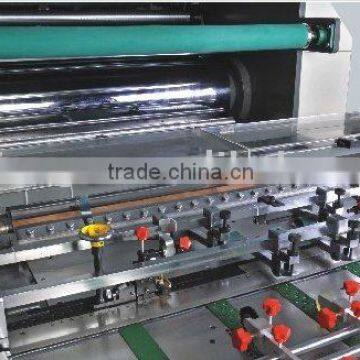

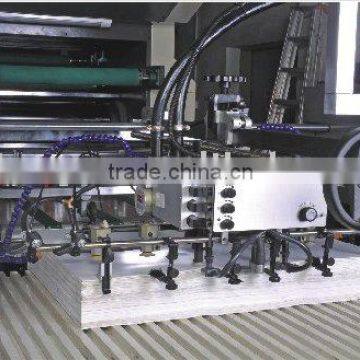

1.Feeder: Adopts imported high-speed feeder head (250pcs/min) with high accuracy. Improved conjugated cam structure to ensure stability under high speed. Stepless feeding speed variation device to adapt to different sheet sizes. Feeding table equipped with suction belts
2.Pressing unit: Mirror pressing cylinder hard chrome coated adopts heated oil circulation heating system. It features quick-heating, automatic temperature control and even temperature distribution. This is good for energy-saving. Oil pressure cylinder controlled impression on-off gives even pressure over the nip area of the pressing cylinder and impression roller, which is with special hard rubber coated. Film unwinding is controlled by tension controller keep constant film tension under high speed.
3.Coating system: Glue application uses ceramic anilox with independent driving motor. This is good for stable even oil coating and easy adjustment to glue application volume. Circulation oil supply system One pneumatic oil well pump and one electric oil well pump and stainless oil drought are available for water-based and oil-based glues. Pneumatic film pressing roller for easy operation
4.Drying system: Big diameter drying cylinder introduces water heating system, which features quick-heating, better temperature control, stable temperature, full area heat spread and high heat quantity. When machine running, it can dry the laminated sheet quickly without excursion and shrink. It is suitable for drying water-based glue
5.Film unwinding: Air shaft for film reel loading; Magnetic-powder brake to keep constant film tension during machine operation.
6.Film disc blade cutting device: The machine use disc blade cutting system. Six sets disc blades. Fine adjustment is available with the cutting disc blade, which can adjust the rpm of it to match better speed of the sheet after being laminated.
7.Automatic delivery: Pneumatic side and rear joggers; Photo-electric sensor controlled auto delivery table descending; Suction belt for more stable sheet transmission to delivery table
8.Electrical system: Imported electrical components are used. Mitsubishi PLC controls the machine running. WEINVIEW man-machine interface touch screen available for running status indication and trouble indication to ease machine operation and maintenance. Danish Danfoss frequency converter; German Moller contactors; Janpanese OPTEX sensors
Technical specificatioins:
Model |
MTMLP-120C |
Max.Sheet size: |
1200X900mm |
Min.Sheet size |
350x350mm |
Max.Lamination width |
1200mm |
Substrate: |
80-600gsm |
Film thickness |
12-25μm/miron |
Operation speed |
10-70mmin |
Total capacity |
88KW |
Power supply |
380V/50Hz 3 phase 5 wire system |
Machine dimension(LxWxH) |
11913X2540X3350mm |
