Automatic Flute Laminating Machine
US$ 50,000 - 70,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Application:
Other, packaging
Packaging Type:
Other, sea worthy packages
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Application
Other, packaging
Packaging Type
Other, sea worthy packages
Packaging Material
Wood
Automatic Grade
Automatic
Driven Type
Mechanical
Power
15kw
Place of Origin
Shanghai, China
Brand Name
Towin
Model Number
FMZ-1300
Specifications
Flute laminating machine1.Laminating machine for carton & corrugated board
2.Laminating for carton & carton
3.High efficienc

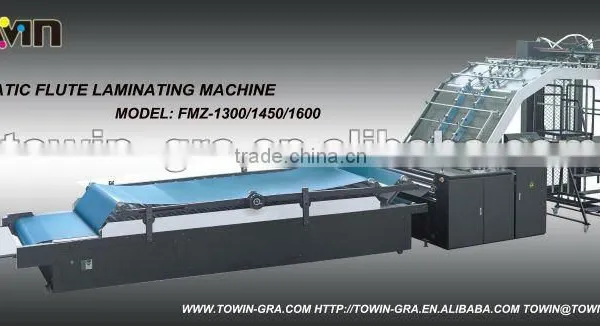

Flute laminating machine
Applications
The machine is used for lamination between bottom carton sheet and top carton sheets or A/B/C/D/E flute corrugated board and also the lamination between both corrugated boards
Features
- Automatic top and bottom sheet feeding with pre-load device for top sheet;
- Man-machine interface with PLC gives easy operation and trouble shooting indications during machine running. Safety covers are put into consideration during machine design for operator safety.
- Key bearings and electrical components adopt famous international brand, which ensures high running and control accuracy.
- Elastic front lay ensures bottom sheet does not exceed the top one. The front-and-back overlapping margin of top and bottom sheets is adjustable.
- The machine is suitable for lamination between bottom carton sheet over 350gsm and top carton sheets or A/B/C/D/E flute corrugated board and also the lamination between both corrugated boards.
Technical specifications
Model |
FMZ-1300 |
FMZ-1450 |
FMZ-1600 |
Max.sheet size |
1300×1100mm |
1450×1100mm |
1600×1200mm |
Min.sheet size |
400×400mm |
400×400mm |
400×400mm |
Total electric consumption |
15kw |
15kw |
15kw |
Substrate of top sheet |
≥200GSM |
≥200GSM |
≥200GSM |
Laminating tolerance |
±1.5mm |
±1.5mm |
±1.5mm |
Max.speed |
5000sph |
5000sph |
5000sph |
Machine weight |
5.8 tons |
6.5 tons |
7.2 tons |
Overall Dimensions |
11500×1900×2500mm |
11500×2100×2500mm |
11500×2450×2500mm |
