Help CenterAutomatic Water-base Laminator
Related Products
Specifications
Automatic Water-based Laminator1.For Water-based Film laminating
2.High Performance
3.Cost Effective

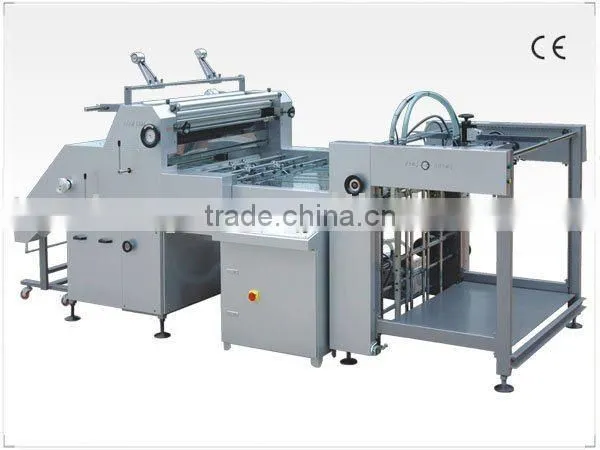

SZFM-1100 automatic water-base laminating machine is an ideal processing equipment for paper surface which is developed upon present needs of printing field and long-term of experience in laminator production. The machine integrates mechanics, electrics, pneumatics and photoelectricity, and owns several patent techniques. If compared with traditional laminating machine, the machine has the features of high working efficiency, stable running and more humanization, and saves users’ producing costs and improves production efficiency.
Configuration:
1. Automatic paper feeder adopts oil-free vacuum pump to feed paper automatically.
2. Automatic paper feeding system is equipped with no paper protector, paper break protector and paper superposing protector, which are controlled by photoelectric and mechanical systems. When no paper, paper break or paper superposition occurs, the machine will stop automatically for self-protection.
3. Conveying table is furnished with air aspirator, side lay and front lay etc. to guarantee paper conveying and overlap stable and regular.
4. Automatic running includes automatic paper feeding, laminating and winding.
5. Glue supplying system supplies and recycles water-base glue automatically.
6. Dip coating saves glue and homogenizes coating much better.
7. Film cutter cuts film width to make it meet paper size. The cut film is left on the film release spindle.
8. Film perforating wheel perforates film edge for the automatic cut of laminated paper.
9. Automatic paper winder rolls up laminated paper. Winding speed is adjustable upon applications.
10. Phillip UV drying lamp is equipped for smooth working in humid and cold climate.
11. SCHNEIDER frequency converter is equipped for infinitely variable speed, and the operator can change the machine’s speed easily and guarantee the machine’s running stable.
12. The winded paper is supported by a trolley, and then put on cutting machine for quick automatic cut, or cut by manual work.
Technical Parameters
Model |
SZFM-1100 |
Max Paper Size |
1040*780mm |
Min Paper Size |
350*440mm |
Paper Thickness |
80-400gsm |
Max Laminating Speed |
60m/min |
Main Power |
8kw |
Total Weight |
2000kg |
Overall Dimensions |
3800*1750*1700mm |
