Manual Laminator1.for Thermal Film Laminating.
2.Double Side Laminator
3.Compact Structure

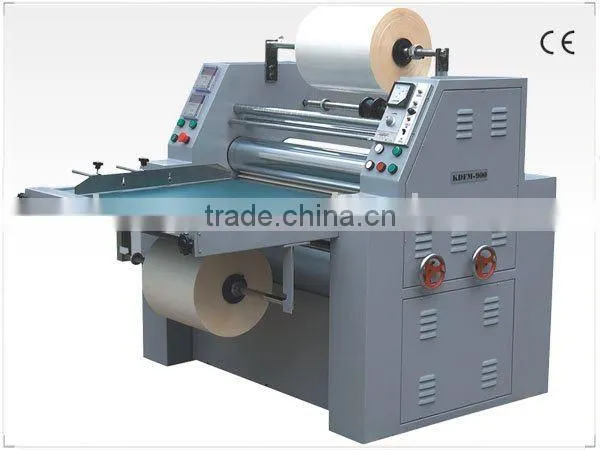

KDFM series of manual laminating machine saves space occupation so much for its compact design. One-piece forming structure makes the machine run more stably, and lengthens the machine’s lifetime. This model adopts BOPP pre-glued film for single-side and double-side of lamination. It is widely used for the lamination of certificates, documents, drawings, advertisements and books etc. The filmed products are waterproof, durable, of clear picture and good spatial effect etc.
Configuration:
1. One-piece construction design makes the machine run more stably, and lengthens the machine’s lifetime.
2. Manual paper feeding.
3. Regulating plate can be adjusted easily to regulate manual paper feeding.
4. Two heating rollers equipped are for one-side and double-side of lamination.
5. Heating rollers are equipped with built-in electrical tube heater, which raises temperature quickly. And temperature is adjustable upon requests.
6. Mechanical pressuring system provides pressure for lamination. And the pressure is adjusted by manual wheel.
7. Film cutter cuts film width to make it meet paper size. The cut film will be winded by a film winder.
8. Laminated paper is rolled up automatically by the winding spindle. Winding speed is adjustable upon requests. Winded paper will be cut by manual work.
Technical Parameters
Model |
KDFM-720 |
KDFM-900 |
KDFM-1000 |
KDFM-1200 |
Max Laminating Width |
600mm |
780mm |
880mm |
1020mm |
Max Laminating Speed |
20m/min |
20m/min |
20 m/min |
20 m/min |
Laminating Temperature |
60-130°C |
60-130°C |
60-130°C |
60-130°C |
Gross Power |
3.85kw |
4.55kw |
4.75kw |
5.75kw |
Total Weight |
260kg |
380kg |
480kg |
600kg |
Overall Dimension |
1150*1100*1400mm |
1450*1100*1400mm |
1550*1100*1450mm |
1750*1250*1450mm |
