Semi-automatic flute laminator

Specifications

Laminator
1. Suitable for paparboard to A/B/C/E/F flute corrugated cardboard
2. High precise
3. Easy to operate

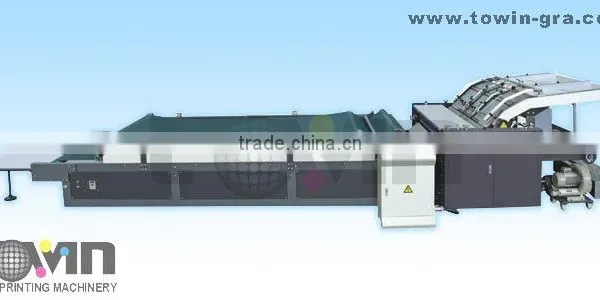

FMBC SERIES SEMI-AUTOMATIC FLUTE LAMINATOR (SINGLE LABOR)

Features:

1. Automatic substrate feeding and manual feeding from side.

2. Front positioning is flexible so that bottom sheet never exceeds the top sheet, and the front-rear lamination between bottom and top sheets is adjustable.

3. It's suitable for the laminating of cardboard to A/B/C/D/E/F and double corrugated cardboard.

Technique Specifications:

Model:	FMBC-1000	FMBC-1300	FMBC-1450	FMBC-1600
Max. Sheet Size(mm)	1000X1100	1300X1100	1450X1100	1600X1100
Min. Sheet Size(mm)	320X450	320X450	320X450	320X450
Total power(kw)	7	7	7	11.5
Speed(m/min)	0-60	0-60	0-60	0-60
Weight(t)	3.2	4.2	4.8	5.5
Dimension(mm)	6600x1530x1400	6600x1830x1400	6600x2080x1400	6600x2300x1400
