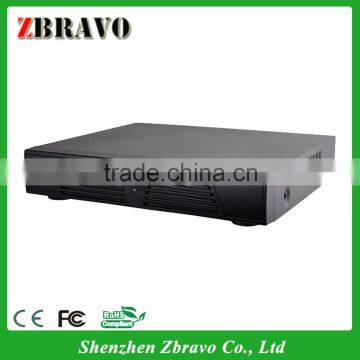

Network Mobile online view 4Channel 960H H.264 Cloud P2P DVR Video Recorder XM Solution

System

Model

Z-DVR1004AR

Resolution

4CH 960H

Operation System

Embedded LINUX

System Resource

Multiple channels realtime recording,playback,network operation and USB backup

Screen

User Interface

GUI,on-screen menu tips

Screen Display

1/4 screen

Video

Standard

PAL(625 line,50f/s); NTSC(525 line,60f/s)

Compression

H.264(High Profile)

Display Quality

TV: D1   VGA: High definition

Playback Quality

D1/Half-D1/CIF/QCIF

Encode Capacity

100/120fps 960H

Decode Capacity

50/60fps 960H

NVR Mode

Non-support

Motion detect

Zones:192(16*12)detection zones,Sensitivity:1-6(6 is highest)(only local channel)

Audio

Compression

G.711A

Talk back

Support

Record
    &
Playback

Record Mode

Manual>Alarm>Video Detection>Timing

Local Playback

1~4 channels

Record Search

Time/Date,Alarm,Motion Detection & exact search(accurate to second)

Storage
    &
Backup

HDD Occupation

Video: CIF 4~5G/day/channel, D1 8~10G/day/channel

Audio: 691.2M/day/channel

Record Storage

Local HDD,Network

Backup Mode

Network/USB movable HDD

Interface

Video Input

4ch BNC(1.0Vp-p,75Ω)

Video Output

1ch BNC(1.0Vp-p,75Ω),1ch VGA

Mobilephone View

Support

Audio Input

1ch RCA(200-2800mV,30KΩ)

Audio Output

1ch RCA(200-3000mV,5KΩ)

Alarm Input

Not

Alarm Output

Not

Network

RJ45 10M/100M

PTZ

Support

USB

2 USB2.0

HDD

1 SATA(maximum support 1 x 4T)

Others

Power Supply

12V/3A

Power Consumption

<5W(not include HDD)

Working Temperature

0°C-+55°C

Working Humidity

10%-90%

Atmosphere Pressure

86kpa-106kpa

Dimension

260*234*45mm

Weight

2.1KG
