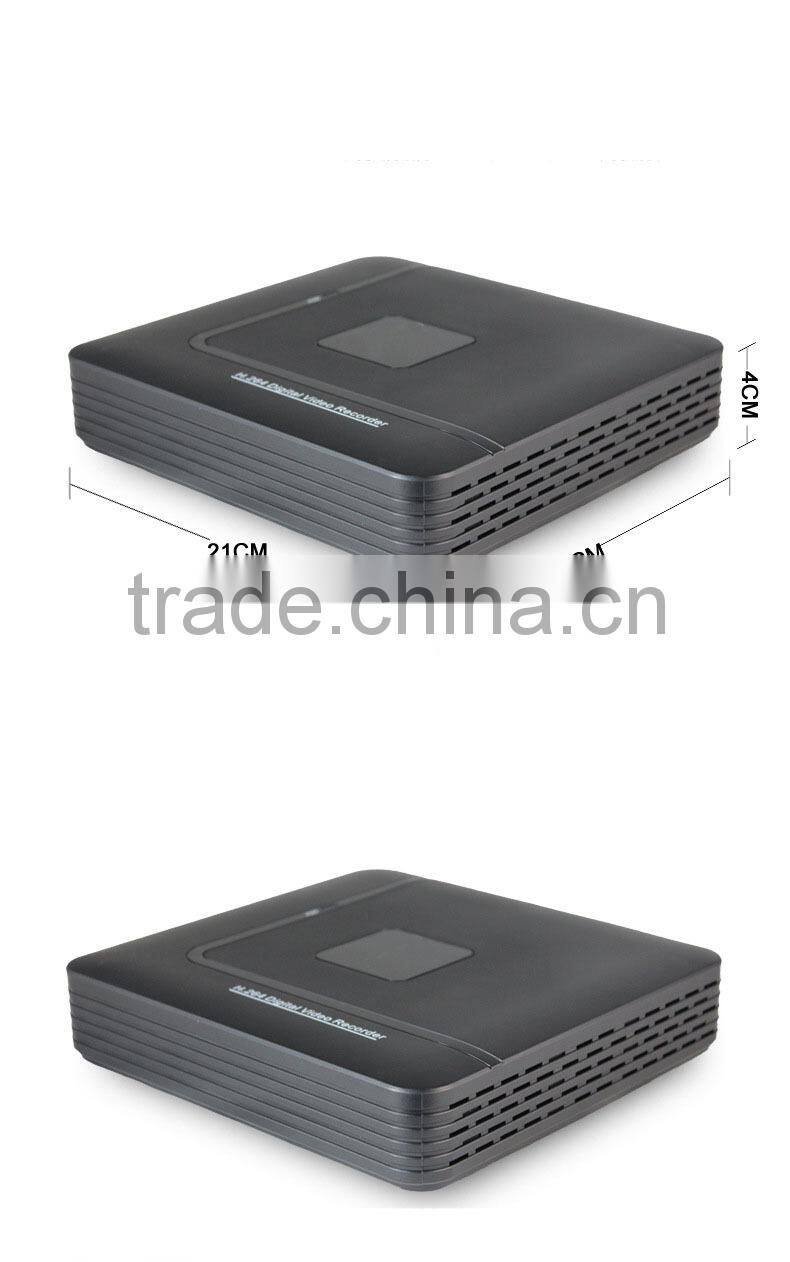

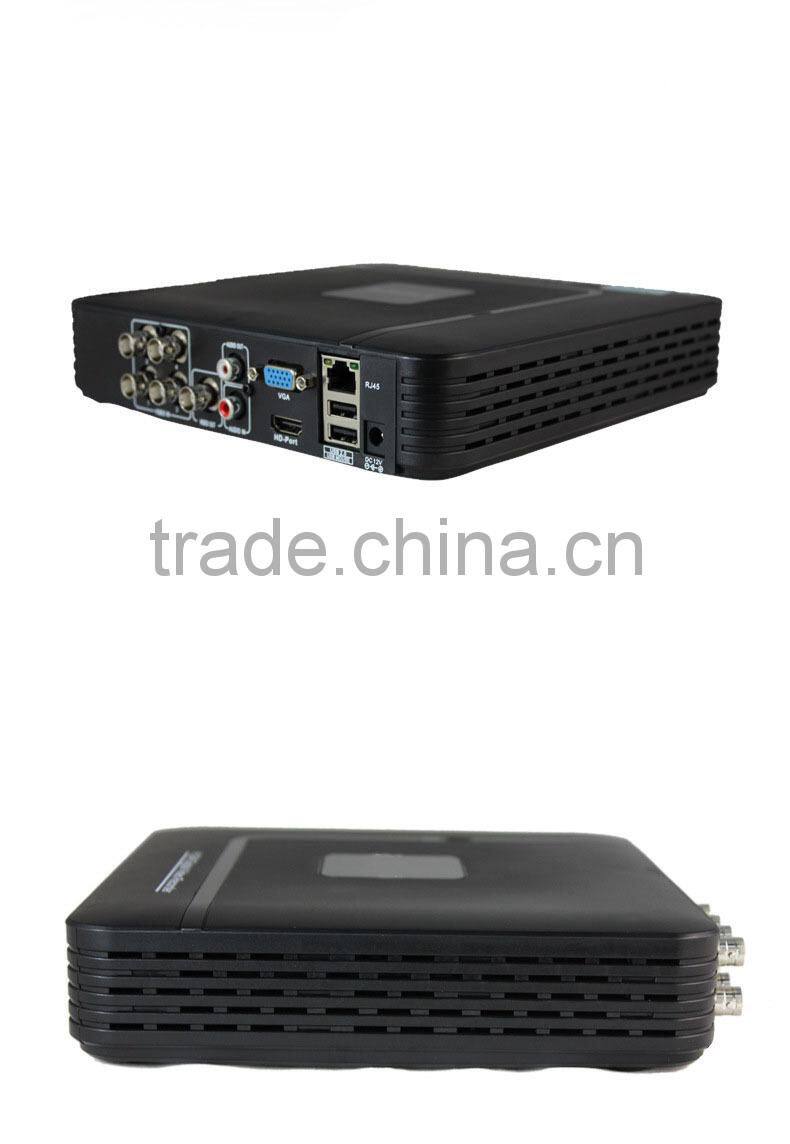

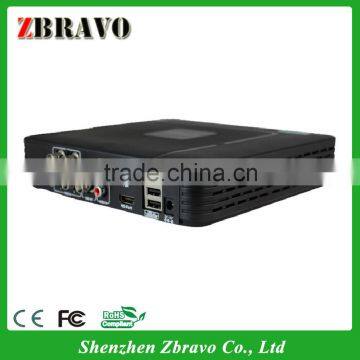

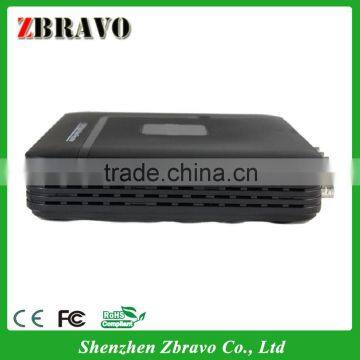

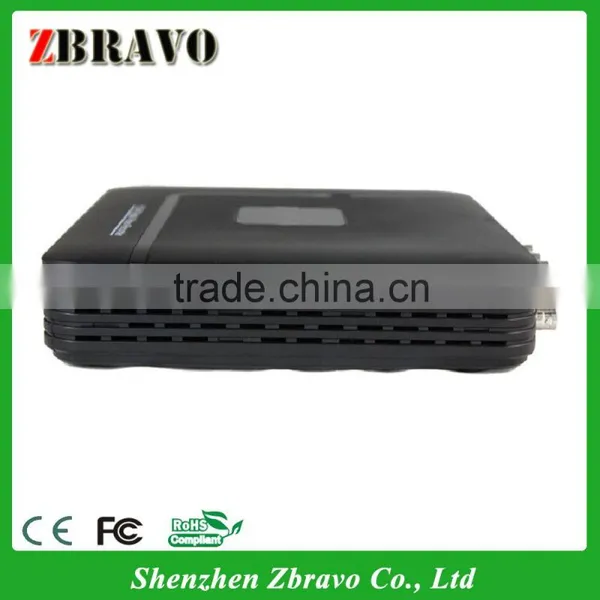

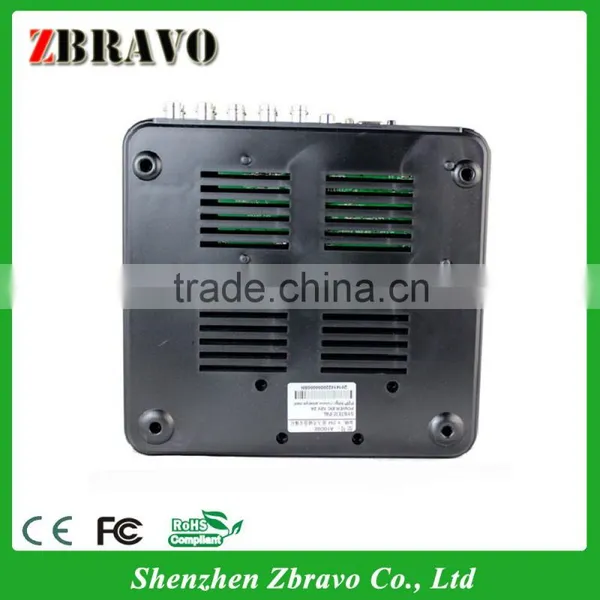

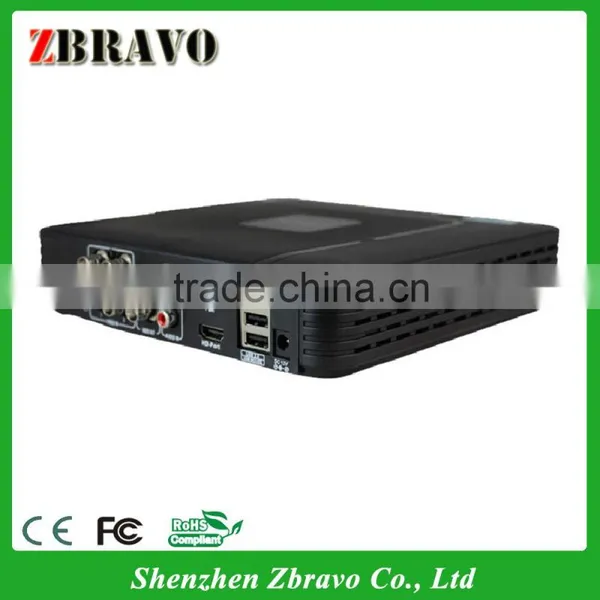

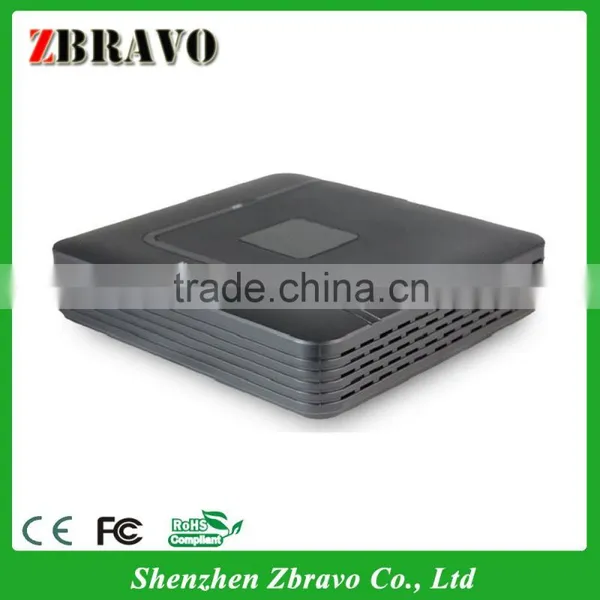

H.264 Cloud Surveillance DVR Security System HDMI D1 4CH DVR

Name: H.264 Cloud Surveillance DVR Security System HDMI D1 4CH DVR
Brand: ZBRAVO
SKU: 115355287
Availability: InStock

US$ 20 - 35 MOQ: 1 Piece

Key Specifications

Place of Origin:

China

Brand Name:

ZBRAVO

Model Number:

Z-DVR1004

Shenzhen Zbravo Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen / Hongkong

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin China

Brand Name ZBRAVO

Model Number Z-DVR1004

H.264 Cloud Surveillance DVR security system HDMI D1 4CH DVR

Model : Z-DVR1004
Video compression : H.264
High video quality for live and recording
Graphics & Windows OSD inter face for convenient use
Low bit rate to ensure fast network transfer
Simultaneous live display,record,playback,backup,control and network operation is allowed
Support USB flash driver, USB mobile hard disk and network backup
Supportive for SATA HDD to expand storage up to 3TB
Resolution: 4CH D1
Operation System: Embedded Linux Operation System
Video Standard: PAL / NTSC

System	Model	Z-DVR1004
	CPU	Hi3515C
	Operation System	Embedded LINUX
	System Resource	Multiple channels realtime recording,playback,network operation and USB backup
Screen	User Interface	GUI,on-screen menu tips
Screen	Screen Display	1/4 screen
Video	Standard	PAL(625 line,50f/s); NTSC(525 line,60f/s)
	Compression	H.264(High Profile)
	Display Quality	TV: D1 VGA: High definition
	Playback Quality	D1/Half-D1/CIF/QCIF
	Encode Capacity	100/120fps D1
	Decode Capacity	50/60fpsD1
	NVR Mode	Non-support
	Motion detect	Zones:192(16*12)detection zones,Sensitivity:1-6(6 is highest)(only local channel)
Audio	Compression	G.711A
Audio	Talk back	Support
Record & Playback	Record Mode	Manual>Alarm>Video Detection>Timing
	Local Playback	1~4 channels
	Record Search	Time/Date,Alarm,Motion Detection & exact search(accurate to second)
Storage & Backup	HDD Occupation	Video: CIF 4~5G/day/channel, D1 8~10G/day/channel
	HDD Occupation	Audio: 691.2M/day/channel
	Record Storage	Local HDD,Network
	Backup Mode	Network/USB movable HDD
Interface	Video Input	4ch BNC(1.0Vp-p,75Ω)
	Video Output	1ch BNC(1.0Vp-p,75Ω),1ch VGA
	Loop put	Non-support
	Audio Input	1ch RCA(200-2800mV,30KΩ)
	Audio Output	1ch RCA(200-3000mV,5KΩ)
	Alarm Input	Not
	Alarm Output	Not
	Network	RJ45 10M/100M
	PTZ	Not
	USB	2 USB2.0
	HDD	1 SATA(maximum support 1 x 4T)
Others	Power Supply	12V/2A
	Power Consumption	<5W(not include HDD)
	Working Temperature	0°C-+55°C
	Working Humidity	10%-90%
	Atmosphere Pressure	86kpa-106kpa
	Dimension	L200W210H45
	Weight	1.0KG
