Help CenterMost Economic DVR H.264 Realtime ICloud 4CH Full 960H Digital Video Recorder
Related Products
-
HDMI Stand-alone P2P 4channel D1 Network Hi3515C DVR Recorder Support RS485US$ 20 - 35MOQ: 1 Piece -
Economic 4channel Full 960H DVR ICloud Support Mobile View Digital Video RecorderUS$ 20 - 35MOQ: 1 Piece
-
4channel 960H CCTV Camera System ICloud P2P Analog DVRUS$ 20 - 35MOQ: 1 Piece
-
4channel 960H CCTV Camera System ICloud P2P H.264 Stand-alone Analog DVRUS$ 20 - 35MOQ: 1 Piece
-
4channel D1 P2P Standalone H.264 Real Time 4CH DVRUS$ 20 - 35MOQ: 1 Piece

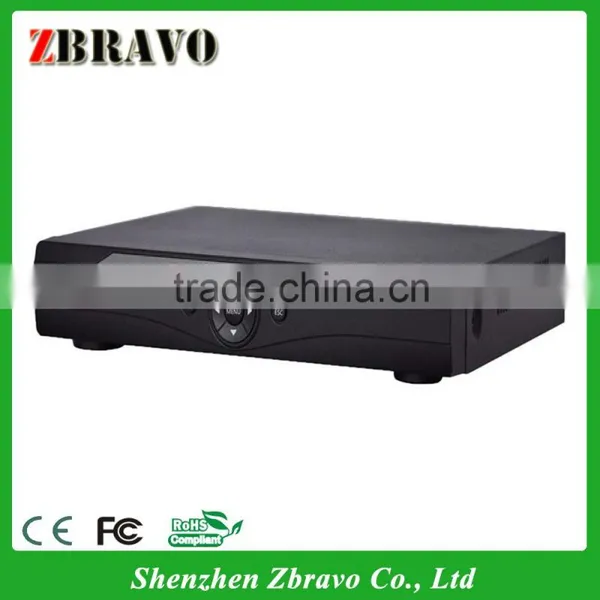

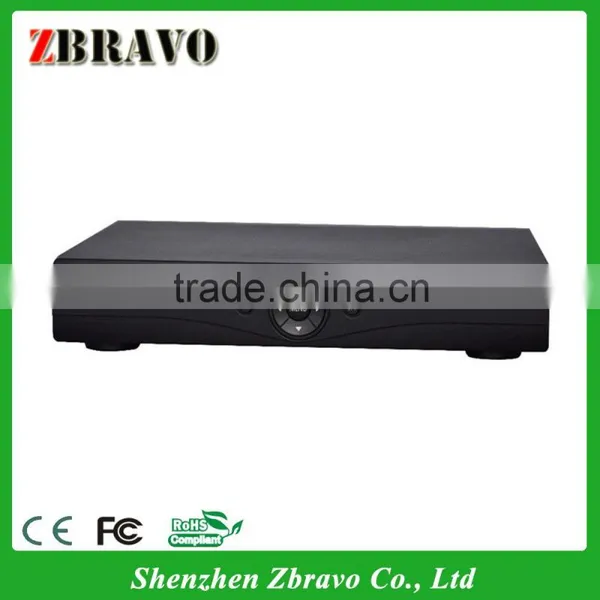

Most economic DVR H.264 Realtime iCloud 4CH Full 960H Digital video recorder
- Use the standard H.264 video compression format stream lower,high quality,longer recording time, taking up less bandwidth resources
- GUI OSD interface,USB Mouse controller,more intuitive,easier to use for user-friendly
- With cloud access technology () you can do remote view by one step without any complicated port forwarding. (P2P)
- Support 4CH 960H recording resolution
- Dual-stream design,network remote view effects and local recording effects parameters can be set separately,independently of each other.
- Hexaplex operation simultaneously:Preview,recording,playback,backup,network live,mobile phone view
- Multiple record mode:Auto,timer,motion and alarm recording mode
- Recording playback support:Normal play,Speed play,Fast back play,Manual single-frame slow play
- Support drag the progress bar can be targeted playback time directly
- Support 4CH playback simultaneously,each channel can be enlarge to full screen
- Support Network function:one IE browser centralized monitoring and CMS Software for multiple DVR
- Support DHCP,DDNS,PPPoE and NTP network service
- Supports remote surveillance up to 10 users simultaneously via the Enternet Explorer web browser
- Support more than 17 kinds protocol of the PTZ control
- Supports Multiple backup mode: USB flash drive,USB hard disk and network backup
- Support pre-alarm recording (before 10 sec),not lose any suspicious screen
- Support Mobile phone remote view by Symbian;Windows Mobile;Android,system;Iphone;Blackberry.
- Support High-Definition VGA output(VGA and BNC can work at the same time)
- Support alarm triggered recording will send alerts matter to the designated email.
- System auto recovery to power after power reconnected,and return to the pre-power-down state
System | Model | Z-DVR7204E |
Resolution | 4CH 960H | |
Operation System | Embedded LINUX | |
System Resource | Multiple channels realtime recording,playback,network operation and USB backup | |
Screen | User Interface | GUI,on-screen menu tips |
Screen Display | 1/4 screen | |
Video | Standard | PAL(625 line,50f/s); NTSC(525 line,60f/s) |
Compression | H.264(High Profile) | |
Display Quality | TV: 960H VGA: High definition | |
Playback Quality | 960H/D1/Half-D1/CIF/QCIF | |
Encode Capacity | 100/120fps 960H | |
Decode Capacity | 50/60fps 960H | |
NVR Mode | Non-support | |
Motion detect | Zones:192(16*12)detection zones,Sensitivity:1-6(6 is highest)(only local channel) | |
Audio | Compression | G.711A |
Talk back | Support | |
Record | Record Mode | Manual>Alarm>Video Detection>Timing |
Local Playback | 1~4 channels | |
Record Search | Time/Date,Alarm,Motion Detection & exact search(accurate to second) | |
Storage | HDD Occupation | Video: CIF 4~5G/day/channel, D1 8~10G/day/channel |
Audio: 691.2M/day/channel | ||
Record Storage | Local HDD,Network | |
Backup Mode | Network/USB movable HDD | |

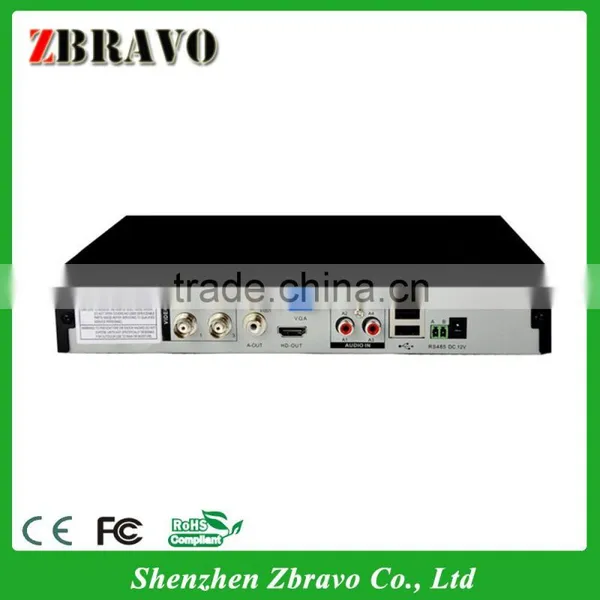

Interface | Video Input | 4ch BNC(1.0Vp-p,75Ω) |
Video Output | 1ch BNC(1.0Vp-p,75Ω),1ch VGA | |
Mobilephone View | Support | |
Audio Input | 4ch RCA(200-2800mV,30KΩ) | |
Audio Output | 1ch RCA(200-3000mV,5KΩ) | |
Alarm Input | Not | |
Alarm Output | Not | |
Network | RJ45 10M/100M | |
PTZ | Support | |
USB | 2 USB2.0 | |
HDD | 1 SATA(maximum support 1 x 4T) | |
Others | Power Supply | 12V/3A |
Power Consumption | <5W(not include HDD) | |
Working Temperature | 0°C-+55°C | |
Working Humidity | 10%-90% | |
Atmosphere Pressure | 86kpa-106kpa | |
Dimension | 260*210*45mm | |
Weight | 2.5KG |
