4Ch Out Door Bullet Camera Kit AHD-M Camer Kit 960P 1.3megapixel CMOS 4Channel AHD Kit

4Ch Out Door Bullet Camera Kit AHD-M Camer Kit 960P 1.3megapixel CMOS 4Channel AHD Kit thumbnail-1
4Ch Out Door Bullet Camera Kit AHD-M Camer Kit 960P 1.3megapixel CMOS 4Channel AHD Kit thumbnail-2
4Ch Out Door Bullet Camera Kit AHD-M Camer Kit 960P 1.3megapixel CMOS 4Channel AHD Kit thumbnail-3
4Ch Out Door Bullet Camera Kit AHD-M Camer Kit 960P 1.3megapixel CMOS 4Channel AHD Kit thumbnail-4
4Ch Out Door Bullet Camera Kit AHD-M Camer Kit 960P 1.3megapixel CMOS 4Channel AHD Kit thumbnail-5
4Ch Out Door Bullet Camera Kit AHD-M Camer Kit 960P 1.3megapixel CMOS 4Channel AHD Kit photo-1
4Ch Out Door Bullet Camera Kit AHD-M Camer Kit 960P 1.3megapixel CMOS 4Channel AHD Kit photo-2
4Ch Out Door Bullet Camera Kit AHD-M Camer Kit 960P 1.3megapixel CMOS 4Channel AHD Kit photo-3
4Ch Out Door Bullet Camera Kit AHD-M Camer Kit 960P 1.3megapixel CMOS 4Channel AHD Kit photo-4
4Ch Out Door Bullet Camera Kit AHD-M Camer Kit 960P 1.3megapixel CMOS 4Channel AHD Kit photo-5
US$ 50 - 100 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OEM
Model Number:
Z-KITAHD6668-960P
Contact Supplier Request Quote Chat Now
Shenzhen Zbravo Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen / Hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name OEM
Model Number Z-KITAHD6668-960P

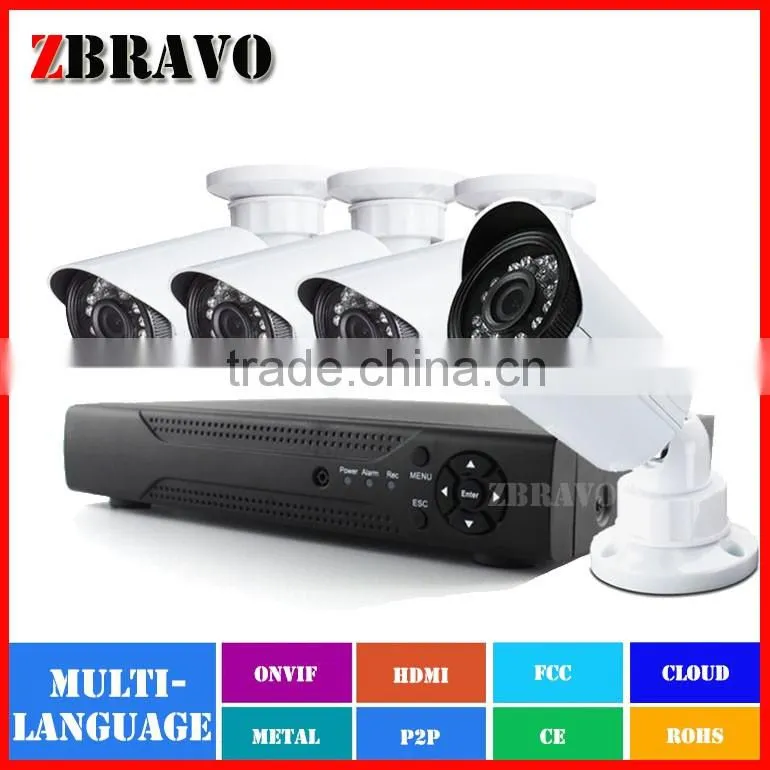

4Ch Out door Bullet Camera kit AHD-M Camer Kit 960P 1.3megapixel CMOS 4Channel AHD Kit



4Ch Out door Bullet Camera kit AHD-M Camer Kit 960P 1.3megapixel CMOS 4Channel AHD Kit



  •   1*4CH AHD DVR(NO HDD)
  •   4*HD AHD Camera
  •   1*USB Mouse
  •   1*CD
  •   1*User Manual
  •   1*Remote Controller
  •   4*20M CCTV Video Cable
  •   1*1 to 5 cable spliter
  •   1*DC12V4A adapter

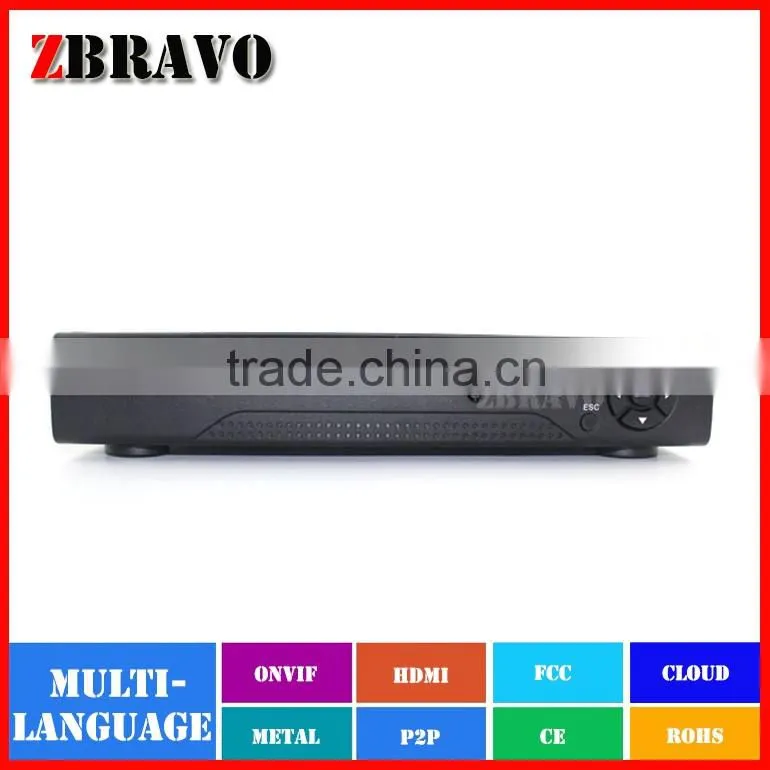

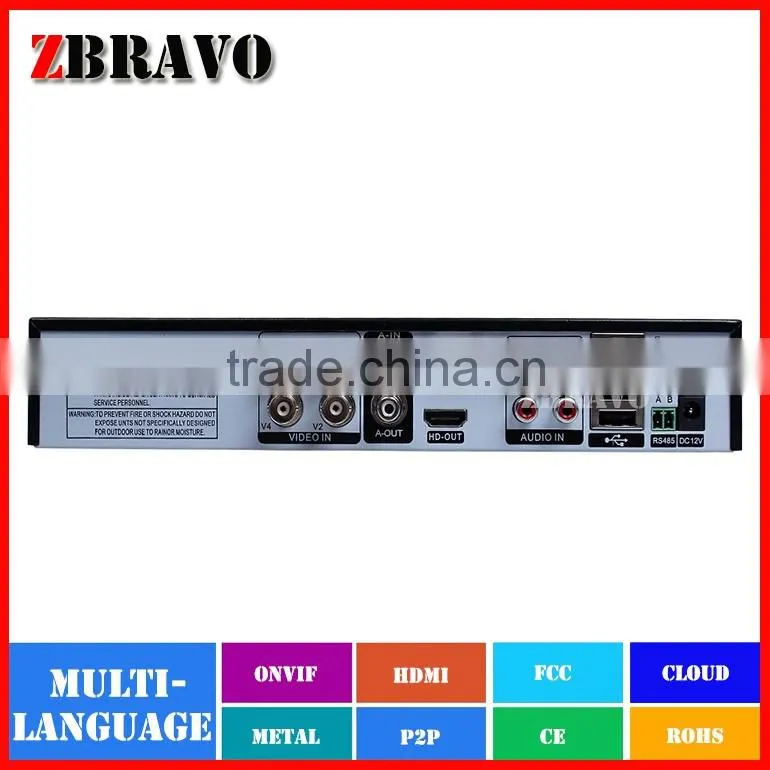

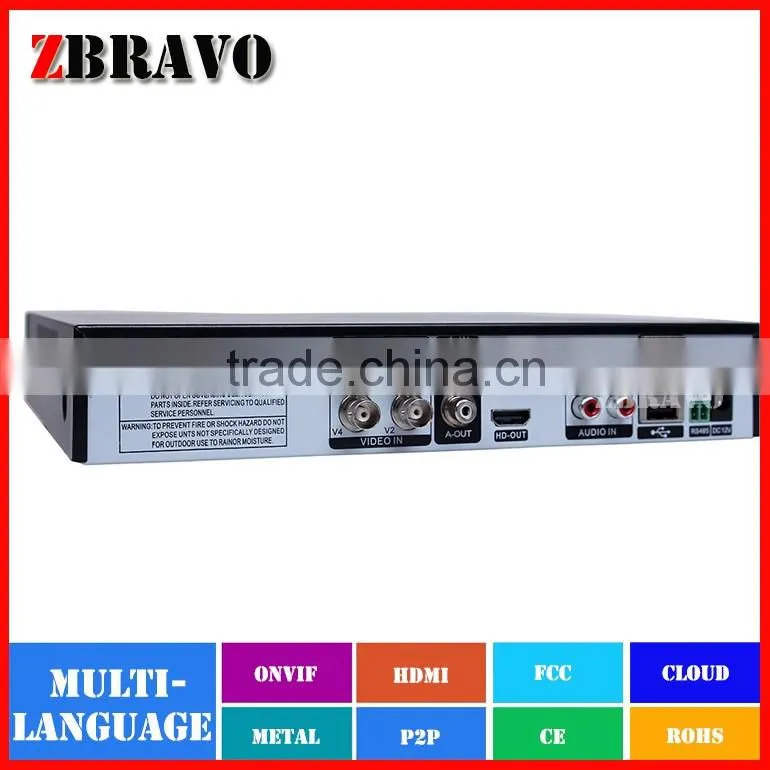

DVR Specification



System Main Processor Embedded processor Hi3520D
Operating System Embedded LINUX
Video Input 4 channel,
Audio Input 4 channel, RCA
Output 1 channel, RCA
Two-way Talk Support
Display Interface 1 HDMI, 1 VGA
Resolution 4*AHD-M ; 4*AHD-L
Display Split 1/4
Privacy Masking 4 rectangular zones (each camera)
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording Compression H.264
Resolution AHD-M / AHD-L
Extra Stream CIF/QCIF(1~25/30fps)
Bit Rate 1792Kbps-4096Kbps,customized,up to 4096Kbps
Record Mode Manual, Schedule(Regular(Continuous), MD), Stop
Record Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300sec
Video Detection & Alarm Trigger Events Recording, Tour, Video Push, Email, FTP, Spot, Buzzer & Screen tips
Video Detection Motion Detection, MD Zones: 396(22× 18), Video Loss & Camera Blank
Alarm Input NO
Alarm Output NO
Playback & Backup Sync Playback 1CH
Search Mode Time/Date, MD & Exact search (accurate to second)
Backup Mode USB Device / Network
Network Ethernet RJ-45 port (10/100/1000M)
Network Functions HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE,
DDNS, FTP, IP Filter
Smart Phone Android, Windows Phone ,IOS
Storage Internal HDD 1 SATA port, up to 4TB
Auxiliary Interface USB Interface 2 ports(1 Rear), USB2.0
General Power Supply DC12V/2A
Power Consumption ≤15W(without HDD)
Working Environment -10 ~+55°C / 10~90%RH / 86~106kpa
Dimension Packing:30*29*11.5cm , only dvr:25.8*23.2*4.2cm
Weight Packing:1.6kg(without HDD) , only dvr:0.95kg

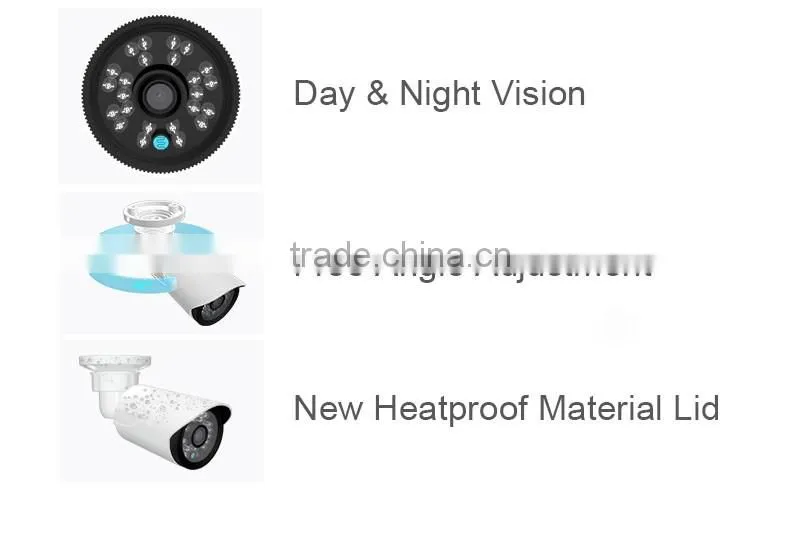

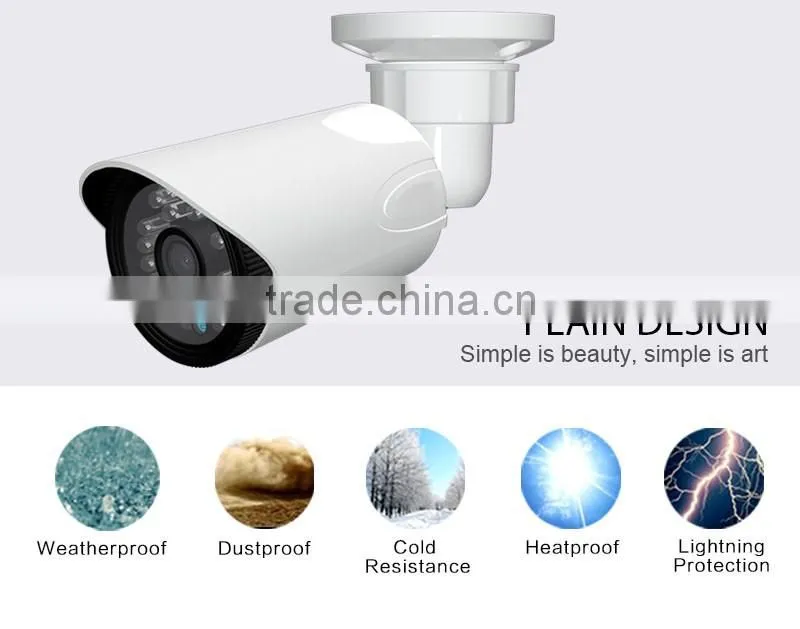

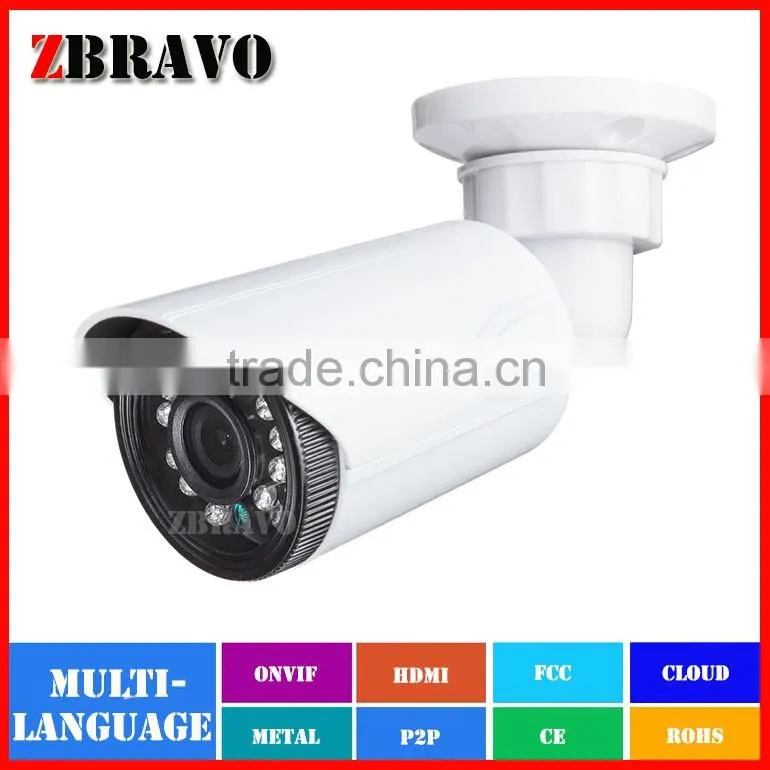

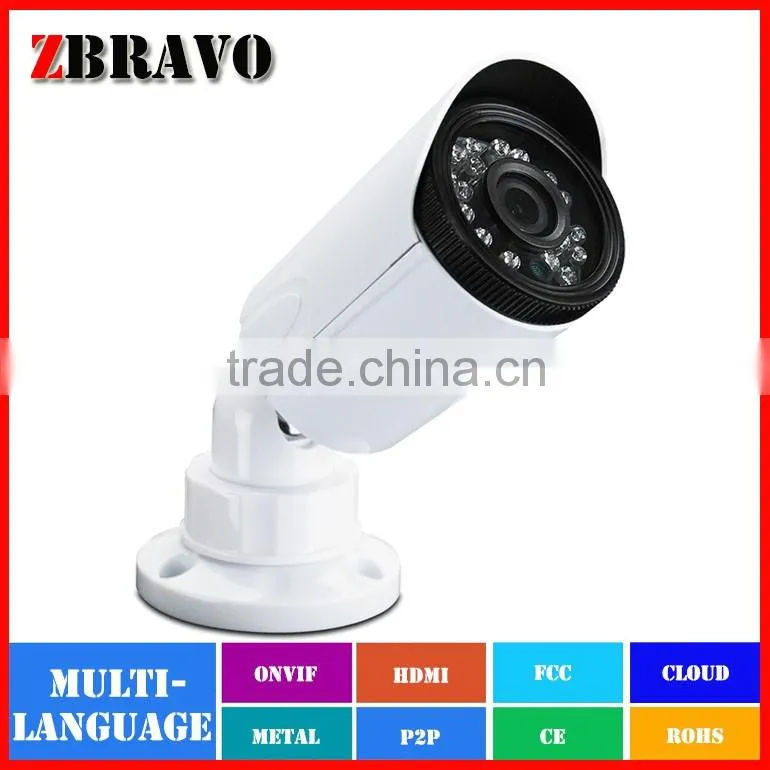

Camera Specification



Image Sensor 1/3" 0130 HD AHD
Horizontal Resolution 960P
Effective Pixels  1280(H)*960(V)
(PAL / NTSC)
Lens 3.6mm lens
IR Leds 24pcs IR leds
Compression H.264 High Profile
TV System PAL/NTSC
Scanning System 2:1Interlace
Minimum illuminator 0.01Lux/F1.2
OSD Support Optional
IR Range 20 meters
IR Cut Filter YES
HLC YES
BLC YES
Mirror YES
Infrared wavelength 850nm
S/N Ratio >=58dB(AGG OFF)
AES 1/50-1/100,000sec(PAL),1/60-1/100,000sec(NTSC)
Waterproof IP66 Waterproof
Transmission Distance Over 500m via 75-3 Coaxial Cable
Video Output 1-channel BNC high definition video output
AGC Auto/Manual/Off
White Balance ATW/Manual/Auto
Anti-cut Bracket 3-AXIS
Synchronization System Internal Synchronization
Consumption 3W
Voltage DC12V (9V ~ 15V)
Operating Temperature —20 degree~60 degree / 10% ~ 95%RH





4Ch Out door Bullet Camera kit AHD-M Camer Kit 960P 1.3megapixel CMOS 4Channel AHD Kit



4Ch Out door Bullet Camera kit AHD-M Camer Kit 960P 1.3megapixel CMOS 4Channel AHD Kit4Ch Out door Bullet Camera kit AHD-M Camer Kit 960P 1.3megapixel CMOS 4Channel AHD Kit4Ch Out door Bullet Camera kit AHD-M Camer Kit 960P 1.3megapixel CMOS 4Channel AHD Kit4Ch Out door Bullet Camera kit AHD-M Camer Kit 960P 1.3megapixel CMOS 4Channel AHD Kit4Ch Out door Bullet Camera kit AHD-M Camer Kit 960P 1.3megapixel CMOS 4Channel AHD Kit4Ch Out door Bullet Camera kit AHD-M Camer Kit 960P 1.3megapixel CMOS 4Channel AHD Kit

4Ch Out door Bullet Camera kit AHD-M Camer Kit 960P 1.3megapixel CMOS 4Channel AHD Kit4Ch Out door Bullet Camera kit AHD-M Camer Kit 960P 1.3megapixel CMOS 4Channel AHD Kit4Ch Out door Bullet Camera kit AHD-M Camer Kit 960P 1.3megapixel CMOS 4Channel AHD Kit



4Ch Out door Bullet Camera kit AHD-M Camer Kit 960P 1.3megapixel CMOS 4Channel AHD Kit







4Ch Out door Bullet Camera kit AHD-M Camer Kit 960P 1.3megapixel CMOS 4Channel AHD Kit







4Ch Out door Bullet Camera kit AHD-M Camer Kit 960P 1.3megapixel CMOS 4Channel AHD Kit
