Help CenterPhosphating Steel Wire for Fiber Optic Cable
Related Products
Specifications
1. Surface Treatment: phosphate2. Wire diameter :0.8mm-3.0mm
3. Tensile strength: 1470-1900 min Mpa
4. Certificate
Product Name: Phosphating Steel Wire for Fiber Optic Cable
1. Design and produce: we can supply many tensile grades of wire depend on customer request;
2. E-modulus of the wire: shall be>=190Gps;
3. The phosphating wire must be free from contamination,rust and mechanical damage;
4. The phosphating wire have been phosphate coated and uniformly,coincidently;
5. During manufactrue,the wire is inspected in accordance with a continuous sampling plan;
6. Quality good and high elongation.
Specification
| Diameter (mm) |
Tolerance (mm) |
Tensile Strength (min Mpa) |
Twist Number (min Nt) |
Bending Number (min Nb) |
| 0.8 | 0.015 | 1770 | 30 | 13 |
| 1 | 0.015 | 1770 | 26 | 15 |
| 1.2 | 0.02 | 1770 | 26 | 6 |
| 1.4 | 0.02 | 1770 | 28 | 9 |
| 1.5 | 0.02 | 1770 | 28 | 12 |
| 1.6 | 0.02 | 1900 | 23 | 10 |
| 1.8 | 0.025 | 1770 | 26 | 9 |
| 1.9 | 0.025 | 1770 | 26 | 8 |
| 2 | 0.025 | 1670 | 25 | 13 |
| 2.1 | 0.025 | 1570 | 31 | 13 |
| 2.2 | 0.025 | 1570 | 31 | 12 |
| 2.25 | 0.025 | 1570 | 31 | 12 |
| 2.3 | 0.025 | 1570 | 29 | 12 |
| 2.5 | 0.03 | 1570 | 29 | 10 |
| 2.6 | 0.03 | 1470 | 29 | 9 |
| 2.8 | 0.03 | 1470 | 29 | 8 |
| 3 | 0.03 | 1470 | 29 | 8 |
Min. Phosphating coating(g/m²)
|
Nominal Diameter(mm) |
Min. Phosphating cover weight(g/m²) |
|
tensile strength ≤1570 MPa |
tensile strength>1150MPa |
|
0.80≤d<1.00 |
1.0 |
0.8 |
1.00≤d<2.00 |
2.0 |
1.5 |
2.00≤d≤3.00 |
2.5 |
1.8 |

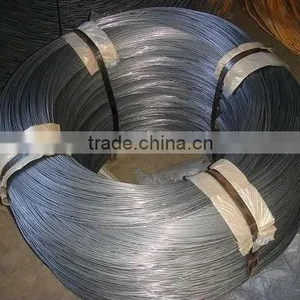

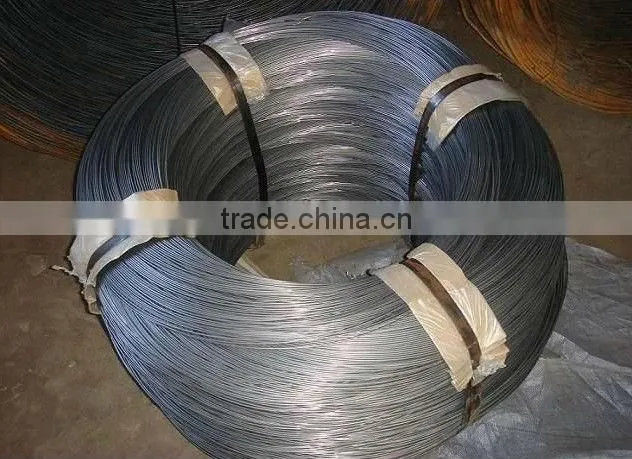

Product Picture

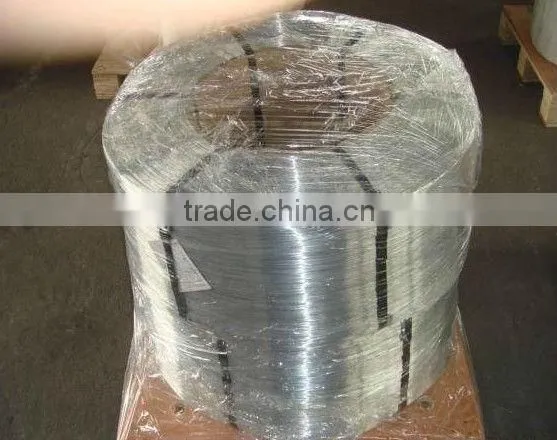

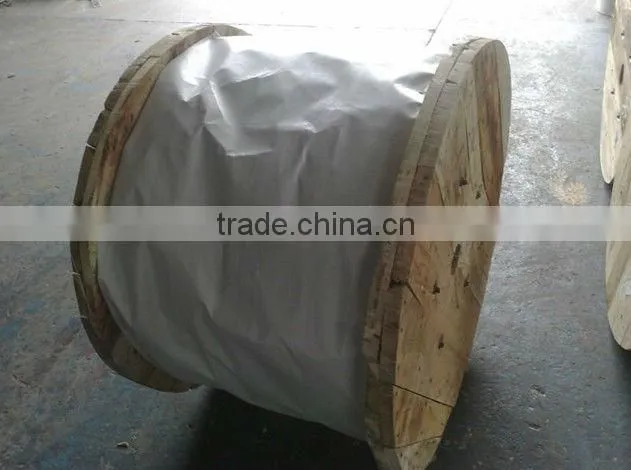

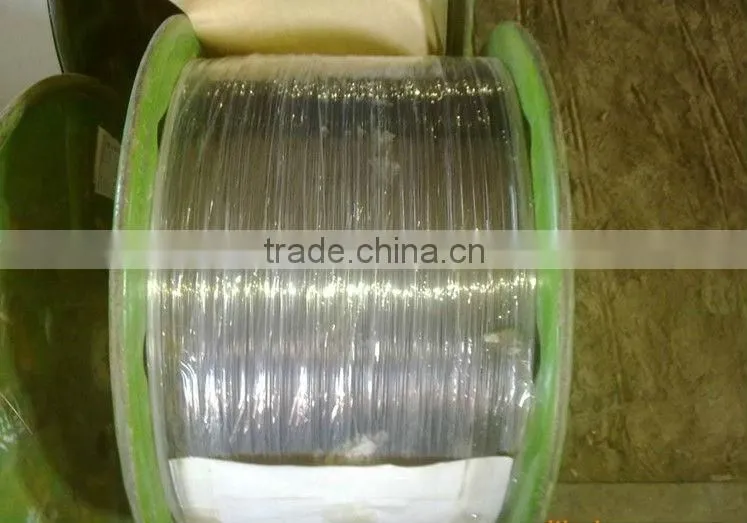

Package plastic spool,reel,bag,drum,carton etc

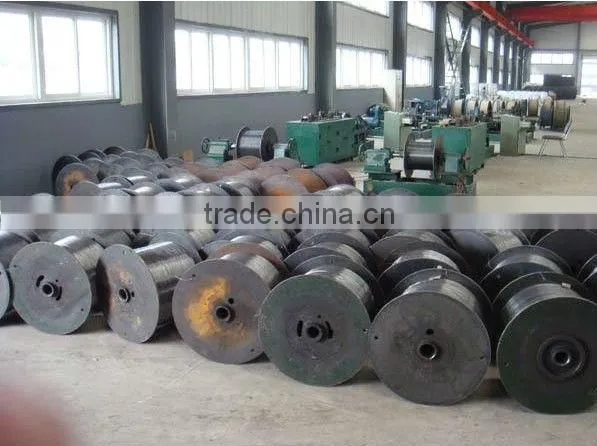

Factory Workshop

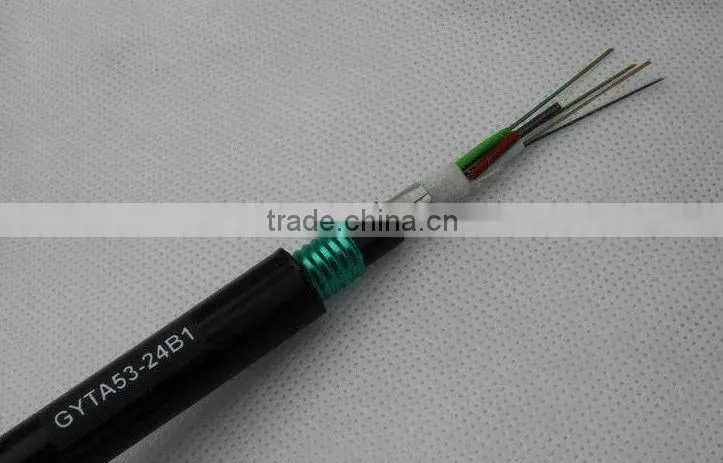

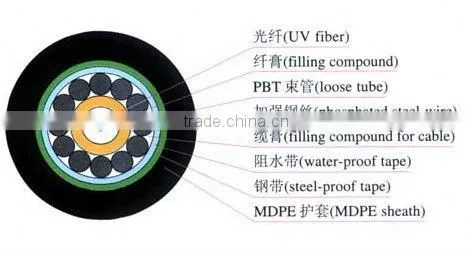

Application Method
Service
1. Various samples and combinations of samples
2. Recommendation to cost effective raw material(quality and price)
3. Accepting alteration before production
4. Financial credit support to special project
5. Sufficient storage and quick delivery, meeting different requirements
6. Three different criterions of packing
7. Service of transportation consignation
8. Concurrent manufacturing to the project of jobsite
Certificate
Hengri Company
Business Type: Manufacturer
Number of Employees: 51 - 100 People
No. of R&D Staff: 5 - 10 People
No. of QC Staff:5 - 10 People
Production Ability: 100000T/YEAR
...
