z truss purlin

Specifications

z purlin:
1.Material: galvanized steel
2.Thickness:1.0mm-3.0mm
3.height:100-350mm

Below is the brief introduction of C/Z purline(channel) for building use:

1). Material: galvanized steel



2). Specification:

     (A)--C Purline: thickness--1.50mm to 3.00mm; height--100mm to 350mm; flank height--40mm to 120mm; lip--10mm to 30mm; length--any

     (B)--Z Purline: thickness--1.50mm to 3.00mm; height--100mm to 350mm; fank height--40mm to 120mm; lip--10mm to 30mm; length--any



3). Hole Punch: we can punch hole for our clients if they can offer detailed drawing of hole location; we punch elliptic hole on C/Z purline for installation convenience at building site.





Products : Z purlin

1. High quality material: Q235,Q345,SGCC;



2. Can be galvanized or painted according to your request;



3. Hole for Assemble: Location and diameter can be designed according to your request;



4. If galvanized, Hot Dipped Galvanized Zinc, no less than 120g/m2

5. Total Thickness: optional from 1.0-3.0mm;



6. Height:100-350mm;





Features:

1. Thin, light but has high strength. Material can be saved by 30% at the same strength compared with traditional steel channel;
2. Size and length can be designed according to different projects;

3. Reliable stress and stable, accurate positioning shock and vibration;

4. Long service life, simple maintenance.

5. Good versatility and combination.



  Specification

Model	Section size
	h (mm)	b (mm)	a (mm)	t (mm)
Z100	100	40	20	2.0-2.5
Z100	100	40	20	2.0-3.0
Z120	120	50	20	2.0-3.0
Z140	140	50	20	2.0-3.0
Z150	150	60	20	2.0-3.0
Z160	160	60	20	2.0-3.0
Z180	180	70	20	2.0-3.0
Z200	200	70	20	2.0-3.0
Z220	220	80	20	2.0-3.0
Z240	240	80	20	2.0-3.0
Z250	250	80	20	2.0-3.0
Z260	260	80	20	2.0-3.0
Z280	280	100	20	2.0-3.0
Z300	300	100	20	2.0-3.0
Z320	320	100	20	2.0-3.0
Z340	340	100	20	2.0-3.0
Z350	350	120	20	2.0-3.0

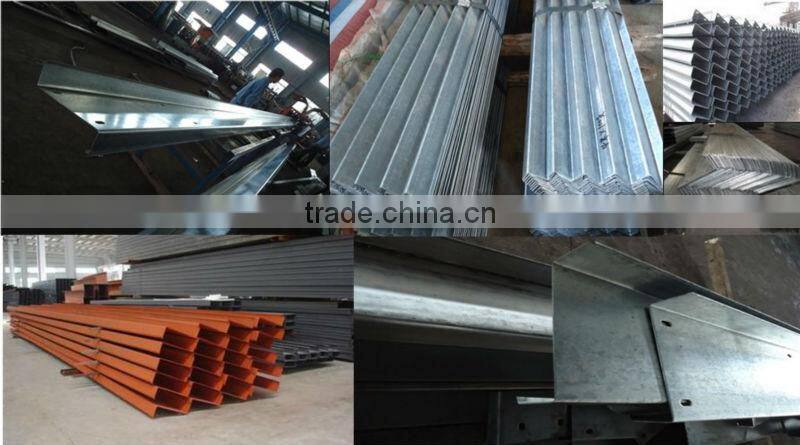

 Product Picture



Service & Technical Support



v Service
1. Various samples and combinations of samples
2. Recommendation to cost effective raw material(quality and price)
3. Accepting alteration before production
4. Financial credit support to special project
5. Sufficient storage and quick delivery, meeting different requirements
6. Three different criterions of packing
7. Service of transportation consignation
8. Concurrent manufacturing to the project of jobsite







v Technical Support



    1. System solution consultant
    2. Customised solution design
    3. Initial system solution design
    4. Load calculations
    5. Confirmation of solution and design
    6. Drawing of purlins and sheetings
    7. Detail design (including trims, grade, sky light, ventilator, etc)



    8. Installation instruction and fieldwork Regular PDCA quality inspect



Hengri Factory



Package



Certificate



Company



Development History:

1996:  South Workshop: 2000m2
2000:  North Workshop: 4000m2

2004: Building the state's key base of chemical fertilizers by Hengri and Bangladesh in cooperation

 2007: Latest C/Z purlin and Floor decking production line

 Business Type: Manufacturer

 Number of Employees: 51 - 100 People

 No. of R&D Staff: 5 - 10 People

 No. of QC Staff:5 - 10 People

 Management Certification: ISO 9001:2008

 Production Ability: 100000T/YEAR

If you need C/Z purline(channel), (c Shape steel,z Shape, u steel Shape)..

please feel free to contact with us to get more information.

THANKS!





....
