Help Centerc Shaped Steel Channel
Related Products
Specifications
1)Material: Steel,Galvanized Steel,Galvalume Steel2)Thickness:2.0mm-3.0mm
3)height:100-350mm
Products
1. High quality material: Q235,Q345, SGCC;
2. Can be galvanized or painted according to your request;
3. Hole for Assemble: Location and diameter can be designed according to your request;
4. If galvanized, Hot Dipped Galvanized Zinc, no less than 120g/m2
5. Total Thickness: optional from 2.0-3.0mm;
6. Height:100-350mm;
7. Easy installation, and high support strength;
8. Recyclable, can be disassembled and installed again.
Specification
| Model | Section Size | |||
| H (mm) | b (mm) | a (mm) | t (mm) | |
| C100 | 100 | 40 | 20 | 1.6-3.2 |
| C120 | 120 | 40 | 20 | 1.6-3.2 |
| C120 | 120 | 50 | 20 | 1.6-3.2 |
| C120 | 120 | 60 | 20 | 1.6-3.2 |
| C140 | 140 | 50 | 20 | 1.6-3.2 |
| C140 | 140 | 60 | 20 | 1.6-3.2 |
| C160 | 160 | 50 | 20 | 1.6-3.2 |
| C160 | 160 | 60 | 20 | 1.6-3.2 |
| C180 | 180 | 60 | 20 | 1.6-3.2 |
| C180 | 180 | 75 | 20 | 1.6-3.2 |
| C200 | 200 | 60 | 20 | 1.6-3.2 |
| C200 | 200 | 70 | 20 | 1.6-3.2 |
| C220 | 220 | 60 | 20 | 1.6-3.2 |
| C220 | 220 | 70 | 20 | 1.6-3.2 |
| C240 | 240 | 70 | 20 | 1.6-3.2 |
| C240 | 240 | 75 | 20 | 1.6-3.2 |
| C250 | 250 | 75 | 20 | 1.6-3.2 |
| C260 | 260 | 75 | 20 | 1.6-3.2 |
| C280 | 280 | 80 | 20 | 1.6-3.2 |
| C300 | 300 | 100 | 20 | 1.6-3.2 |
| C320 | 320 | 100 | 20 | 1.6-3.2 |
| C340 | 340 | 110 | 20 | 1.6-3.2 |
| C350 | 350 | 120 | 20 | 1.6-3.2 |

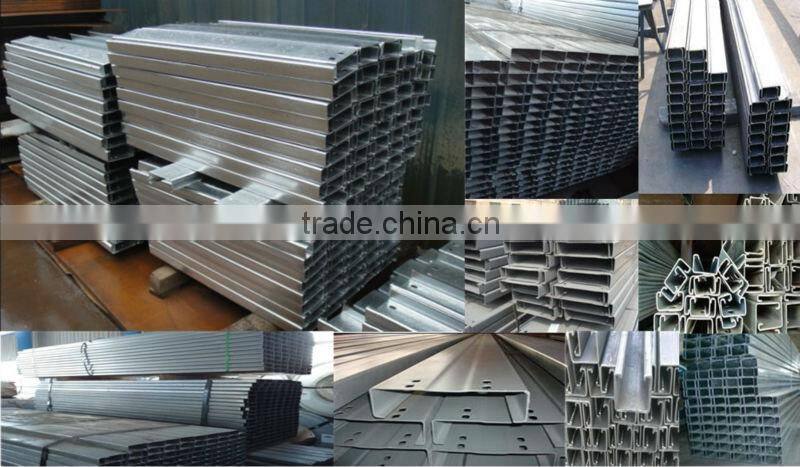

Product Picture
Service & Technical Support
v Service
1. Various samples and combinations of samples
2. Recommendation to cost effective raw material(quality and price)
3. Accepting alteration before production
4. Financial credit support to special project
5. Sufficient storage and quick delivery, meeting different requirements
6. Three different criterions of packing
7. Service of transportation consignation
8. Concurrent manufacturing to the project of jobsite
v Technical Support
1. System solution consultant
2. Customised solution design
3. Initial system solution design
4. Load calculations
5. Confirmation of solution and design
6. Drawing of purlins and sheetings
7. Detail design (including trims, grade, sky light, ventilator, etc)
8. Installation instruction and fieldwork Regular PDCA quality inspect

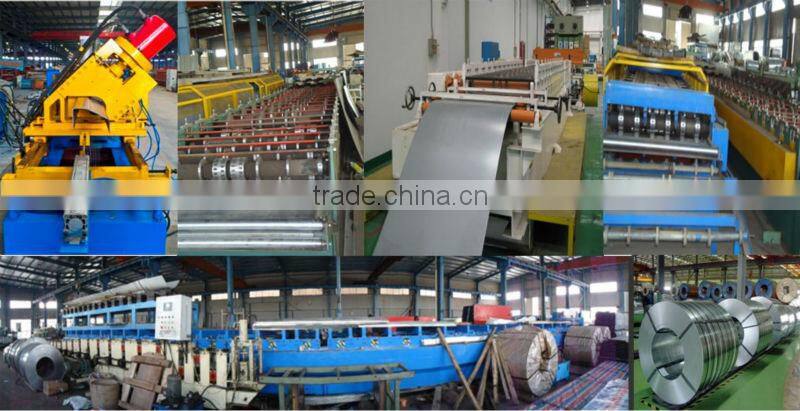

Hengri Factory
Package
Certificate
Company
Development History:
1996: South Workshop: 2000m2
2000: North Workshop: 4000m2
2004: Building the state's key base of chemical fertilizers by Hengri and Bangladesh in cooperation
2007: Latest C/Z purlin and Floor decking production line
Business Type: Manufacturer
Number of Employees: 51 - 100 People
No. of R&D Staff: 5 - 10 People
No. of QC Staff:5 - 10 People
Management Certification: ISO 9001:2008
Production Ability: 100000T/YEAR
...
