China TOP Brand SDLG Wheel Loader G936L

Name: China TOP Brand SDLG Wheel Loader G936L
Brand: SDLG
SKU: 115340451

US$ 26,000 - 40,000 MOQ: 1 Set

Key Specifications

Condition:

New

Brand Name:

SDLG

Model Number:

G936L

Jinan Kunda Automobile Sales Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

TIANJIN

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name SDLG

Model Number G936L

Place of Origin Shandong, China

Type Front Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 7120*2510*3170mm

Rated Load 3TON

Certification GOST,CE, SONCAP, EAC, ISO

Warranty 24 months

After-sales Service Provided Overseas third-party support available

Product Description

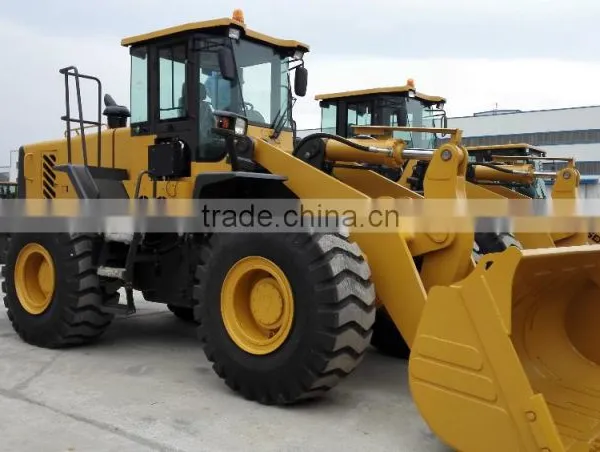

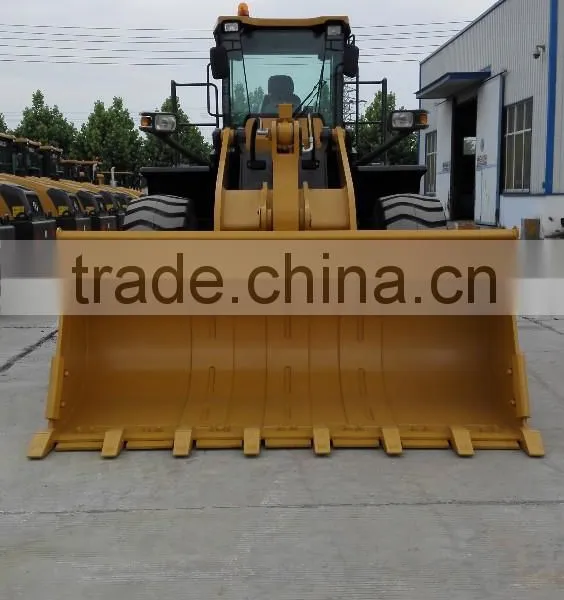

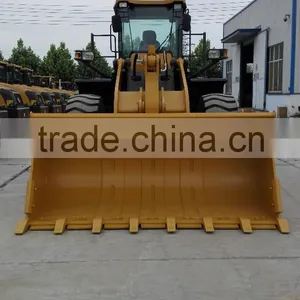

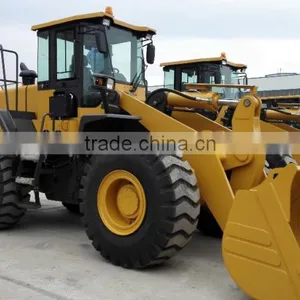

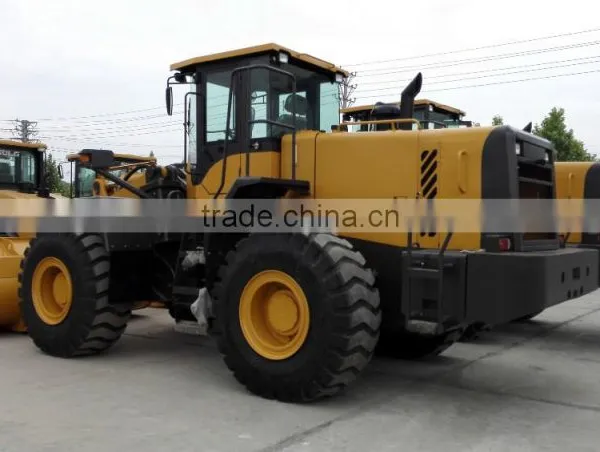

China TOP Brand SDLG wheel loader G936L

1,Technical features

Item		Performance		Item			Performance
Standard bucket capacity (m3)		1.8		Min. turning radius outside rear wheel (mm)			5381
Rated load (kg)		3000		Min. turning radius outside bucket (mm)			5912
Max. traction force(by engine)(kN)		≥105		Max. break force(kN)			≥96
Static tipping load (kN)		≥66		Grade ability (°)			30
Travel speed	Speeds		I		II	III	IV
	Forward (km/h)		0~7		0~12	0~27	0~35
	Reverse (km/h)		0~7		0~12	0~27	——

2,Dimension and weight

Item	Performance	Item	Performance
Length(with bucket on ground) (mm)	7100	Bucket Width (mm)	2510
Height (mm)	3170	Tread (mm)	1865
Width from outside wheel (mm)	2310	Wheelbase (front/back)(mm)	2850(1250/1600)
Min. ground clearance (mm)	370	Operating weight (kg)	10700
Max Dumping height(-45ºdump angle) (mm)	3050	Axles	2
Dumping distance(-450dump angle)(mm)	1148

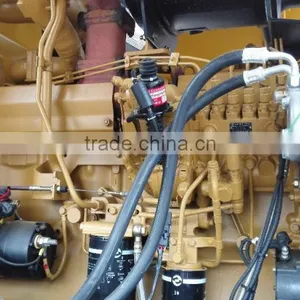

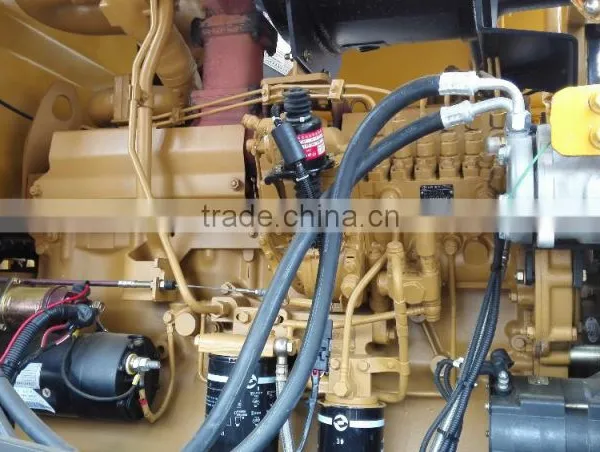

3,Engine

Item	Performance	Item	Performance
Model	6BT5.9-C130,DEUTZ TD226B	Cylinder No.	6
Type	Straight-lined, water cooled, supercharged, electric control	Cylinder bore/stroke(mm)	102/120
Rated power (/kW)	97	Min fuel consumption ration (g/kW.h)	≤217
Rated rpm(r/min)	2200	Max torque (N.m)	542
Displacement(ml)	5.9	Emission standard	Eu stage II

4,Transmission

Item				Performance
Torque converter	Type			Single phase, 3 element, single turbo hydraulic converter
	Torque ratio			2.3
	Cooling system			Circulated, watercooled
Gearbox	Type			Fixed shaft, electro-hydro shift
	Shift			Forward 4,Reverse 3
	Gear ratio	Forward I		3.91
		Forward II		2.304
		Forward III		0.964
		Forward IV		0.617
		Reverse I		3.91
		Reverse II		2.304
		Reverse III		0.964
	Model
	Working pressure (MPa)			1.3~1.7
Main drive	Type			Single stage, spur gear
	Gear ratio			6.167
Final reducer	Type			Single stage,planetary shift
	Gear ratio			3.12

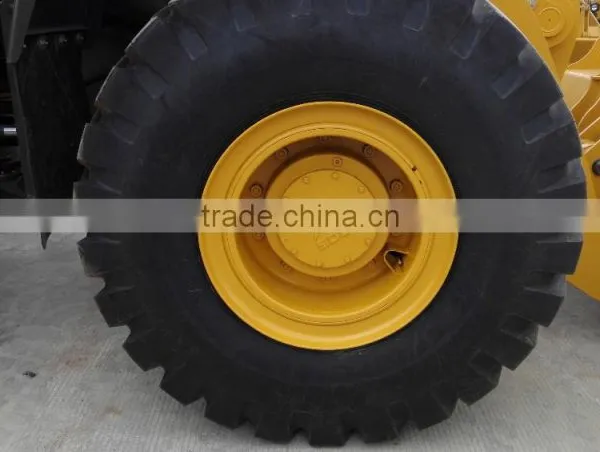

Driving axle and tire	Type			Driving axle and tire
	Tire specification			17.5-25
	Tire pressure(MPa)		Front wheel	0.333~0.353
			Rear wheel	0.275~0.294
