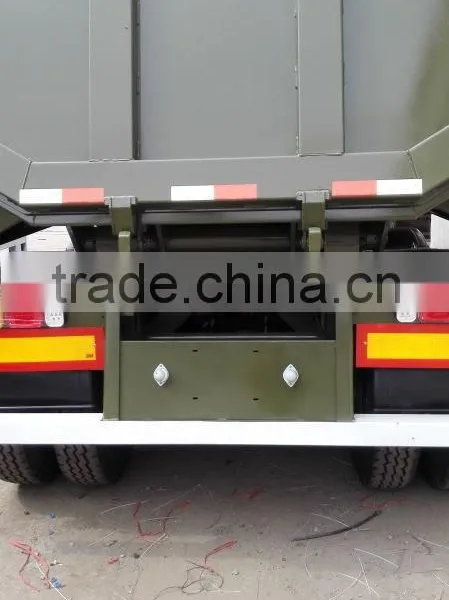

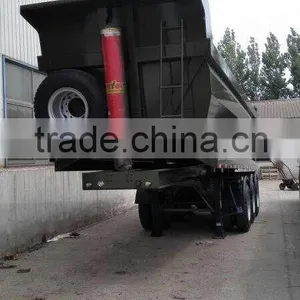

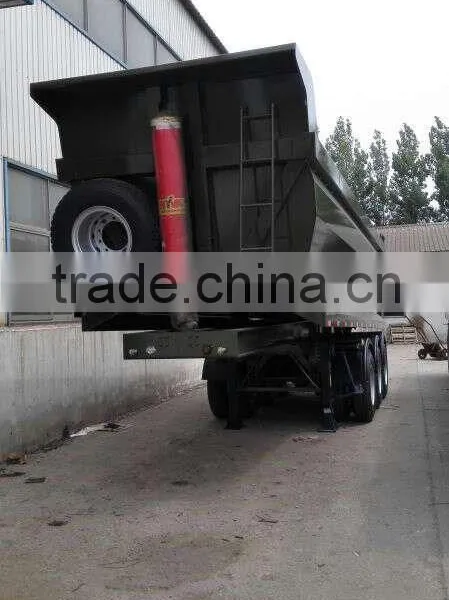

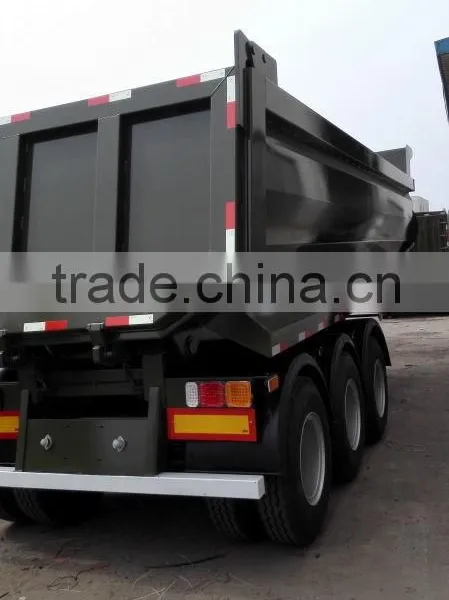

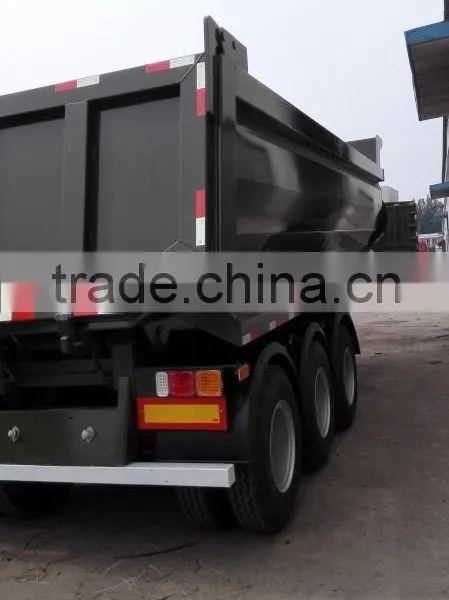

2/3 Axles Tipper Trailer /Self Dumping/Dump/Dumper Truck Semi Trailer

US$ 35,000 - 42,000 MOQ: 1 Set

Key Specifications

Type:

Semi-Trailer

Material:

Steel

Certification:

Other, iso

Jinan Kunda Automobile Sales Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

tianjin longkou

Delivery Detail:

Delivery time depends on order quantity.

Type Semi-Trailer

Material Steel

Certification Other, iso

Size 11000x2500x3150

Max Payload 80ton

Place of Origin Shandong, China

Model Number Semi-Trailer

Model	3 axles Rear Dump Semi Trailer 45 CBM /50000KG
Wheel Base	1310 (mm)
Tyre Specifications	12R22.5
No. Of the Tyres	12 pcs ISO Certificated
Axle	13Tonnage
No. Of the Axles	3pcs
Landing Gear	28 ton capacity Fuwa with static capacity of 80T
Suspension	Heavy duty mechanic suspension with 10 pcs leaf spring
King Pin	2’ and 3.5’ inter-changeable traction pin
Departure Angle	15
Front/Rear Overhang	1900 mm
Material of the Main Beam	Automatic submerged arc welded Main beams Q345B/ST52-3, through cross beams Q235 Body material Q235B manganese plates, automatic submerged arc welded
Brake System	Automatic air brakes Double pipe line air brake, front two axle is 30 air chamber, rear axle is 30/30 air chamber.
Colour	As the buyers’ request
Accessory	One tooling boxes ,Two spare tire carrier, Two fire extinguisher
Dimension	125000x2500x3200 mm
Net Weight	11T
Side Wall Thickness	6mm, bottom 8mm
Spare tire carrier	1 set
Electrical System	24V, 7core socket, lights according to European standards.
Tool Box	1 box of standard tools
