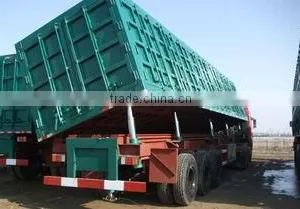

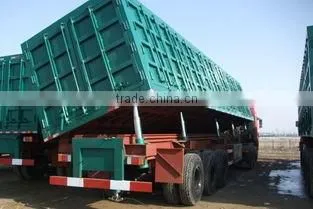

Durable Tri-axles Side Dump Semi Trailer (tipper Truck Trailer)

US$ 10,000 - 20,000 MOQ: 1 Set

Key Specifications

Type:

Semi-Trailer

Material:

Steel

Certification:

Other, ISO9001,CCC

Jinan Kunda Automobile Sales Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

tianjin

Delivery Detail:

Delivery time depends on order quantity.

Type Semi-Trailer

Material Steel

Certification Other, ISO9001,CCC

Size 13000mm*2500mm*3100mm

Max Payload 30-80Ton

Place of Origin Shandong, China

Model Number side dump semi trailer

vehicle name	3 axle tipper semi-trailer
overall dimension(mm) (LxWxH)	13000mm2500mm3100mm
Weight
Tare Weight	8.5T-10T
Payload	30T-80T
Specification
Axle Weight Load	13T/14T/16T/20T per axle
Axle number	3
Axle specs	FUWA,JINSHENG/BPW brand
Suspension	mechanical suspensions
King Pin	50#/90# traction pin
Lifting system	Full set of Hyva hydraulic system/ Full set of Jiuzhouzhongli hydraulic system
Steel Spring	10pieces
Landing Gear	28 ton capacity
Tire
Tire specs.	11.00R20-18
Number of Tire	8pieces
Spare Tire Carriers	1 pieces
Rim	8.00*22.5 , 8 pieces
Frame (specs. and materials)	Main frame is height 500mm
Frame Beam	Upper and lower plate is20mm, middle is10mm(Double+three plate). height is 500 mm
Frame Floor	The Thickness is 3mm flat bed
Brake
Brake System	Dual line braking system
Brake Chamber	Two double chamber/ABS
Brake valve	WABCO
Electrical System	1.Voltage: 24v 2. Receptacle: 7 ways (7 wire harness)
Lamp	LED
Color	Any color will be available
Accessory	One tooling box with a set of standard trailer tool
