high performance muti band Auto car GPS GSM Combo Antenna
Specifications
1.GPS GSM Compact Combo Antenna
2.GPS Frequency :1575.42MHz ; AMPS Frequency : 824-894/1710-1990MHz
3.Voltage:3V-5V
4.Cable Length: 3 meters
5. Connector : SMA/SMB/SMC/BNC/FME/TNC/MCX /MMCX
6. Welcome to OEM
Specifications of high performance muti band Auto car GPS GSM Combo Antenna
- Center Frequency:1575.42MHz
- Polarization: RHCP (right hand circular polarization)
- LNA Gain: 28dB typical
- Noise figure: 1.5 maximum
- Bandwidth: 10MHz
- VSWR: 2.0 maximum
- Impedance:50 Ohms
- Power consumption: 2.7 to 5.5V DC/28mA

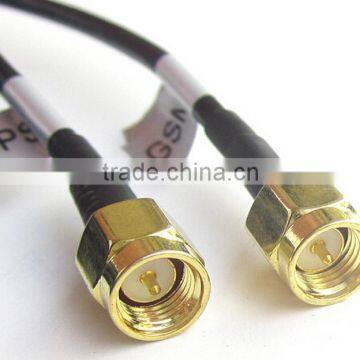

- Cable and connector: 3m RG-174 with RP SMA male connector
- Operating temperature: -35 to +85 degrees Celsius
- Storage temperature: -40 to +95 degrees Celsius
- Dimensions-mm: 80*14
GSM antenna part
- Frequency: 890-960MHz/ 1710-1880MHz
- Polarization: vertical
- Gain: 3dBi
- VSWR: 2.0 maximum
- Impedance: 50 Ohms
- Power handling capacity: 10W maximum
- Cable and connector: 3M RG174 with SMA male connector
- Operating temperature: -35 to +85 degrees Celsius
- Storage temperature: -40 to +95 degrees Celsius
- Dimension-mm: 80*14
Description :

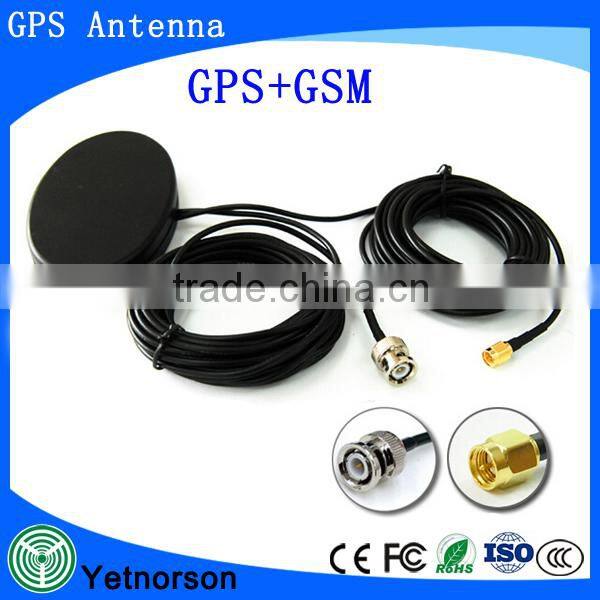

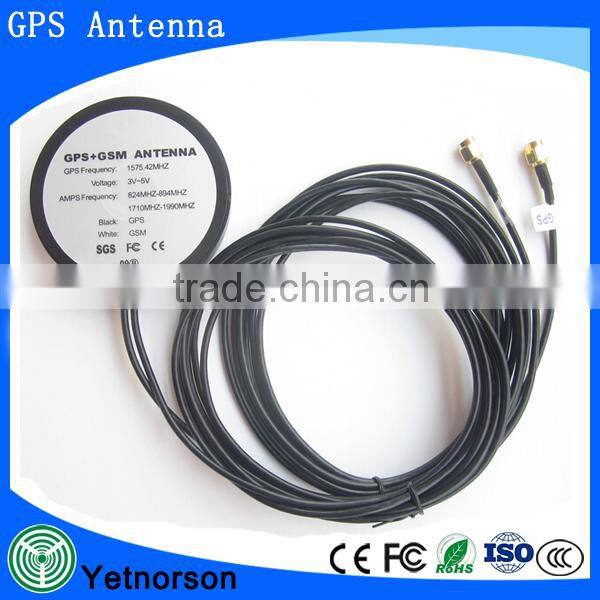

1. GSM+GPS combine antenna with 3 meters Cable.
2. So advanced and scientific of this Antenna, bring convenient for your daily use.
3. With SMA Male Antenna, your GPS will catch more satellites and get stronger signal, also GSM network signal at the same time.
4.The base of the antenna is magnetic so it will adhere to any metal surface.
5.With excellent performance and good quality of this GSM+GPS Antenna.
Picture:
Test of high performance muti band Auto car GPS GSM Combo Antenna
Each products are through strict test
GPSM Antenna GPS GSM Anten GPS GSM Antenna
1. PAYMENT :
T/T, Western Union, paypal in small amount.
Our prices DO NOT include any customs duty or tax.
Please be responsible for custom tax if your local custom charge some custom tax.
2.PACKAGE :
Standard carton package or OEM service
3. LEAD TIME :
3-5 days for samples ,100 pcs -1000 pcs , 5-7 working days
1000 pcs-5000 pcs , 7-14 working days
5000-10000 pcs, 14 -20 working days
4. SHIPPING METHOD:
DHL ,EMS ,UPS ,By SEA ,etc as you want .
5.RETURE and WARRANTY:
1. We can guarantee the product quality within one years
2. If parts cannot work, we will return payment or replacement to you.
3. Any items must be returned in their original condition to qualify for a refund or replacement.
4. The buyer is responsible for all the shipping cost incurred
6. CONTACT US:
1. Tel: +86 -755 -28986687 Ext:8013
2. Moble /WhatsApp:+86 138 2527 1579
3. Skype: Yetnorson03
4. QQ:2851130714
4. Add : 2/F,Building A,Yaoxiang Industrial Zone,No.92,FuKang Road, Henggang Street Longgang District Shenzhen
Shenzhen Yetnorson technology Co., LTD. as one of the emerging high-tech enterprise.Who is one of the leader who is engaged in the antenna products .custom service, R&D, design,Our main prooducts at GSM/GPS/CDMA/DVB-T/DMB-T/DAB-T/ISDB /PHS / 3 G / 4 G /5.8G, 2.4 GHz (WIFI, wireless local-area network (wlan)-/ 3.5 GHz wimax (5.8 GHz) / wireless spread spectrum communication series
1,Q:what is you brand ?
A: Yetnorson antennas
2,Q:how can i get the sample ?
A: if you need sample to test ,please pay for the shipping cost ,there we can free for one sample to you
3,Q: how much the shipping cost will be for sample ?
A :The depend on the weight and packing size you are
4, Q :how can i get the price list ?
A :please send the email and order information for us , so we can give the latest price for you
5.Q:Can you give me the deliver time?
A: Delivery time is approx. 14 to 25 business days (excluded Saturday & Sunday, Public Holiday) to most US/UK/AU destinations
1) Australia - 7-14 working days
2)UK/ Canada - 14-21 working days
3)Europe & Ireland - 18-24 working days
4)Brazil/ South America - 30-40 working days
5)Russian Federation:30-50 working days,we suggest you choose hk post
