Help CenterSX2L MINI MILLING MACHINE
Related Products
Specifications
Mini Milling1.500W high torque DC brushless motor
2.Upgrad of X2 series
3.L and P series with big size worktable

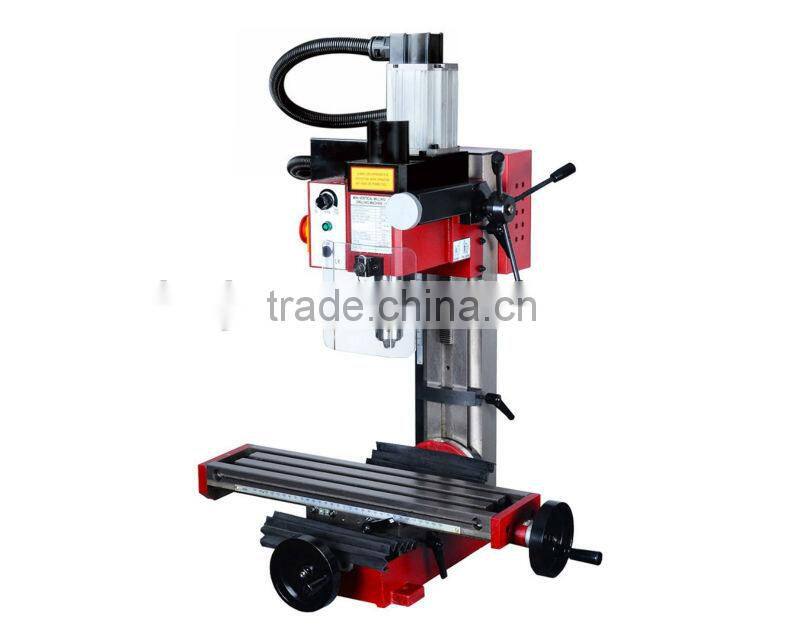

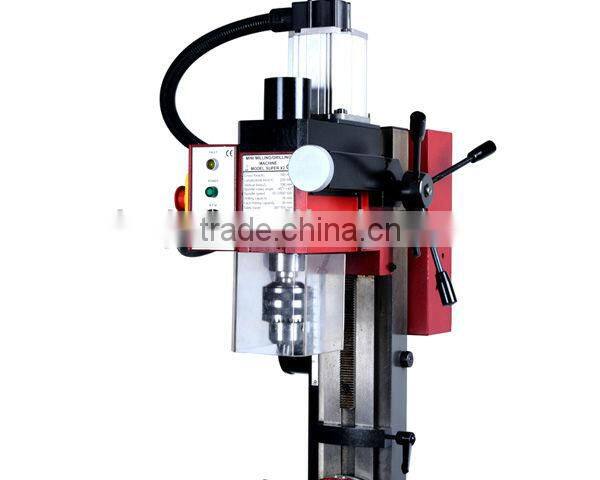

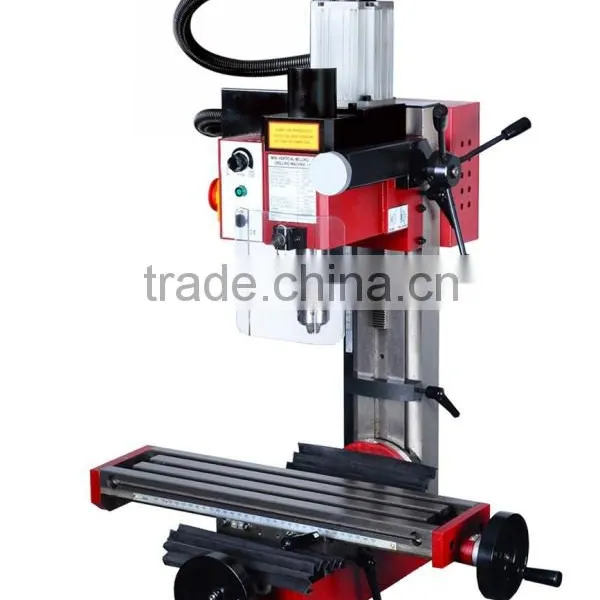

Mini Milling Machine
Feature:
1.Cast iron for vibration free running
2. Column tilts to 45° Left & Right
3. 500W high torque DC brushless motor
4. Coarse down feed for drilling operations
5. Hardened slide ways with gib strip adjustment
6. Precision ground table with Tee slots for material clamping
7. Longer table
Specification:
Specification |
SX2L |
Drilling capacity |
16mm |
End mill capacity |
20mm |
Face mill capacity |
35mm |
Longitudinal axis(X) |
300mmm |
Cross axis(Y) |
130mm |
Headstock travel(Z) |
180mm |
Spindle taper |
MT3 or R8 |
Throat |
167mm |
Table effective size |
460x120mm |
T-slot size |
12mm |
Column tilting angle |
45°L, 45°R |
Motor output power |
500W |
Spindle speed low range |
100-2500rpm |
High range | |
Overall dimension(LxWxH) |
520x580x760mm |
Packing size(LxWxH) |
640x600x730mm |
Weight (Net/Gross) |
60/78kg |
Standard Accessory:
-13mm Drill chuck
-Wrench set
-Oil can

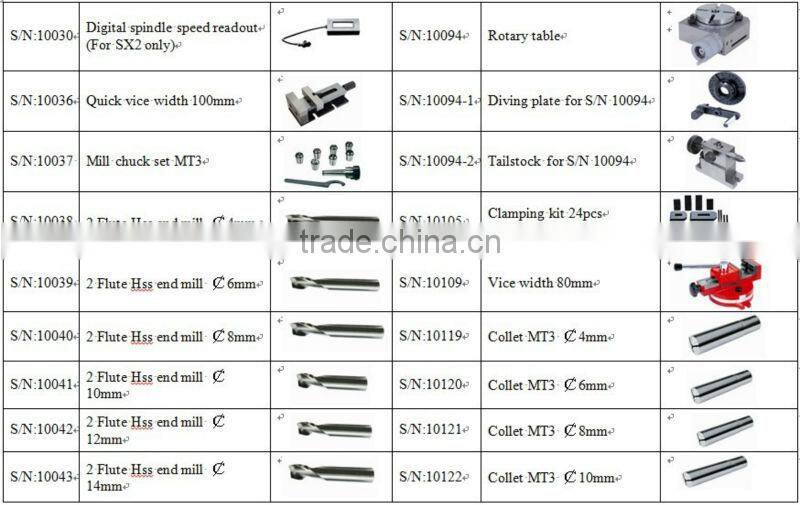

Optional accessory:
