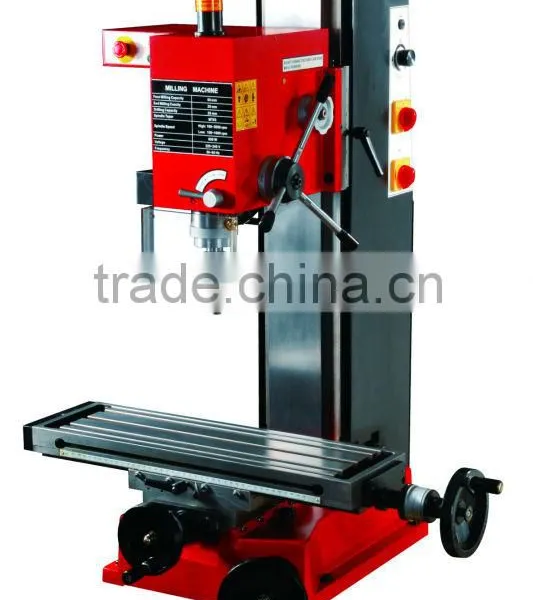

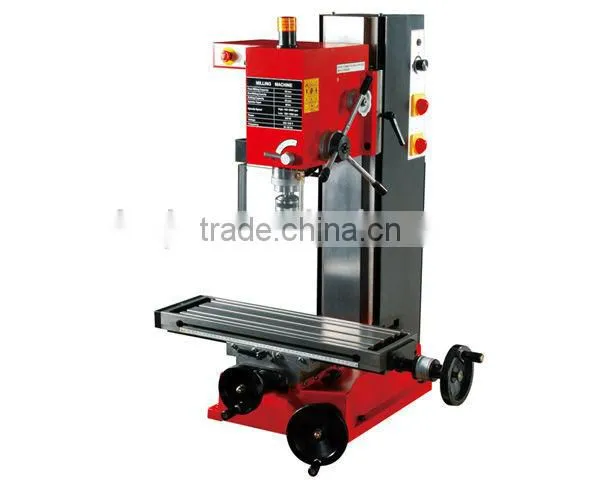

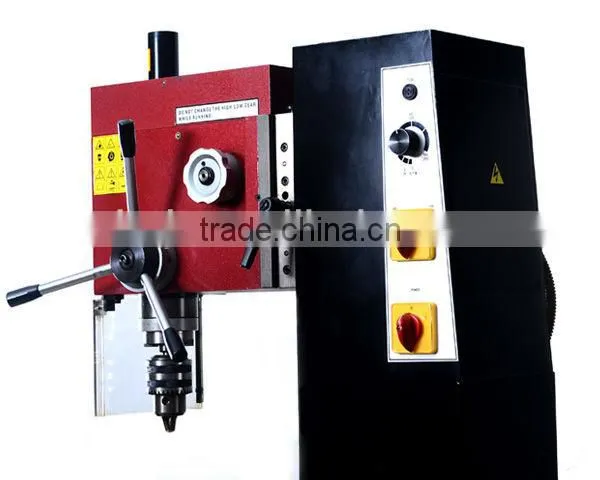

X3L Mini Milling Machine

Name: X3L Mini Milling Machine
Brand: Mini Milling Machine
SKU: 115322089

US$ 1,000 - 1,200 MOQ: 10 Sets

Key Specifications

Condition:

New

Place of Origin:

Shanghai, China

Brand Name:

Mini Milling Machine

Shanghai Zhong Jing Imp. & Exp. Corporation

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shanghai, China

Brand Name Mini Milling Machine

Model Number X3L

Type Vertical

CNC or Not Normal

Voltage 110/220V

Power(W) 600W

Dimension(L*W*H) 720x760x990mm

Weight 165kg

Certification CE

Warranty 12months after the date of shipment

After-sales Service Provided Overseas service center available

Specifications

Mini Milling Machine
1.Rigid rectangular column with dovetail guides for head
2.Well-made mill/drill for small workshop use

Mini Milling Machine

Feature:

1.Two electronically controlled speed ranges

2. Well-made mill/drill for small workshop use

3. Dual downfeed controls

4. Coarse for drilling,Fine for milling

5.Rigid rectangular column with dovetail guides for head

Specification:

Model	X3L
Drilling capacity	25mm
End milling capacity	16mm
Face milling capacity	50mm
Max. distance spindle to table	380mm
Spindle taper	MT3 or R8
Spindle speed Low range	100-1000rpm±10%
High range	100-2000rpm±10%
Table effective size	700x 160mm
T-slot size	12mm
Table cross travel	145mm
Table longitudinal travle	400mm
Motor output power	600W
Overall dimension (LxWxH)	870 x 760 x 990mm
Packing size (LxWxH)	920 x 800 x 1050mm
Weight(Net/Gross)	165/198kg
