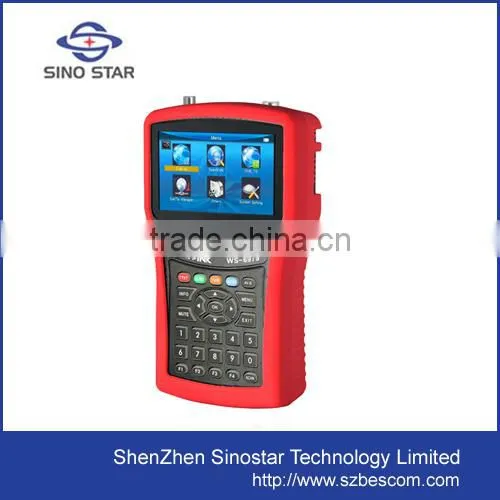

Help CenterSatellite Finder HD DVB-S+ DVB-T Combo WS-6979
Related Products
-
Professional Satellite Finder Dvb-s SatelliteUS$ 220 - 290MOQ: 1 Piece -
Mpeg-4 Satellite Finder MeterUS$ 220 - 290MOQ: 1 Piece
-
Satlink Ws-6906, WS6906, WS 6906, DVB-S SF-6906US$ 220 - 290MOQ: 1 Piece
-
Professional Measuring Tools Precision Digital Satellitedish FinderUS$ 220 - 290MOQ: 1 Piece
-
hd Satellitefinder Satlink Ws6979 Digital Satellite Finder Meter ws 6979US$ 220 - 290MOQ: 1 Piece
professional satellite finder
Technical Specification
TRANSMISSION STANDARDS | ||
DVB-S2/S, DVB-T/T2 | ||
SATELLITE INPUT/DEMODULATION | ||
Connector Type |
F Type |
|
Input Frequency |
950 to 2150 MHz |
|
Signal Input Level |
- 65 to -25 dBm |
|
Band Switch Control |
22KHz |
|
LNB Supply |
13V/18V, IMax 400mA |
|
Demodulation Type |
QPSK,8PSK,16APSK |
|
Symbol Rate |
2<Rs<45Mband(SCPC/MCPC) |
|
DVB-T/T2 INPUT/DEMODULATION | ||
Connector Type |
FEMALE Type |
|
Input Frequency |
48 to 862 MHz |
|
Signal Input Level |
-79.5dBm (MAX) |
|
ANT Supply |
5V, 12V/17V Imax 100mA |
|
Demodulation Type |
QPSK,16QAM.64QAM,256QAM |
|
LCD FEATURES | ||
LCD Type |
TFT TRANSMISSIVE |
|
Number of Dots |
480(RGB) x272 |
|
Active area (WxH) |
95.04x53.86 mm2 |
|
AV output interface | ||
Connector Type |
3.5 mm jack |
|
Video Output |
CVBS, |
|
Audio output |
Stereo Audio L/R output |
|
HDMI output connecter | ||
Format |
HDMI 1.3a |
|
AV input interface | ||
Connector Type |
3.5 mm jack |
|
Video input |
CVBS, |
|
Audio input |
Stereo Audio L/R input |
|
AUDIO/VIDEO PROCESSING | ||
Video decompression |
MPEG-2 MP@HL, MPEG-1 Decoding,MPEG-4 ASP@L5 HD resolution,H.264 MP&HP@L4,HW JPEG decoding |
|
Resolving rate |
PAL-25 frame@720*576,NTSC-30 frame@720*480, |
|
Signal compatibility |
Support conversion for different video formats |
|
Video Format |
4:3,16:9,By Pan & Scan and Letter Box conversion |
|
Audio decompression |
MPEG-1 Layer I/II ,MPEG-2 Layer I/II, |
|
Audio output mode |
Stereo, Mono,R/L |
|
DATA SERVICE PORT | ||
Connector |
USB |
|
Data protocol |
USB2.0 interface |
|
File management system |
NTFS,FAT32,FAT16 |
|
file format |
wma,mp3,mp4,avi,jpg,jpeg,bmp,img |
|
MICROPROCESSOR | ||
Microprocessor |
NOVATEK |
|
Clock Frequency |
500MHz |
|
SDRAM Memory |
1Gbit DDR3 |
|
Power SUPPLY | ||
Li-Ion Battery |
7.4V/3000mAh(The machine behind labeling shall prevail) |
|
Adapter |
OUTPUT :DC12V/1.5A, INTUPT :100-240VAC 50/60Hz(Will be subject to actual configuration) |
|
Power consumption |
Max. 10W |
|
PHYSICAL CHARACERSTICS | ||
Size (W x D x H) |
9.5x15.5x4.5(cm3) |
|
Net Weight |
1kg |
|
