horse feed pellet mill

Specifications

1.Capacity:8000--33000 kg/h;
2.High efficient one step gear driving;
3.Full stainless steel feeder;
4.High quality bearing.

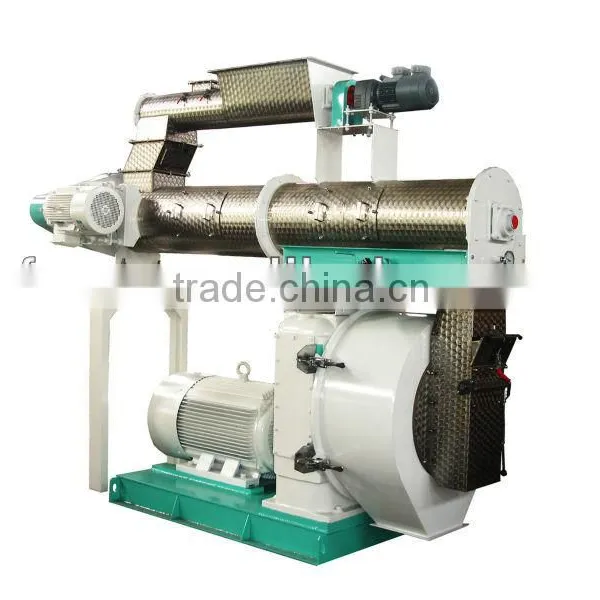

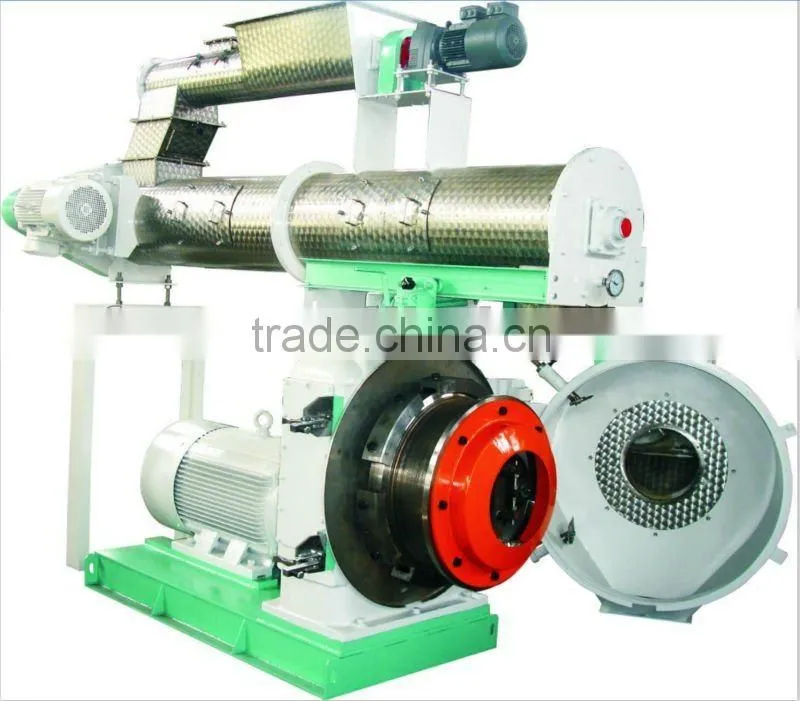

   Horse Feed Pellet Mill



we are a manufacturer & supplier of feed machines and complete plants founded in 2003.



we have passed ISO9001:2000 international quality standard.



welcome to visit our factory in china ,



or check our products on website.



All of our products are made to customers' request.



Illustrated catalogues are available.







Product Features:



1. High efficient one step gear driving ensures maximum utilization ratio of energy.



2. Full stainless steel feeder; Variable-pitch anti-arch structure; Imported frequency converter control.



3. LL stainless steel conditioner extends the conditioning and cooking time. Axial steam spraying port, improving feed cooking efficiency.



4.  High precision of driving main gear and pinion shaft adopt the carbonizing quenching and hard tooth surface grinding technology, resulting in smooth driving, low noise and long service life.



  5.  Bearing and oil seals of main driving system are well-know high quality bearing and oil seal such s SKF and etc...And a lubrication oil-return system is especially available to reliable lubrication of bearings.



 6. 3-pc quick removing type precisely-cast die clamp is adopted to connect the die and quill flange, resulting in convenient and quick remocing of die.



7. Pellet chamber door and feed chute are fully made of stainless steel with two-cutting knofe assembly, resulting in high anti-corrosion ability and long service life.



8. The connection between motor and gearbox adopts new-type S-shape spring coupling with more convenient disassembling and assembling and more reliable use.



9. Die and Roller have long service life.





Main Technical Data:



Model	Capacity(t/h)	Main Power(Kw)	Power of conditioner (Kw)	Power of feeder (Kw)	Inner Diameter of Die (mm)	Pellet Size(mm)
FCPM320	1-2	37	2.2	0.75	¢320	¢1.2-18
FCPM350	2-6	55	2.2/3	0.75	¢350	¢1.2-18
FCPM400	4-9	75/90	5.5/7.5	1.5	¢400	¢1.2-18
FCPM420	5-11	90/110	5.5/7.5	1.5	¢420	¢1.2-18
FCPM508	7-14	110/132/160	7.5/11	1.5	¢508	¢1.2-18
FCPM520	8-17	110/132/160	7.5/11	1.5	¢508	¢1.2-18
FCPM580	10-22	132/160/185	7.5/11	1.5	¢572	¢1.2-18
FCPM680	12-27	200/220/250	11/15	2.2	¢673	¢1.2-18
FCPM780	15-35	220/250/285	15	2.2	¢772	¢1.2-18



Our Machine:











FAQ:



1.Q:Are you a factory or trading company?
A:We are a factory .



2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Liyang City, Jiangsu Province, China, about 1 hour car from Nanjing .

All our clients, from home or abroad, are warmly welcome to visit us!





3.Q:How can I get some samples?
A: We are honored to offer you illustrated catalogues.
