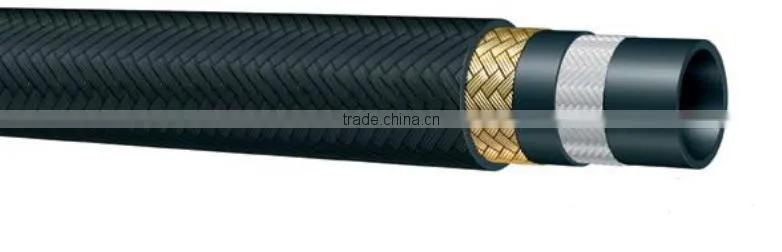

SAE 100 R4 hydraulic rubber hose

Name: SAE 100 R4 hydraulic rubber hose
Brand: MINGHOSE
Price: USD $0.99 - 99.9 / Meter

FOB Price

USD $0.99 - $99.9 / Meter

50 Meters(Min.Order)

Supply Ability 1000 Meter / Meters per Month
Port TIANJIN
Payment Terms:T/T L/C D/P D/A Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Hebei, China

Brand Name:

MINGHOSE

Model Number:

R1 R2 R3 R4 R5 R6 R12 R13

Product Description

SAE 100 R4 hydraulic rubber hose

SAE 100R4

Wire inserted hydraulic suction hose

Tube: Black, oil and heat resistant synthetic rubber.

Reinforcement: Spiral plied synthetic fabric with wire helix.

Cover: Black, oil, abrasion and weather resistant synthetic rubber (wrapped impression).

Temperature Range: -40 ℃ to +100℃

I.D.		O.D.		MAX WP		BEND RADIUS		WEIGHT
in.	mm.	in.	mm.	psi	Mpa	in.	mm.	lb./ft.	kg./m
3/4	19.05	1.37	34.9	300	2	5	127	0.39	0.58
1	25.4	1.62	41.3	250	1.7	6	152	0.65	0.97
1 1/4	31.75	2	50.8	200	1.4	8	203	0.98	1.46
1 1/2	38.1	2.25	57.2	150	1	10	254	1.11	1.66
2	50.8	2.75	69.9	100	0.7	12	305	1.08	1.61
2 1/2	63.5	3.25	82.6	100	0.7	14	356	1.88	2.8
3	76.2	3.75	95.3	100	0.7	18	457	2.2	3.37

SAE 100R5

Single wire braid, textile covered hydraulic hose

Tube: Oil resistant synthetic rubber

Reinforcement: a single wire braid

Cover: one fiber braided cover

Temperature range: -40 ℃ to +100 ℃

Hose ID		Wire OD	Hose OD	Working Pressure		Burst Pressure		Minimum bend radius	Weight
Inch	mm	mm	mm	Mpa	Psi	Mpa	Psi	mm	Kg/m
3/16	4.8	11	13.2	25	3630	100	14280	76	0.25
1/4	6.4	12	14.8	22.5	3270	90	12840	86	0.3
5/16	7.9	14.5	17.1	21.5	3120	85	12280	102	0.36
3/8	9.5	17	19.5	18	2610	72	10280	117	0.5
1/2	12.7	21	23.4	16	2320	64	9180	140	0.55
5/8	15.9	25	27.4	13	1890	52	7420	165	0.65
3/4	19.0	27.5	30	10.5	1530	42	6000	187	0.7
7/8	22.2	29	31.4	8.8	1280	35	5020	200	0.85
1	25.4	34	36	8.8	1280	35	5020	200	0.9
1-1/8	28.6	35.5	38.1	7	1015	28	2030	229	1.05
1-3/8	35	42	44.4	6	870	24	1740	267	1.25
1-13/16	46	54	56.4	5	725	20	1450	337	1.3
2-3/8	60	70.5	73	4	580	16	1160	610	2.0
3	76	88	90.5	2.5	80	10	1160	888	3.0

SAE 100R12

Heavy duty, high impulse, four spiral steel wire reinforced, rubber covered hydraulic hose

Tube: oil resistant synthetic rubber;

Reinforcement: four spiral plies of steel wire wrapped in alternating directions;

Cover: oil and weather resistant synthetic rubber.

Temperature:-40℃.to +121℃

Hose ID		Wire OD	Hose OD	Working Pressure		Burst Pressure		Minimum bend radius	Weight
inch	mm	mm	mm	Mpa	Psi	Mpa	Psi	mm	Kg/m
3/8	9.5	17.2	20.3	27.5	4000	110	16000	125	0.65
1/2	12.7	20.7	23.8	27.5	4000	110	16000	180	.085
5/8	15.9	24.6	27.4	27.5	4000	110	16000	200	1.3
3/4	19.0	27.7	30.7	27.5	4000	110	16000	240	1.5
1	25.4	34.9	38	27.5	4000	110	16000	300	2.0
1-1/4	31.8	43.9	47	20.7	3000	82.8	12000	420	2.9
1-1/2	38.1	50.4	53.5	17.2	2500	68.8	10000	500	3.3
2	50.8	63.7	66.7	17.2	2500	68.8	10000	630	4.9

SAE 100R13

Heavy duty, high impulse, multiple spiral steel wire reinforced, rubber covered hydraulic hose

Tube: oil resistant synthetic rubber;

Reinforcement: four or six spiral plies of steel wire wrapped in alternating directions;

Cover: oil and weather resistant synthetic rubber.

Temperature:-40℃.to +121℃

Hose ID		Wire OD	Hose OD	Working Pressure		Burst Pressure		Minimum bend radius	Weight
inch	mm	mm	mm	Mpa	Psi	Mpa	Psi	mm	Kg/m
3/4	19.0	28.4	32.1	34.5	5000	138	20000	240	1.7
1	25.4	34.8	38.7	34.5	5000	138	20000	300	2.25
1-1/4	31.8	47.5	50.2	34.5	5000	138	20000	420	3.9
1-1/2	38.1	52.5	57.7	34.5	5000	138	20000	500	5.1
2	50.8	68	71.5	34.5	5000	138	20000	630	7.9

Products images

Packaging & Shipping

Why choose us

1. We consistent good quality with reasonable price.
2. Stable production capacity(Our output each month can be 800,000 meters for hoses.)
3. Delivery in time.
4. Good quality control.
