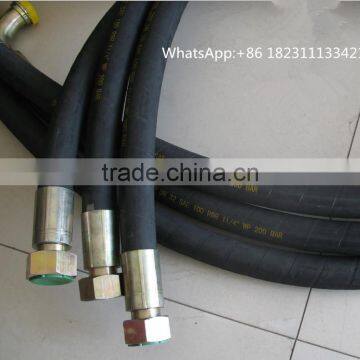

4 inch diameter rubber hose
SAE 100R4
Wire inserted hydraulic suction hose
Tube: Black, oil and heat resistant synthetic rubber.
Reinforcement: Spiral plied synthetic fabric with wire helix.
Cover: Black, oil, abrasion and weather resistant synthetic rubber (wrapped impression).
Temperature Range: -40 ℃ to +100℃
I.D. |
O.D. |
MAX WP |
BEND RADIUS |
WEIGHT |
|||||
in. |
mm. |
in. |
mm. |
psi |
Mpa |
in. |
mm. |
lb./ft. |
kg./m |
3/4 |
19.05 |
1.37 |
34.9 |
300 |
2 |
5 |
127 |
0.39 |
0.58 |
1 |
25.4 |
1.62 |
41.3 |
250 |
1.7 |
6 |
152 |
0.65 |
0.97 |
1 1/4 |
31.75 |
2 |
50.8 |
200 |
1.4 |
8 |
203 |
0.98 |
1.46 |
1 1/2 |
38.1 |
2.25 |
57.2 |
150 |
1 |
10 |
254 |
1.11 |
1.66 |
2 |
50.8 |
2.75 |
69.9 |
100 |
0.7 |
12 |
305 |
1.08 |
1.61 |
2 1/2 |
63.5 |
3.25 |
82.6 |
100 |
0.7 |
14 |
356 |
1.88 |
2.8 |
3 |
76.2 |
3.75 |
95.3 |
100 |
0.7 |
18 |
457 |
2.2 |
3.37 |
SAE 100R5
Single wire braid, textile covered hydraulic hose
Tube: Oil resistant synthetic rubber
Reinforcement: a single wire braid
Cover: one fiber braided cover
Temperature range: -40 ℃ to +100 ℃
Hose ID |
Wire OD |
Hose OD |
Working Pressure |
Burst Pressure |
Minimum bend radius |
Weight
|
|||
Inch |
mm |
mm |
mm |
Mpa |
Psi |
Mpa |
Psi |
mm |
Kg/m |
3/16 |
4.8 |
11 |
13.2 |
25 |
3630 |
100 |
14280 |
76 |
0.25 |
1/4 |
6.4 |
12 |
14.8 |
22.5 |
3270 |
90 |
12840 |
86 |
0.3 |
5/16 |
7.9 |
14.5 |
17.1 |
21.5 |
3120 |
85 |
12280 |
102 |
0.36 |
3/8 |
9.5 |
17 |
19.5 |
18 |
2610 |
72 |
10280 |
117 |
0.5 |
1/2 |
12.7 |
21 |
23.4 |
16 |
2320 |
64 |
9180 |
140 |
0.55 |
5/8 |
15.9 |
25 |
27.4 |
13 |
1890 |
52 |
7420 |
165 |
0.65 |
3/4 |
19.0 |
27.5 |
30 |
10.5 |
1530 |
42 |
6000 |
187 |
0.7 |
7/8 |
22.2 |
29 |
31.4 |
8.8 |
1280 |
35 |
5020 |
200 |
0.85 |
1 |
25.4 |
34 |
36 |
8.8 |
1280 |
35 |
5020 |
200 |
0.9 |
1-1/8 |
28.6 |
35.5 |
38.1 |
7 |
1015 |
28 |
2030 |
229 |
1.05 |
1-3/8 |
35 |
42 |
44.4 |
6 |
870 |
24 |
1740 |
267 |
1.25 |
1-13/16 |
46 |
54 |
56.4 |
5 |
725 |
20 |
1450 |
337 |
1.3 |
2-3/8 |
60 |
70.5 |
73 |
4 |
580 |
16 |
1160 |
610 |
2.0 |
3 |
76 |
88 |
90.5 |
2.5 |
80 |
10 |
1160 |
888 |
3.0 |
SAE 100R12
Heavy duty, high impulse, four spiral steel wire reinforced, rubber covered hydraulic hose
Tube: oil resistant synthetic rubber;
Reinforcement: four spiral plies of steel wire wrapped in alternating directions;
Cover: oil and weather resistant synthetic rubber.
Temperature:-40℃.to +121℃
Hose ID |
Wire OD |
Hose OD |
Working Pressure |
Burst Pressure |
Minimum bend radius |
Weight |
|||
inch |
mm |
mm |
mm |
Mpa |
Psi |
Mpa |
Psi |
mm |
Kg/m |
3/8 |
9.5 |
17.2 |
20.3 |
27.5 |
4000 |
110 |
16000 |
125 |
0.65 |
1/2 |
12.7 |
20.7 |
23.8 |
27.5 |
4000 |
110 |
16000 |
180 |
.085 |
5/8 |
15.9 |
24.6 |
27.4 |
27.5 |
4000 |
110 |
16000 |
200 |
1.3 |
3/4 |
19.0 |
27.7 |
30.7 |
27.5 |
4000 |
110 |
16000 |
240 |
1.5 |
1 |
25.4 |
34.9 |
38 |
27.5 |
4000 |
110 |
16000 |
300 |
2.0 |
1-1/4 |
31.8 |
43.9 |
47 |
20.7 |
3000 |
82.8 |
12000 |
420 |
2.9 |
1-1/2 |
38.1 |
50.4 |
53.5 |
17.2 |
2500 |
68.8 |
10000 |
500 |
3.3 |
2 |
50.8 |
63.7 |
66.7 |
17.2 |
2500 |
68.8 |
10000 |
630 |
4.9 |
SAE 100R13
Heavy duty, high impulse, multiple spiral steel wire reinforced, rubber covered hydraulic hose
Tube: oil resistant synthetic rubber;
Reinforcement: four or six spiral plies of steel wire wrapped in alternating directions;
Cover: oil and weather resistant synthetic rubber.
Temperature:-40℃.to +121℃
Hose ID |
Wire OD |
Hose OD |
Working Pressure |
Burst Pressure |
Minimum bend radius |
Weight |
|||
inch |
mm |
mm |
mm |
Mpa |
Psi |
Mpa |
Psi |
mm |
Kg/m |
3/4 |
19.0 |
28.4 |
32.1 |
34.5 |
5000 |
138 |
20000 |
240 |
1.7 |
1 |
25.4 |
34.8 |
38.7 |
34.5 |
5000 |
138 |
20000 |
300 |
2.25 |
1-1/4 |
31.8 |
47.5 |
50.2 |
34.5 |
5000 |
138 |
20000 |
420 |
3.9 |
1-1/2 |
38.1 |
52.5 |
57.7 |
34.5 |
5000 |
138 |
20000 |
500 |
5.1 |
2 |
50.8 |
68 |
71.5 |
34.5 |
5000 |
138 |
20000 |
630 |
7.9 |
1. We consistent good quality with reasonable price.
2. Stable production capacity(Our output each month can be 800,000 meters for hoses.)
3. Delivery in time.
4. Good quality control.
