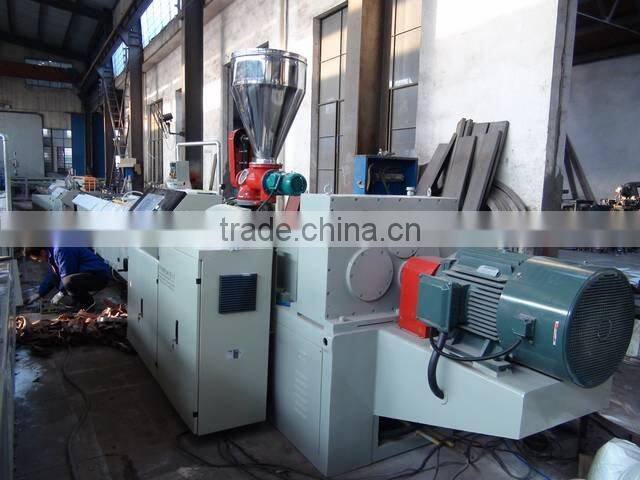

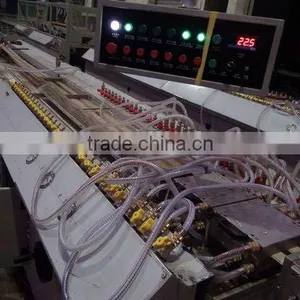

WPC Window and Door Profile Production Line

Screw diameter

51mm

L/D

25:1

Efficient length

1070mm

Motor power

18.5kw

Rotating speed of screw

1-32rpm

Heating power

12kw

Extrusion capacity

50-100kg/h

Center height

1000mm

Main Extruder speed adjusting way

Frequency conversion(Fuji inverter)

Feeding extruder speed adjusting way

Frequency conversion (Fuji inverter)

Barrel temperature adjusting way

Heating: cast aluminum heater

Cooling: 3 sections cooling by air

Main electric component

SIEMENS/Schneider

Temperature controller

OMRON/RKC

Weight

2300kg

Figure dimension

3500 x 1400 x 2300mm

Material of screw and barrel

38CrMoAlA Azotizing on surface 0.4~0.7mm

Rigidity: above 700 HV

Drive way

Hard tooth face gearbox

Vacuum exhaust system

1.5 kw  watering

Vacuum pump

4kw x 2

Water pump

4kw x 1

Lengthways motor

1.1kw cycloid and pin gear type

Vacuum quickly change fittings

20pcs.

Cooling water quickly change fittings

20pcs.

Adjusting manner

Tri-dimension adjusting

Calibrating platform guideway material and manner

Stainless steel, aluminum guideway

Vacuum rate

0-0.09Mpa

Lifting table’s adjusting manner

By hand

Dimension

4000 x 1100 x 1400mm

Traction speed

0.3-3 m/min

Power of traction motor

3 kw

Effective length of drive

1200 mm

Timing method of drive motor

Frequency conversion (Fuji inverter)

Center height

1000 mm

Air pressure

≥0.6 MPa

Dimension

1600 x 800 x 1400 mm

Power of cutter motor

2.2 kw

Air pressure

≥0.6 MPa

Cutting way

By saw

Dimension

1800 x 1000 x 1600 mm

Working manner

Pneumatic

Length

6m

Controlling method

Automatically

Compressed air pressure

≥0.6

Dimension

6000 x 800 x 1200mm
