Specifications
wood plastic profile production line1.Wood&PVC extruding
2.Twin screw extruder
3.Low power consumtion
4.SGS,CE,ISO9001:2008

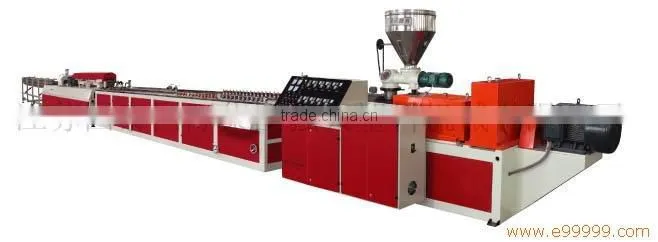

wood plastic profile production line
The door and window profile is widely used as window and door decorative material,which is made of wood&PVC powder. With modern technology and optimized design, it has the property of high output capacity, long life and plastic evently.
This production line is designed for extrusion of wood plastic door and window profiles and cross-section communication cable pipes, Aluminum-plastic composite profiles, etc. It has stable plastification, high output, low sheering force, long life service and other advantages. wpc profiles can be used in the building industry and home or office.
The production line consists of control system, conical twin screw extruder, extrusion die, calibration unit, haul-off unit, film covering machine and stacker. The extruder is equipped with alternating-current converter, imported temperature controllers. The calibration unit’s pump and haul-off unit’s reducer are the famous brand products.
After simple changing of the die and crew, it also become possible to produce foam profiles.
It has the characters of high quality, good plasticizing effect, lower power consumption.
Main Technical parameter
| Model | Max.Width mm | Extruder | Assistance Power | Output kg/h | Speed m/min |
| SY-180 | 180 | 51/105 | 22 | 80-100 | 0.6-6 |
| SY-240 | 240 | 65/132 | 28 | 180-240 | 3-3.5 |
| SY-300 | 300 | 80/172 | 34 | 300-350 | 4-5 |

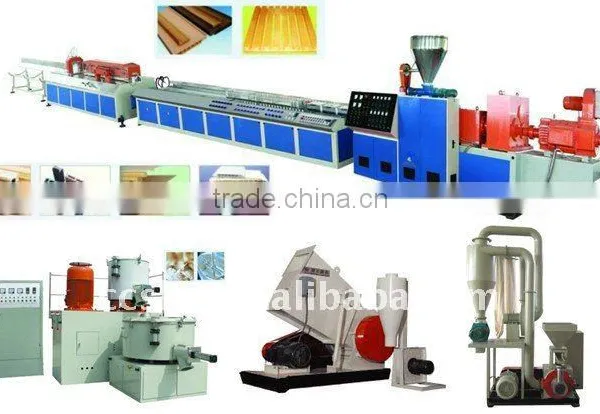

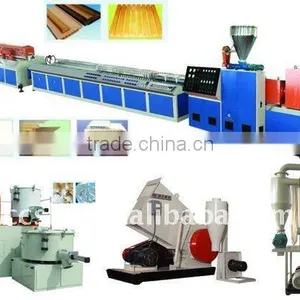

The whole production line includes the following major parts:
1.SRL-Z300/600 wood PVC high speed mixing machine
2.SJSZ-80/156 conical twin screw exruder
3.WPC profile moulds(extruding and forming,mould temperature controller)
4.Vacuum forming machine
5.Hauling off machine
6.Stacker
Pls note the above price excluding the moulds.
wood plastic profile production line
Twin conical screw extruder
Profile moulds
Vacuum forming table
Haul off machine
Cutting machine
wpc profile products
