Home > Products > Plastic Pipe Extrusion Line > extruder pipe production line
extruder pipe production line
- 10 Set / Sets per Month
- SHANGHAI
- T/T D/P D/A
Product Details
Condition: | New | Application: | Other, Pipe, supply and drain pipe | Plastic Processed: | PVC |
Screw Design: | Double-screw | Automatic Grade: | FULL AUTOMATIC | Place of Origin: | Jiangsu, China |
Brand Name: | CHICHENG | Model Number: | SJGF | Voltage: | 220V/380V/415V |
Power(W): | According to the model | Dimension(L*W*H): | According to the model | Weight: | According to the model |
Certification: | CE&ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
extruder pipe production line
PVC PIPE EXTRUSION MACHINE
PVC PIPE PRODUCTION LINE
PVC WATER SUPPLY PIPE EXTRUSION LINE
Features and application:

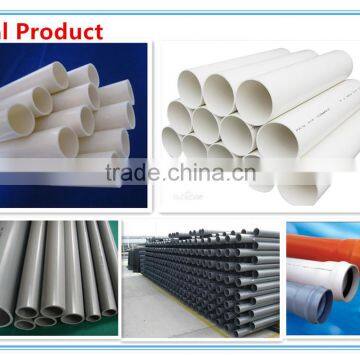

1. PVC pipes of various diameters and wall thickness are used in the agricultural and constructional plumbing, cable protection, etc.

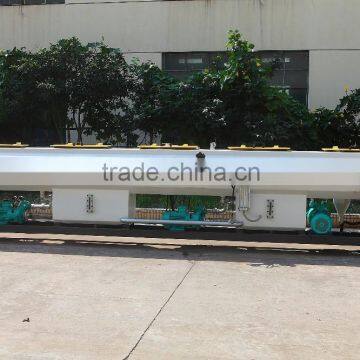

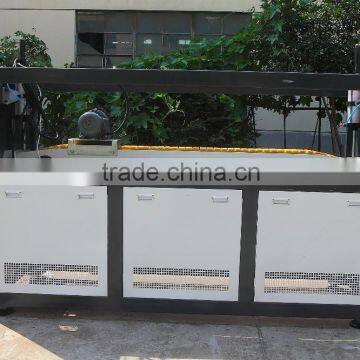

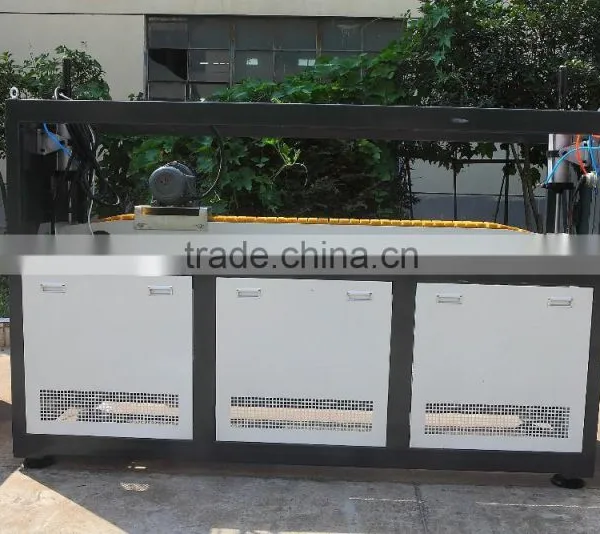

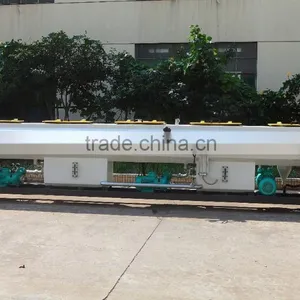

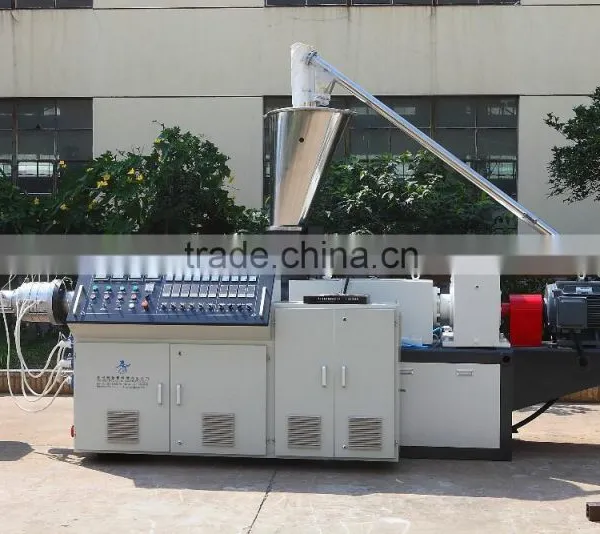

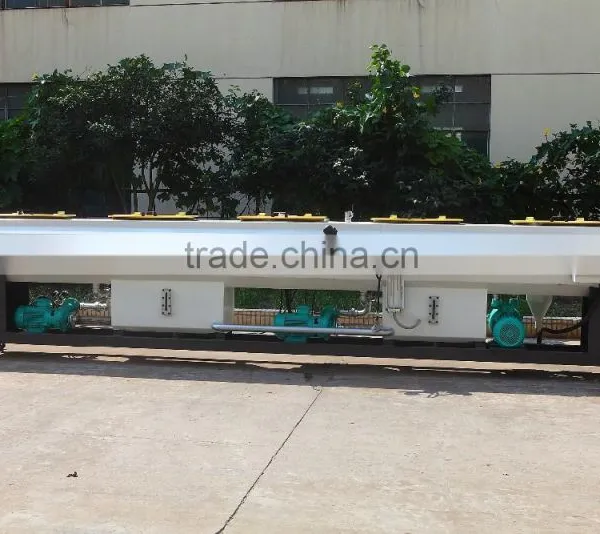

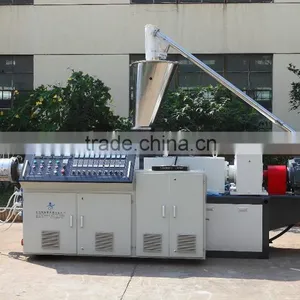

2. This line consists of the conical twin-screw extruder, a vacuum forming machine, a traction machine, a cutter, etc. The twin-screw extruder and the traction machine are equipped famous brand AC frequency converting control device. The vacuum pump and the electric motor employ products of good quality. The traction machine works by caterpillars of 2, 3, 4 or 6.

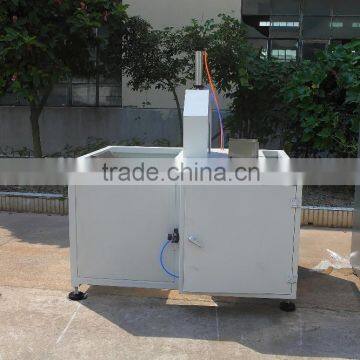

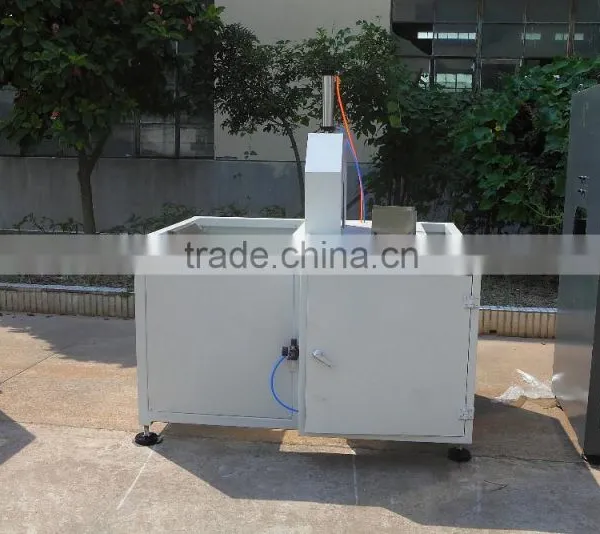

3. Two cutting types: saw blade cutting or planet cutting. Length measuring apparatus and the intensifying device can be attached.
4. Stable performance and high production efficiency.
5. Optional devices: pipe end expanding device, spiral muffler tube making unit and core foaming tube making unit as required.
pipe production line
pvc pipe production line
plastic pipe extrusion line
Model number GF-16/63 GF-20/110 GF-50/160 GF-75/250 GF-110/315 GF-200/450 GF-315/630 Pipe diameter 16-63mm 20-110mm 50-160mm 75-250mm 110-315mm 200-450mm 315-630mm Max output 120kg/h 120kg/h 180kg/h 300kg/h 450kg/h 650kg/h 800kg/h Production rate 1.5-15m/min 0.8-8m/min 0.5-5m/min 0.4-4m/min 0.3-2m/min 0.1-1m/min 0.07-0.7m/min Extruder model SJZ-50/105 SJZ-50/105 SJZ-55/110 SJZ-65/132 SJZ-80/156 SJZ-92/188 SJZ-92/188 Installed power 45kw 45kw 55kw 75kw 105kw 160kw 205kw Center height 1000mm 1000mm 1000mm 1000mm 1100mm 1100mm 1200mm Installation area 22*2.5*2.0m 24*2.8*2.0m 24*2.8*2.0m 30*2.8*2.2m 35*3.0*2.4 m 36*3.0*2.4 m 38*3.2*2.8 m
Our corporation is a major producer of plastic extruder.We are in a position to accept orders against customers samples specifying design, specifications and packaging requirements. Welcome to inquiry,looking forward to cooperating with you in long terms!!!
Contact Us
- Suzhou New Chicheng Machinery Co., Ltd.
- Contact nameLily WU
- Phone0086-512-58603188
- AddressHongfu Village, Jinfeng Town, Zhangjiagang
