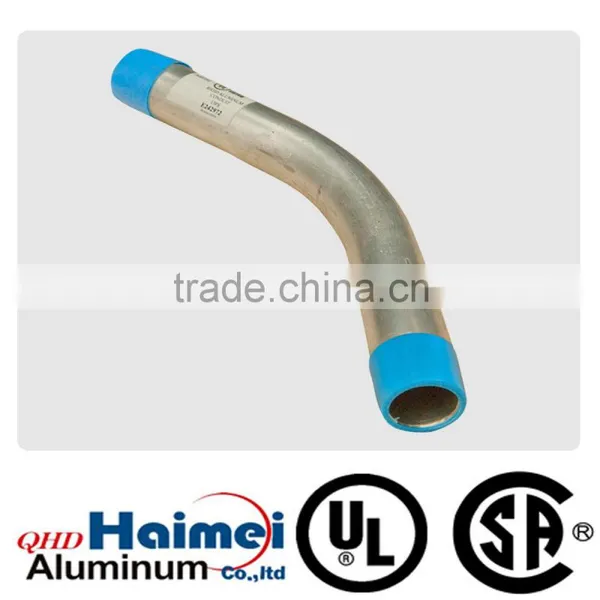

Help Center45 Degree Elbow Aluminum Profile
Related Products

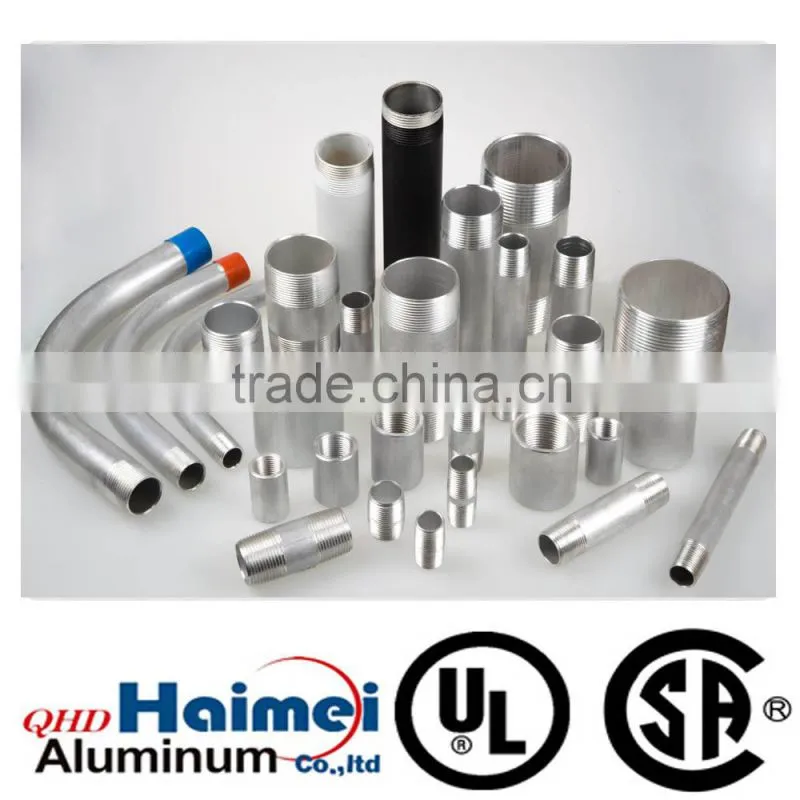

HaiMei Rigid Aluminum Conduits and Accessories are manufactured from 6063 aluminum alloy. They meet the Underwriters Laboratories Standard for Electrical Metal Conduit – Aluminum Bronze & Stainless Steel, UL6A. This product is especially suited for applications and installations requiring light weight, highly corrosive resistant, and non-magnetic protection. The series of our products are manufactured in standard trade size from 1/2" to 6" and include conduits, elbows (90o and 45o), couplings, and nipples.
• 6063 Aluminum Alloy
• Available 1/2 "to 6"
• NPT thread on each end
| Trade Size | Approxinate Weight | Nominal Diameter | |||||||
| Desingnator | per100Ft(30.5) | A | B | C | |||||
| U.S. | Metric | Ib. | Kg. | in. | mm. | in. | mm. | in. | mm. |
| 1/2 | 16 | 26 | 11.7 | 4.00 | 101.6 | 6.50 | 165.1 | 2.50 | 63.5 |
| 3/4 | 21 | 37 | 16.7 | 4.50 | 114.3 | 7.25 | 184.2 | 2.75 | 69.9 |
| 1 | 27 | 63 | 28.7 | 5.75 | 146.1 | 8.375 | 212.7 | 2.875 | 73.0 |
| 1-1/4 | 35 | 103 | 46.7 | 7.25 | 184.2 | 10.25 | 260.6 | 3.00 | 76.2 |
| 1-1/2 | 41 | 143 | 65.0 | 8.25 | 209.6 | 11.875 | 301.6 | 3.625 | 92.1 |
| 2 | 53 | 228 | 103.3 | 9.50 | 241.3 | 14.00 | 355.6 | 4.50 | 114.3 |
| 2-1/2 | 63 | 375 | 170.0 | 10.50 | 266.7 | 15.75 | 400.1 | 5.25 | 133.4 |
| 3 | 78 | 592 | 268.7 | 13.00 | 330.2 | 18.75 | 476.3 | 5.75 | 146.1 |
| 3-1/2 | 91 | 842 | 381.7 | 15.00 | 381.0 | 21.75 | 552.5 | 6.75 | 171.5 |
| 4 | 103 | 1084 | 491.7 | 16.00 | 406.4 | 23.00 | 584.2 | 7.00 | 177.8 |
| 5 | 129 | 2331 | 1058.0 | 24.00 | 609.6 | 36.00 | 914.4 | 11.00 | 279.4 |
| 6 | 155 | 3721 | 1688.0 | 30.00 | 762.0 | 42.50 | 1079.5 | 12.50 | 317.5 |
Specification Data:
Alloy: HaiMei Rigid Aluminum Conduit and Accessories are manufactured from 6063 Aluminum alloy.
Standard: Haimei Rigid Aluminum Conduit and Accessories are listed by Underwriters Laboratories Standard for Electrical Metal Conduit – Aluminum Bronze & Stainless Steel, UL6A.( certify No.
E 310429)

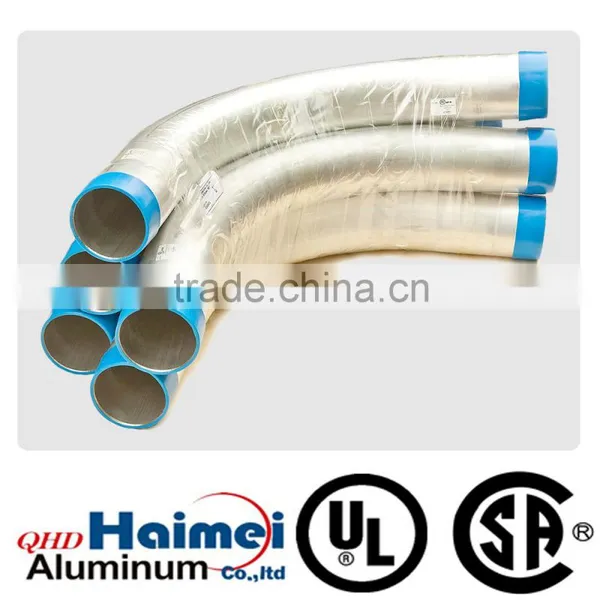

Thread Protection: Haimei Rigid Aluminum Conduit is shipped with a coupling on one end and a color-coded thread protector on the other end . Color-coded end caps keep threads clean and sharp and help provide trade size recognition.
Features :
1. Light Weight: Rigid Aluminum Conduit is approximately one third weight of the steel
2. Corrosion Resistant: Aluminum resists most corrosive atmospheres in industrial environments (corrosion, moisture, and physical damage)
3. Easy To Install: Aluminum Conduit can be easily cut ,bent and threaded without special tools
4. Low Maintenance: Aluminum Conduit does not corrode or leave discoloring streaks and stains .
5. Non-sparking: Aluminum Conduit is non-sparking, eliminating a hazard in explosive atmospheres.
6. Nonmagnetic : Aluminum Conduit reduces power loss due to voltage drop ,resulting in power savings throughout the life of installation.
General Headquarters:
Post Address:No.158 Wenhua Road Haigang District Qinhuangdao Hebei Province,China
Factory Address:Changli Gold Coast,Qinhuangdao,Hebei
Telephone No: +86-335-5948600
Fax No:+86-335-3028323
Calling after Working Time: +86-13933651027 (Cinderella Liu)
Send Inquiry to This Supplier
