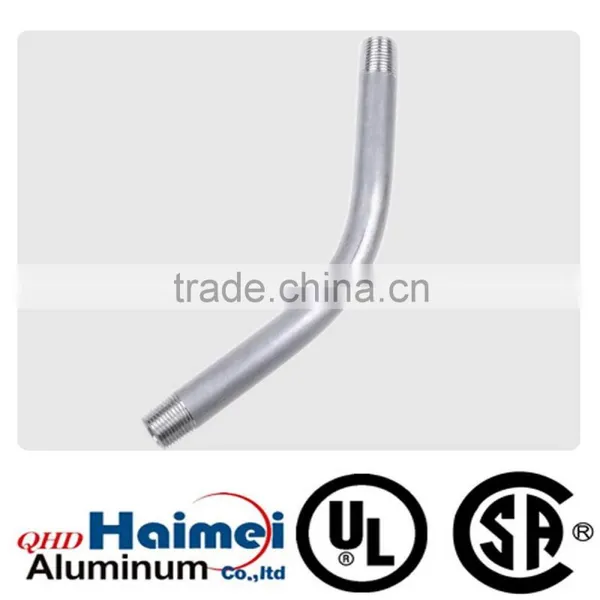

Help CenterRigid Aluminum 135 Degree Elbow
Related Products
-
Aluminum 135 Degree ElbowsUS$ 0.65 - 95.42MOQ: 1 Piece -
UL Listed Aluminum 45 Degree ElbowUS$ 0.65 - 96.31MOQ: 1 Piece
-
Rigid Aluminum Conduit Elbow UL ApprovedUS$ 0.64 - 94.32MOQ: 1 Piece
-
ul Approved Electrical Rigid Aluminum Conduit Pipe ElbowUS$ 0.64 - 94.32MOQ: 1 Piece
-
1/2" UL Approved 45 Degree Elbow Conduit FittingUS$ 0.64 - 0.93MOQ: 1 Piece

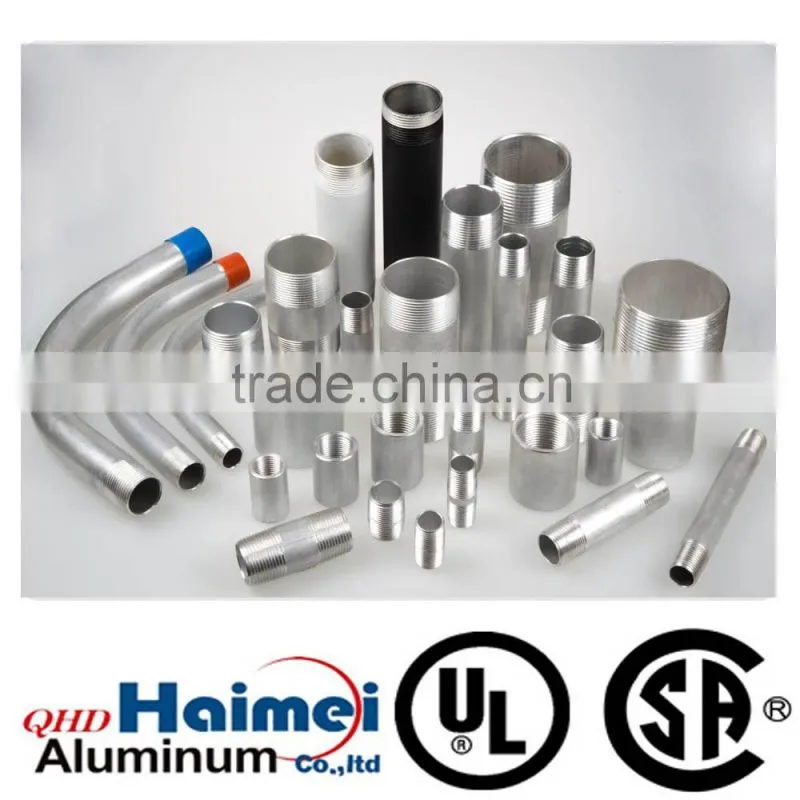

HaiMei Rigid Aluminum Conduits and Accessories are manufactured from 6063 aluminum alloy. They meet the Underwriters Laboratories Standard for Electrical Metal Conduit – Aluminum Bronze & Stainless Steel, UL6A. This product is especially suited for applications and installations requiring light weight, highly corrosive resistant, and non-magnetic protection. The series of our products are manufactured in standard trade size from 1/2" to 6" and include conduits, elbows (90o and 45o), couplings, and nipples.
• 6063 Aluminum Alloy
• Available 1/2 "to 6"
• NPT thread on each end
| Trade Size | Approxinate Weight | Nominal Diameter | |||||||
| Desingnator | per100Ft(30.5) | A | B | C | |||||
| U.S. | Metric | Ib. | Kg. | in. | mm. | in. | mm. | in. | mm. |
| 1/2 | 16 | 26 | 11.7 | 4.00 | 101.6 | 6.50 | 165.1 | 2.50 | 63.5 |
| 3/4 | 21 | 37 | 16.7 | 4.50 | 114.3 | 7.25 | 184.2 | 2.75 | 69.9 |
| 1 | 27 | 63 | 28.7 | 5.75 | 146.1 | 8.375 | 212.7 | 2.875 | 73.0 |
| 1-1/4 | 35 | 103 | 46.7 | 7.25 | 184.2 | 10.25 | 260.6 | 3.00 | 76.2 |
| 1-1/2 | 41 | 143 | 65.0 | 8.25 | 209.6 | 11.875 | 301.6 | 3.625 | 92.1 |
| 2 | 53 | 228 | 103.3 | 9.50 | 241.3 | 14.00 | 355.6 | 4.50 | 114.3 |
| 2-1/2 | 63 | 375 | 170.0 | 10.50 | 266.7 | 15.75 | 400.1 | 5.25 | 133.4 |
| 3 | 78 | 592 | 268.7 | 13.00 | 330.2 | 18.75 | 476.3 | 5.75 | 146.1 |
| 3-1/2 | 91 | 842 | 381.7 | 15.00 | 381.0 | 21.75 | 552.5 | 6.75 | 171.5 |
| 4 | 103 | 1084 | 491.7 | 16.00 | 406.4 | 23.00 | 584.2 | 7.00 | 177.8 |
| 5 | 129 | 2331 | 1058.0 | 24.00 | 609.6 | 36.00 | 914.4 | 11.00 | 279.4 |
| 6 | 155 | 3721 | 1688.0 | 30.00 | 762.0 | 42.50 | 1079.5 | 12.50 | 317.5 |
Packaging Detail |
standard packing / genuine packing / as per customer's packing instruction |
Delivery Detail |
15 ~ 30 days after receiving the deposit |
Only Haimei Rigid Aluminum Conduit Offers 2 Ways to Save on Every Job
1.Lower Upfront Material Cost
| Percent Material Savings for Aluminum vs Galvanized |
size |
%Savings |
1/2” |
15% |
3/4” |
8% |
1" |
12% |
1 1/4” |
14% |
1 1/2” |
9% |
2" |
9% |
2 1/2” |
21% |
3" |
15% |
3 1/2” |
12% |
4" |
11% |
5" |
38% |
6" |
44% |
2.Less Installation Labor
| Persent Installation Labor Savings for Aluminum vs Galvanized |
| Size | Laid in Trench | 12"ceiling | 16"ceiling | 20"ceiling |
| 1 1/4" | 34.9% | 32.6% | 32.2% | 35.3% |
| 1 1/2" | 46.9% | 48.1% | 47.7% | 46.9% |
| 2" | 59.7% | 57.1% | 55.3% | 57.1% |
| 2 1/2" | 59.1% | 58.2% | 59.1% | 57.1% |
| 3" | 57.1% | 58.1% | 57.1% | 57.6% |
| 3 1/2" | 72.4% | 71.2% | 58.2% | 57.9% |
| 4" | 73.1% | 71.5% | 71.4% | 70.2% |
| 5" | 72.4% | 70.8% | 70.0% | 71.4% |
| 6" | 71.4% | 71.0% | 70.3% | 70.0% |
Are you a trading company or manufacturer? |
Manufacturer with factory |
What kinds of filter do you produce? |
It covers for air filter,oil filter,fuel filter for car and truck |
Is Customized filter available? |
Yes,please offer your required specifications and drawing |
Do you Accept OEM service? |
YES! |
what’s your delivery terms? |
FOB (2)CFR (3)CIF |
What's your Delivery Time? |
1)generally the samples will be sent immediately by the air express in 3-5 days if the goods are in stock |
2)Normally within 30 days,please confirm with us before order! | |
What's the Payment Terms? |
Usually,30% as deposit,70% before shipment by T/T |
Western Union acceptable for small amount. | |
L/C acceptable for large amount. | |
Scrow ,Paybal,Alipay are also ok | |
How you pack products? |
Normally,plastic bag inside and carton outside .We'll do according to customers' requirement |
What's your available port of Shipment? |
Normally, Tianjin Other ports available but you should afford extra charges. |
Trade and Market |
Main Market Western European 20% |
