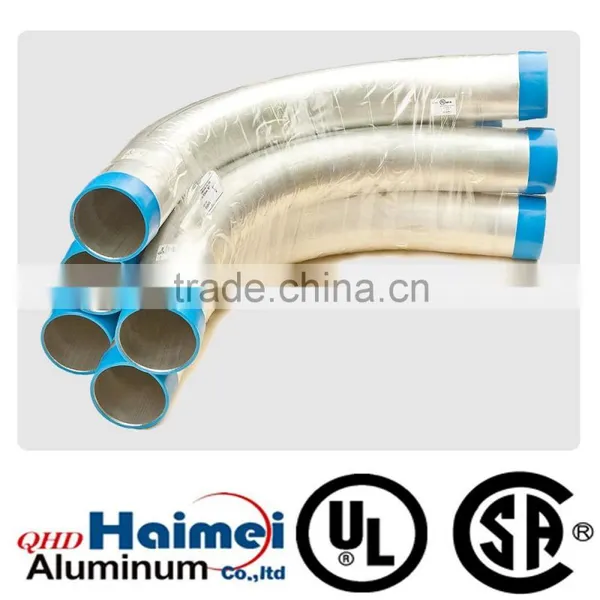

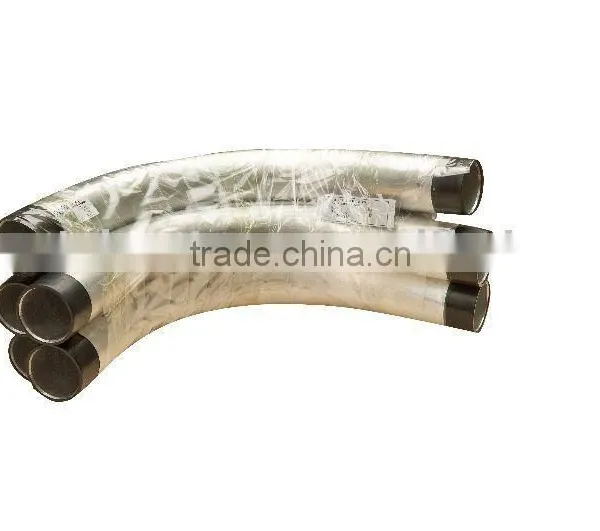

Help Center1/2" UL Approved Rigid Aluminum Conduit 45 Degree Elbow
Related Products
-
3/4" UL Approved Rigid Aluminum Conduit 45 Degree ElbowsUS$ 0.82 - 1.18MOQ: 1 Piece -
Electrical Conduit/ EMT Aluminum Elbow 90 DegreeUS$ 0.69 - 96.31MOQ: 1 Piece
-
1-1/2" UL Approved Electrical Rigid Aluminum Conduit Elbows 45 DegreeUS$ 2.62 - 3.77MOQ: 1 Piece
-
1- 1/4" UL Approved Rigid Aluminum Conduit 45 Degree Threaded ElbowUS$ 0.5 - 11MOQ: 1 Piece
-
UL Approved Rigid Aluminum Conduit ElbowUS$ 1 - 50MOQ: 1000 Pieces
Qinhuangdao Haimei Aluminum Co.,Ltd. (Haimei) specializes in manufacturing Aluminum products including Rigid Conduits, Elbows, Couplings and Nipples. All the products have been listed by UL and cUL (File No.: E310429) .
The deep knowledge and extensive experience of our engineering team in the field of metal processing have made Haimei's aluminum products the best in the world in terms of cost and quality. Our products are widely recognized by customers from North America, Europe, Asia and Africa, and were utilized in various projects such as power plant, water treatment facility, and paper mills. All of our customers have benefited from and satisfied with Haimei's low-cost and high-quality aluminum products. We received NONE complaint in the past six years.
Haimei is looking forward to fulfilling your need and creating win-win partnership.
Specification Data:
Alloy: HaiMei Rigid Aluminum Conduit and Accessories are manufactured from 6063 Aluminum alloy.
Standard: Haimei Rigid Aluminum Conduit and Accessories are listed by Underwriters Laboratories Standard for Electrical Metal Conduit – Aluminum Bronze & Stainless Steel, UL6A.( certify No.
E 310429)
Thread Protection: Haimei Rigid Aluminum Conduit is shipped with a coupling on one end and a color-coded thread protector on the other end . Color-coded end caps keep threads clean and sharp and help provide trade size recognition.
Features :
1. Light Weight: Rigid Aluminum Conduit is approximately one third weight of the steel
2. Corrosion Resistant: Aluminum resists most corrosive atmospheres in industrial environments (corrosion, moisture, and physical damage)
3. Easy To Install: Aluminum Conduit can be easily cut ,bent and threaded without special tools
4. Low Maintenance: Aluminum Conduit does not corrode or leave discoloring streaks and stains .
5. Non-sparking: Aluminum Conduit is non-sparking, eliminating a hazard in explosive atmospheres.
6. Nonmagnetic : Aluminum Conduit reduces power loss due to voltage drop ,resulting in power savings throughout the life of installation.
| Trade Size | Approxinate Weight | Nominal Diameter | |||||||
| Desingnator | per100Ft(30.5) | A | B | C | |||||
| U.S. | Metric | Ib. | Kg. | in. | mm. | in. | mm. | in. | mm. |
| 1/2 | 16 | 26 | 11.7 | 4.00 | 101.6 | 6.50 | 165.1 | 2.50 | 63.5 |
| 3/4 | 21 | 37 | 16.7 | 4.50 | 114.3 | 7.25 | 184.2 | 2.75 | 69.9 |
| 1 | 27 | 63 | 28.7 | 5.75 | 146.1 | 8.375 | 212.7 | 2.875 | 73.0 |
| 1-1/4 | 35 | 103 | 46.7 | 7.25 | 184.2 | 10.25 | 260.6 | 3.00 | 76.2 |
| 1-1/2 | 41 | 143 | 65.0 | 8.25 | 209.6 | 11.875 | 301.6 | 3.625 | 92.1 |
| 2 | 53 | 228 | 103.3 | 9.50 | 241.3 | 14.00 | 355.6 | 4.50 | 114.3 |
| 2-1/2 | 63 | 375 | 170.0 | 10.50 | 266.7 | 15.75 | 400.1 | 5.25 | 133.4 |
| 3 | 78 | 592 | 268.7 | 13.00 | 330.2 | 18.75 | 476.3 | 5.75 | 146.1 |
| 3-1/2 | 91 | 842 | 381.7 | 15.00 | 381.0 | 21.75 | 552.5 | 6.75 | 171.5 |
| 4 | 103 | 1084 | 491.7 | 16.00 | 406.4 | 23.00 | 584.2 | 7.00 | 177.8 |
| 5 | 129 | 2331 | 1058.0 | 24.00 | 609.6 | 36.00 | 914.4 | 11.00 | 279.4 |
| 6 | 155 | 3721 | 1688.0 | 30.00 | 762.0 | 42.50 | 1079.5 | 12.50 | 317.5 |
Haimei customer service philosophy can be summed up in two words ,”Service & Quality”. We are dedicated to servicing the needs of our customers. We believe there is no substitute for direct personal communication . Our teams understand our customers’ service needs and product requirements . We offer great quality products and we aggressively pursue faster and more efficient techniques to improve the cost and quality of those products.
