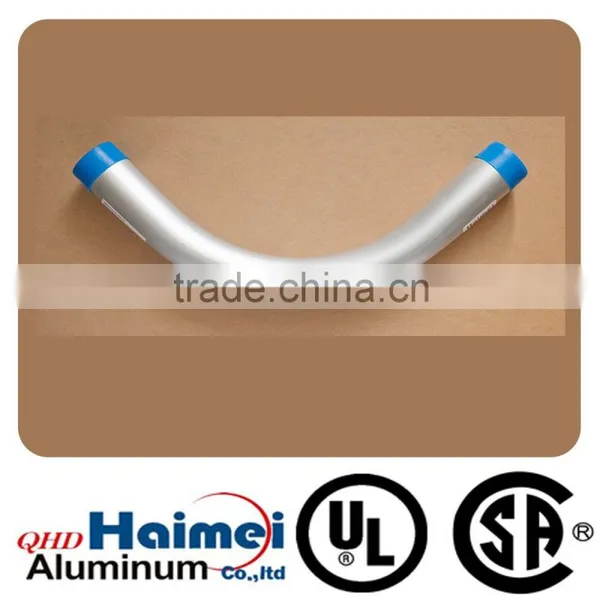

UL LISTED E310429 ALUMINUM ELBOW
- 6000 Ton / Tons per Month
- Tianjin Xingang Port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | HAIMEI | |
| Model Number | alu | Type | Other, rigid | |
| Material | Other, ALUMINUM |
Product Description
Qinhuangdao Haimei Aluminum Co.,Ltd. (Haimei) specializes in manufacturing Aluminum products including Rigid Conduits, Elbows, Couplings and Nipples. All the products have been listed by UL and cUL (File No.: E310429) .
The deep knowledge and extensive experience of our engineering team in the field of metal processing have made Haimei's aluminum products the best in the world in terms of cost and quality. Our products are widely recognized by customers from North America, Europe, Asia and Africa, and were utilized in various projects such as power plant, water treatment facility, and paper mills. All of our customers have benefited from and satisfied with Haimei's low-cost and high-quality aluminum products. We received NONE complaint in the past six years.
Haimei is looking forward to fulfilling your need and creating win-win partnership.
| Trade Size | Approxinate Weight | Nominal Diameter | |||||||
| Desingnator | per100Ft(30.5) | A | B | C | |||||
| U.S. | Metric | Ib. | Kg. | in. | mm. | in. | mm. | in. | mm. |
| 1/2 | 16 | 26 | 11.7 | 4.00 | 101.6 | 6.50 | 165.1 | 2.50 | 63.5 |
| 3/4 | 21 | 37 | 16.7 | 4.50 | 114.3 | 7.25 | 184.2 | 2.75 | 69.9 |
| 1 | 27 | 63 | 28.7 | 5.75 | 146.1 | 8.375 | 212.7 | 2.875 | 73.0 |
| 1-1/4 | 35 | 103 | 46.7 | 7.25 | 184.2 | 10.25 | 260.6 | 3.00 | 76.2 |
| 1-1/2 | 41 | 143 | 65.0 | 8.25 | 209.6 | 11.875 | 301.6 | 3.625 | 92.1 |
| 2 | 53 | 228 | 103.3 | 9.50 | 241.3 | 14.00 | 355.6 | 4.50 | 114.3 |
| 2-1/2 | 63 | 375 | 170.0 | 10.50 | 266.7 | 15.75 | 400.1 | 5.25 | 133.4 |
| 3 | 78 | 592 | 268.7 | 13.00 | 330.2 | 18.75 | 476.3 | 5.75 | 146.1 |
| 3-1/2 | 91 | 842 | 381.7 | 15.00 | 381.0 | 21.75 | 552.5 | 6.75 | 171.5 |
| 4 | 103 | 1084 | 491.7 | 16.00 | 406.4 | 23.00 | 584.2 | 7.00 | 177.8 |
| 5 | 129 | 2331 | 1058.0 | 24.00 | 609.6 | 36.00 | 914.4 | 11.00 | 279.4 |
| 6 | 155 | 3721 | 1688.0 | 30.00 | 762.0 | 42.50 | 1079.5 | 12.50 | 317.5 |
Only Haimei Rigid Aluminum Conduit Offers 2 Ways to Save on Every Job
1.Lower Upfront Material Cost
| Percent Material Savings for Aluminum vs Galvanized |
size | %Savings |
1/2” | 15% |
3/4” | 8% |
1" | 12% |
1 1/4” | 14% |
1 1/2” | 9% |
2" | 9% |
2 1/2” | 21% |
3" | 15% |
3 1/2” | 12% |
4" | 11% |
5" | 38% |
6" | 44% |
2.Less Installation Labor
| Persent Installation Labor Savings for Aluminum vs Galvanized |
| Size | Laid in Trench | 12"ceiling | 16"ceiling | 20"ceiling |
| 1 1/4" | 34.9% | 32.6% | 32.2% | 35.3% |
| 1 1/2" | 46.9% | 48.1% | 47.7% | 46.9% |
| 2" | 59.7% | 57.1% | 55.3% | 57.1% |
| 2 1/2" | 59.1% | 58.2% | 59.1% | 57.1% |
| 3" | 57.1% | 58.1% | 57.1% | 57.6% |
| 3 1/2" | 72.4% | 71.2% | 58.2% | 57.9% |
| 4" | 73.1% | 71.5% | 71.4% | 70.2% |
| 5" | 72.4% | 70.8% | 70.0% | 71.4% |
| 6" | 71.4% | 71.0% | 70.3% | 70.0% |
Packaging Detail | standard packing / genuine packing / as per customer's packing instruction |
Delivery Detail | 15 ~ 30 days after receiving the deposit |
