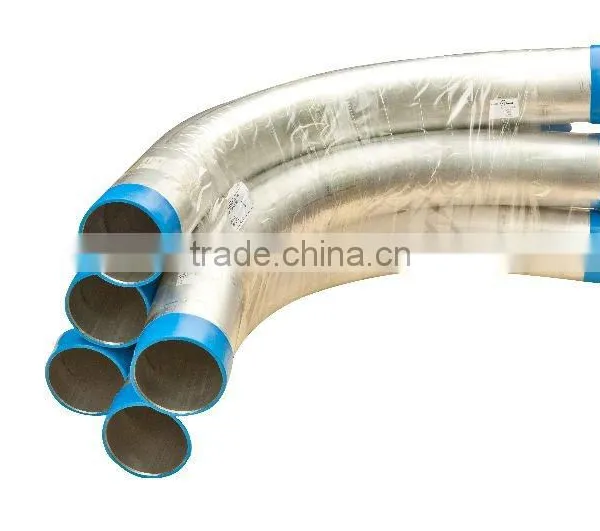

Help CenterRIGID ALUMINUM ELBOW 90 DEGREE
Related Products
-
0.25 Inch UL 90 Degree Rigid Aluminum ElbowUS$ 65.35 - 96.54MOQ: 1 Piece -
UL 6063 Standard 1/2''to 6'' Rigid Aluminum 90 Degree ElbowsUS$ 0.65 - 98.21MOQ: 1 Piece
-
UL Approved Rigid Aluminum 90 Degree ElbowsUS$ 0.64 - 93.32MOQ: 1 Piece
-
Electrical Rigid Aluminum 90 Degree ElbowsUS$ 0.69 - 96.41MOQ: 1 Piece
-
UL Approved Rigid Aluminum Pipe Fittings ElbowUS$ 0.69 - 98.35MOQ: 1 Piece
Qinhuangdao Haimei Aluminum Co.,Ltd. (Haimei) specializes in manufacturing Aluminum products including Rigid Conduits, Elbows, Couplings and Nipples. All the products have been listed by UL and cUL (File No.: E310429) .
The deep knowledge and extensive experience of our engineering team in the field of metal processing have made Haimei's aluminum products the best in the world in terms of cost and quality. Our products are widely recognized by customers from North America, Europe, Asia and Africa, and were utilized in various projects such as power plant, water treatment facility, and paper mills. All of our customers have benefited from and satisfied with Haimei's low-cost and high-quality aluminum products. We received NONE complaint in the past six years.
Haimei is looking forward to fulfilling your need and creating win-win partnership.
Specification Data:
Alloy: HaiMei Rigid Aluminum Conduit and Accessories are manufactured from 6063 Aluminum alloy.
Standard: Haimei Rigid Aluminum Conduit and Accessories are listed by Underwriters Laboratories Standard for Electrical Metal Conduit – Aluminum Bronze & Stainless Steel, UL6A.( certify No.
E 310429)
Thread Protection: Haimei Rigid Aluminum Conduit is shipped with a coupling on one end and a color-coded thread protector on the other end . Color-coded end caps keep threads clean and sharp and help provide trade size recognition.
Features :
1. Light Weight: Rigid Aluminum Conduit is approximately one third weight of the steel
2. Corrosion Resistant: Aluminum resists most corrosive atmospheres in industrial environments (corrosion, moisture, and physical damage)
3. Easy To Install: Aluminum Conduit can be easily cut ,bent and threaded without special tools
4. Low Maintenance: Aluminum Conduit does not corrode or leave discoloring streaks and stains .
5. Non-sparking: Aluminum Conduit is non-sparking, eliminating a hazard in explosive atmospheres.
6. Nonmagnetic : Aluminum Conduit reduces power loss due to voltage drop ,resulting in power savings throughout the life of installation.
| Trade Size | Approxinate Weight | Nominal Diameter | |||||||
| Desingnator | per100Ft(30.5) | A | B | C | |||||
| U.S. | Metric | Ib. | Kg. | in. | mm. | in. | mm. | in. | mm. |
| 1/2 | 16 | 26 | 11.7 | 4.00 | 101.6 | 6.50 | 165.1 | 2.50 | 63.5 |
| 3/4 | 21 | 37 | 16.7 | 4.50 | 114.3 | 7.25 | 184.2 | 2.75 | 69.9 |
| 1 | 27 | 63 | 28.7 | 5.75 | 146.1 | 8.375 | 212.7 | 2.875 | 73.0 |
| 1-1/4 | 35 | 103 | 46.7 | 7.25 | 184.2 | 10.25 | 260.6 | 3.00 | 76.2 |
| 1-1/2 | 41 | 143 | 65.0 | 8.25 | 209.6 | 11.875 | 301.6 | 3.625 | 92.1 |
| 2 | 53 | 228 | 103.3 | 9.50 | 241.3 | 14.00 | 355.6 | 4.50 | 114.3 |
| 2-1/2 | 63 | 375 | 170.0 | 10.50 | 266.7 | 15.75 | 400.1 | 5.25 | 133.4 |
| 3 | 78 | 592 | 268.7 | 13.00 | 330.2 | 18.75 | 476.3 | 5.75 | 146.1 |
| 3-1/2 | 91 | 842 | 381.7 | 15.00 | 381.0 | 21.75 | 552.5 | 6.75 | 171.5 |
| 4 | 103 | 1084 | 491.7 | 16.00 | 406.4 | 23.00 | 584.2 | 7.00 | 177.8 |
| 5 | 129 | 2331 | 1058.0 | 24.00 | 609.6 | 36.00 | 914.4 | 11.00 | 279.4 |
| 6 | 155 | 3721 | 1688.0 | 30.00 | 762.0 | 42.50 | 1079.5 | 12.50 | 317.5 |
Only Haimei Rigid Aluminum Conduit Offers 2 Ways to Save on Every Job
1.Lower Upfront Material Cost
| Percent Material Savings for Aluminum vs Galvanized |
size |
%Savings |
1/2” |
15% |
3/4” |
8% |
1" |
12% |
1 1/4” |
14% |
1 1/2” |
9% |
2" |
9% |
2 1/2” |
21% |
3" |
15% |
3 1/2” |
12% |
4" |
11% |
5" |
38% |
6" |
44% |
2.Less Installation Labor
| Persent Installation Labor Savings for Aluminum vs Galvanized |
| Size | Laid in Trench | 12"ceiling | 16"ceiling | 20"ceiling |
| 1 1/4" | 34.9% | 32.6% | 32.2% | 35.3% |
| 1 1/2" | 46.9% | 48.1% | 47.7% | 46.9% |
| 2" | 59.7% | 57.1% | 55.3% | 57.1% |
| 2 1/2" | 59.1% | 58.2% | 59.1% | 57.1% |
| 3" | 57.1% | 58.1% | 57.1% | 57.6% |
| 3 1/2" | 72.4% | 71.2% | 58.2% | 57.9% |
| 4" | 73.1% | 71.5% | 71.4% | 70.2% |
| 5" | 72.4% | 70.8% | 70.0% | 71.4% |
| 6" | 71.4% | 71.0% | 70.3% | 70.0% |
1.Reply your enquiry in 24 working hours,any time you can contact me.
2.OEM, buyer design, buyer label services provided.
3.Exclusive and unique solution can be provide to our customer by our well-trained and professional engineers and staffs.
4.we can provide free sample for your check
5.we have the certification of UL
6.Special discount and protection of sales area provided to our distributor.
7.timely delivery
8.packing can make client brand.
9.Good after-sale service
General Headquarters:
Post Address:No.158 Wenhua Road Haigang District Qinhuangdao Hebei Province,China
Factory Address:Changli Gold Coast,Qinhuangdao,Hebei
Telephone No: +86-335-5948600
Fax No:+86-335-3028323
Calling after Working Time: +86-13933651027 (Cinderella Liu)
