Aluminum Rigid Conduit in 1/2" UL APPROVED

Aluminum Rigid Conduit in 1/2" UL APPROVED thumbnail-1
Aluminum Rigid Conduit in 1/2" UL APPROVED photo-1
US$ 2.01 - 200.01 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Grade:
6000 Series
Shape:
Round
Contact Supplier Request Quote Chat Now
Qinhuangdao Haimei Aluminum Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Xingang Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Grade 6000 Series
Shape Round
Surface Treatment Other, surface oxidation treatment, surface oxidation treatment
Outer Diameter 1/2" to 6"
Length 10ft
Thickness as UL standard
Usage electrical & industry etc.
Hardness 6063 Aluminum Alloy
Alloy Or Not Is Alloy
Temper T3 - T8
Al (Min) None
Wall Thickness as UL standard
Model Number Alu
Brand Name Haimei
Company Information

      We are Qinhuangdao Haimei Aluminum Co., Ltd. which is the leading manufacturer of Rigid Aluminum Conduits, also offers a broad line of aluminum accessories, including elbows (90o and 45o), couplings and nipples. The range of the products are produced in standard trade size from 1/2" to 6" .



    Generally , our products can be used in electrical project, industry,Airport,Bridge Program etc. They are made from 6063 aluminum alloy. 6063 is considered to be an extrusion alloy that is heatable for strengthening. It has a surface finish that is far smoother than the other commercially available alloys.



    In order to improve Haimei’s service in high quality, the products match the UL Standard for Electrical Metal Conduit – Aluminum ,Bronze & Stainless Steel, UL6A. They are especially suited for applications and installations requiring light weight, highly corrosive resistant, and non-magnetic protection. The advantage of our products will be introduced to you clearly:



1.Costs Less than Rigid Steel Conduit with extremely durable

2.Light weight is nearly 1/3 as much as Steel

3.Excellent corrosion resistance, non-magnetic, moisture

4.Easy to install and Low maintenance



*Only Haimei Rigid Aluminum Conduit Offers 2 Ways to Save on Every Job



1.Lower Upfront Material Cost



Percent Material Savings for Aluminum vs Galvanized

size

%Savings

1/2”

15%

3/4”

8%

1"

12%

1 1/4”

14%

1 1/2”

9%

2"

9%

2 1/2”

21%

3"

15%

3 1/2”

12%

4"

11%

5"

38%

6"

44%



2.Less Installation Labor



Persent Installation Labor Savings for Aluminum vs Galvanized
Size Laid in Trench 12"ceiling 16"ceiling 20"ceiling
1  1/4"  34.9%  32.6%  32.2%  35.3%
1  1/2"  46.9%  48.1%  47.7%  46.9%
 2"  59.7%  57.1%  55.3%  57.1%
 2 1/2"  59.1%  58.2%  59.1%  57.1%
 3"  57.1%  58.1%  57.1%  57.6%
 3 1/2"  72.4%  71.2%  58.2%  57.9%
 4"  73.1%  71.5%  71.4%  70.2%
 5"  72.4%  70.8%  70.0%  71.4%
 6"  71.4%  71.0%  70.3%  70.0%



Size



Trade Size   Approxinate Weight   Nominal Diameter   Nominal Wall
Desingnator   per100Ft(30.5)   Diameter   Thickness
U.S. Metric lb. Kg. in. mm. in. mm.
1/2 16 27.6 12.50  0.840  21.3  0.100  2.55
3/4 21 36.4 16.50  1.050  26.7  0.104  2.63
1 27 53.1 24.10  1.315  33.4  0.120  3.04
1-1/4 35 69.9 31.70  1.660  42.2  0.122  3.09
1-1/2 41 86.6 39.30  1.900  48.3  0.132  3.35
2 53 115.1 52.20  2.375  60.3  0.138  3.51
2-1/2 63 182.5 82.80  2.875  73.0  0.183  4.66
3 78 236.6 107.30  3.500  88.92  0.193  4.90
3-1/2 91 288.1 130.70  4.000  101.6  0.206  5.22
4 103 336.9 152.80  4.500  114.3  0.211  5.37
5 129 469.4 212.90  5.563  141.3  0.237  6.01
6 155 620.4 281.40  6.625  168.3  0.261  6.64
Trade Size   Quantity In   quantity Master Bundies
Desingnator   Primary Bundle     Approximate Weight
U.S. Metric ft m ft m lb. Kg.
1/2 16 100 30.5 2500 782.5 889 312.5
3/4 21 100 30.5 2500 782.5 909 412.5
1 27 100 30.5 2000 610.0  1063 482.0
1-1/4 35 50 15.2 1000 304.8 699 317.0
1-1/2 41 50 15.2 1000 304.8 866 393.0
2 53 50 15.2 450 137.2 518 234.9
2-1/2 63 - - 300 91.5 548 248.4
3 78 - - 200 61.0  473 214.6
3-1/2 91 - - 200 61.0  576 261.4
4 103 - - 200 61.0  674 305.6
5 129 - - 80 23.4 376 170.3
6 155 - - 60 18.3 372 168.8

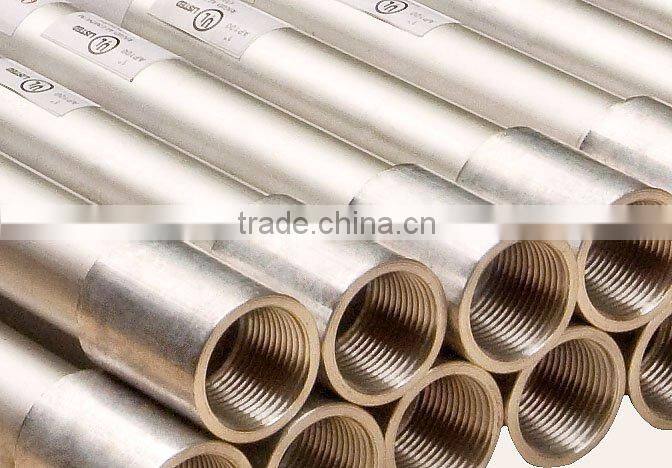

Product image

 Aluminum Rigid Conduit in 1/2" UL APPROVEDAluminum Rigid Conduit in 1/2" UL APPROVEDAluminum Rigid Conduit in 1/2" UL APPROVED

Certifications

Aluminum Rigid Conduit in 1/2" UL APPROVED

Other Products

Aluminum Rigid Conduit in 1/2" UL APPROVED

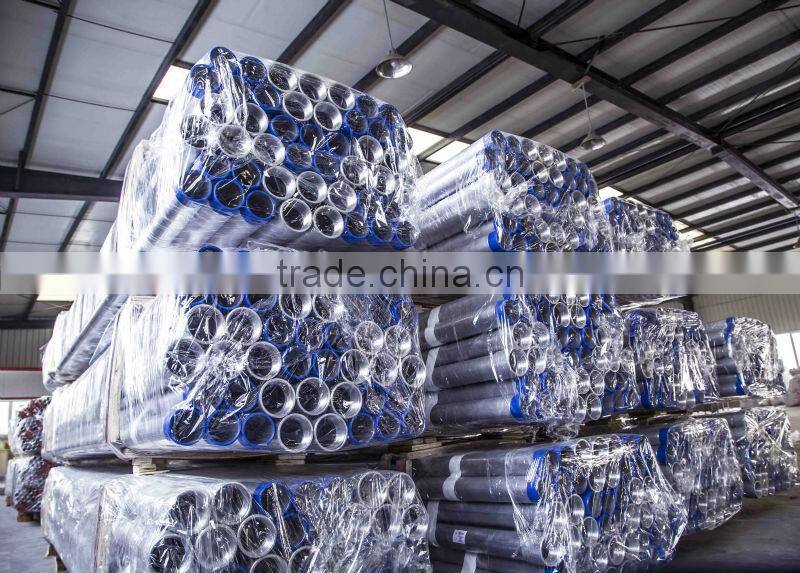

Factory image

Aluminum Rigid Conduit in 1/2" UL APPROVED

Packaging & Shipping

Aluminum Rigid Conduit in 1/2" UL APPROVED

Our Services

1.Reply your enquiry in 24 working hours,any time you can contact me.
2.OEM, buyer design, buyer label services provided.
3.Exclusive and unique solution can be provide to our customer by our   well-trained and professional engineers and staffs.
4.we can provide free sample for your check

5.we have the certification of UL

6.Special discount and protection of sales area provided to our distributor.
7.timely delivery
8.packing can make client brand.
9.Good after-sale service
