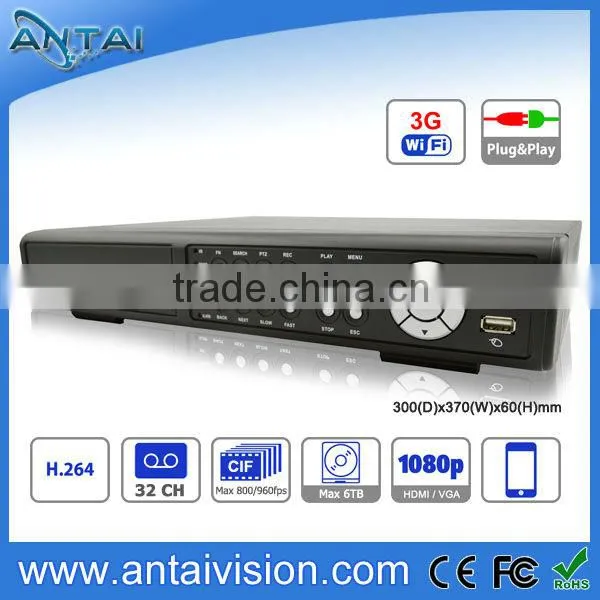

Specifications
1.Supporting 3G & WiFi extension2.Supporting HDMI 1080P / VGA 1080P / TV simultaneous video output.
3.support DVR-RW
| Video output | 1ch BNC(1.0Vp-p,75Ω), 1ch VGA,1ch HDMI | |
| Loop Output | NO | |
| Audio input | 4ch RCA (200-2800mV,30KΩ) | 8ch RCA (200-2800mV,30KΩ) |
| Audio output | 1ch RCA(200-3000mV,5KΩ) /1chHDMI audio output | |
| Alarm input | 8ch | |
| Alarm output | 1ch | |
| Network port | 1*RJ45 10/100 Base-T self-adaptive Ethernet port | |
| PTZ control | 1*RS485 port, Support more than 20 kinds protocols. | |
| USB port | Support USB 2.0 port | |
| HDD port | Accommodates 2 SATA HDDs (1 HDD capacity up to 3TB) | |
| Wireless Port | 3G & WIFI ( Extented by USB) | |
| User level | Admin / User | |
| User right | Users can set different permissions (How to use please refer to the manual book) | |
| Password protection | YES | |
| Remote Independent Operation | YES | |
| Download records | YES | |
| Remote Event Trigger Recording | YES | |
| CMS | CMS Software for multiple DVR (up to 255 DVR simultaneously) | |
| Browser | Internet Explorer, Mozilla Firefox, Google Chrome, Safari | |
| Live Audio | YES | |
| On-line user | Max. 10 | |
| Mobile Surveillance | YES (Support iPad, iPhone, BlackBerry, Windows Mobile, Symbian & Android;iPad, iPhone, Andriod have remote playback function) | |
| Network Protocol | DHCP,PPPOE,NTP,Email,IP Authority,DDNS,FTP,ARSP,Alarm Center,Wireless Dialing,Mobile Monitor,UPNP,Wifi,RTSP,Cloud Service | |
| Motion detection | 16 × 12 grids per channel;6 adjustable parameters for accurate detection(for local analog channel only) | |
| Event Notification | FTP / E-Mail | |
| Pre-alarm Recording | YES | |
| Video loss | Video loss notification | |
| Buzzer | Yes | |
| IR remote controller | Remotely control DVR and PTZ cameras via IR transmitter (IR receiver built-in) | |
| Remote control | YES | |
| Cooling fan | YES | |
| Tour | YES | |
| Power Source (±10%) | DC 12V / 5A | |
| Power Consumption (±10%) | <15W (Without HDD) | |
| Operating Temperature | 0°C ~ +55°C | |
| Dimensions (mm) ** | 370mm(L)* 300mm(W)* 60mm(H) | |
| System Recovery | System auto recovery after power failure | |
| Net Weight | 2.15KG±0.1KG | |
| Carton Box Size | 410mm(L)* 124mm(W)* 352mm(H) | |
| Package Size | 640mm(L)* 425mm(W)* 370mm(H) | |
| Gross Weight | 15.5KG±0.5KG | |
