AHD Camera

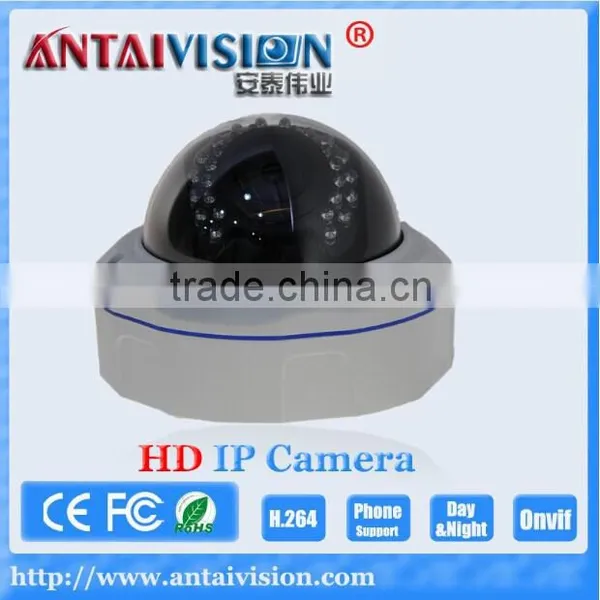

AHD Camera photo-1
US$ 26.8 - 27.5 MOQ: 60 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ANTAI VISION
Model Number:
AHD-2939
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name ANTAI VISION
Model Number AHD-2939
Type Analog Camera
Style Hidden Camera
Sensor CMOS
Technology NetWork
Special Features Vandal-proof

Specifications

Image Sensor: 1/3" COMS;Resolution: 1280*960;Effective pixels: 1.3 Mega pixels;Min. Illumination: 0Lux (IR ON);Lens: 4 mm

FEATURES
Preview   and compression resolutions are both 1280*960;
Totally   developed Cloud technology is embedded in network remote surveillance. No   need for complex setting; network transmission is convenient;
Supports   triplex streams, and users could select streams and adjust resolution and   stream according to needs;
Supports   IR-CUT, double light filter automatical switching, realizing night   vision;
Supports   motion detection and sending mail alert automatically;
Supports   software updating from website or local;
Supports   network parameters static setting/DHCP/ADSL;
Supports   mobile monitoring, and picture quality and frame rate could be adjusted. No   need for complex setting;
Supports   screen motion detection and region cover. 4 different regions could be   setted;
Supports   restart after power off or accident problem;
Supports   modifying system time and OSD content;
Supports   real-time remote monitoring, remote starting host-end recording, remote   recording playback and remote downloading;
Supports   network user management, network time synchronization, CC, WebCC;
Surveillance   system software, IE explorer and mobile could be selected as client-end.   Various ways and high connection rate;
User   manage, watch and record through Jovision self-developed Cloud surveillance   system.
SPECIFICATIONS
1.3MP (3518+AR0130)
Display Image Sensor 1/3" COMS
Resolution 1280×960
Effective   pixels 1.3 Mega pixels
Video   Compression H.264
Frames per   second 25fps
Bitrate 128Kbps~8Mbps
Sync System Internal
S/N 44dB
Min.   Illumination 0Lux (IR ON)
Lens Interface CS
Lens 4mm, 6mm, 8mm, 12mm, 16mm optional
Angle 4mm:72°, 6mm:48.8°, 8mm:37°,   12mm:24.2°
Focus Manual
Function Privacy mask Support 4 area privacy mask
Exposure   control Auto
AGC Auto
Dynamic range 83.5dB
AWB Auto
Day/night Auto, dual IR-Cut filter
Video   Adjustments Contrast, Brightness, Saturation,   Acutance
Expansion   Interface Audio in
Remote control System, Streaming, Account, Network
Motion   Detection YES
Alarm E-mail, Client software
RS-485   protocol NO
Network Ethernet 10/100M BASE-TX,RJ-45 connector
Streaming Three kinds of stream
Protocol HTTP,TCP/IP,ICMP.RTSP,RTP,UDP,RTCP,SMTP,
    FTP,DHCP,DNS,PPPOE
Transmit P2P(plug and play), automatic port   forwarding
Enviornment Operating Temperature -20℃~+55
Operating   Humidity 10%~90%
