Home > Auto, Motorcycle Parts & Accessories > Car Safety > Car Black Box > New Economic 4 Channel Mdvr With 3G WIFI GPS

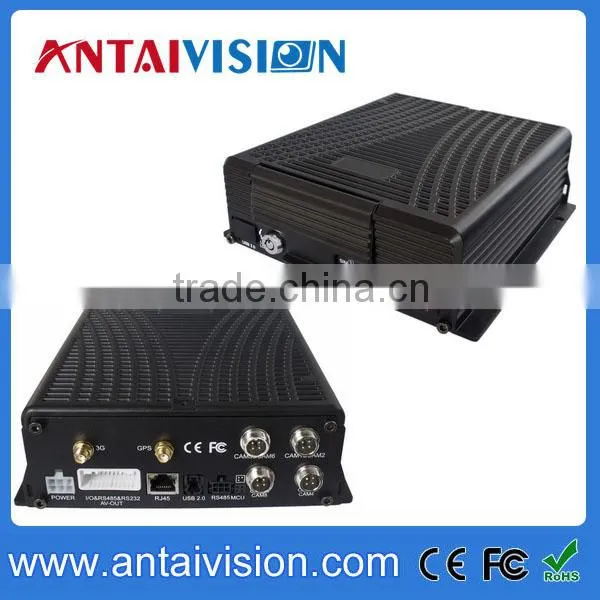

New Economic 4 Channel Mdvr With 3G WIFI GPS

Name: New Economic 4 Channel Mdvr With 3G WIFI GPS
Brand: ANTAI
SKU: 115279481
Availability: InStock

New Economic 4 Channel Mdvr With 3G WIFI GPS thumbnail-1

New Economic 4 Channel Mdvr With 3G WIFI GPS photo-1

US$ 210 - 213 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Certification:

Place of Origin:

Guangdong, China

Brand Name:

ANTAI

Contact Supplier Request Quote Chat Now

Antaivision Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Certification CE

Place of Origin Guangdong, China

Brand Name ANTAI

Model Number AT-S1-G-3G(+GPS+3G)

Warranty 1 Years

Specifications

1. 4 ch video & audio inputs
2. 2 D1+ 2 CIF H.264 Compression
3. 2 SD slots, each slot suports 128GB

Product Description

Items	Parameters	Specifications
System	Language	English
	Operation Menu	Graphical User interface(OSD menu)
	Password	Users Password/ Administrator Password
Video	Video input	4-CH video input 1.0Vp-p,75Ω
	Video output	1-CH composite video output 1.0Vp-p,75Ω 1 VGA output
	Video Display	1 channel or synchronous 4 channels
	Video Singal	PAL,NTSC
	Video Compression	H.264 Main profile PAL:100fps at D1, NTSC: 120fps at D1
Audio	Audio input	4-ch Audio input
	Audio output	1-ch Audio output
	Recording mode	Audio & Video sync Recording
Image Processing & Storage	Image Resolution	4 D1 , 4 HD1, 4 CIF options
	Video Compression	H.264 Main profile
	Video bit rate	CIF: 1536Kbps ~ 128Kbps,4 levels optional. Highest: 0 level Lowest: 3 level HD1: 2048Kbps ~ 512Kbps,4 levels optional. Highest: 0 level Lowest: 3 level D1: 4Mbps ~ 1Mbps, 4 levels optional. Highest: 0 level Lowest: 3 level
	Audio Compression	ADPCM, G.726, G.711 Options
	Audio Bit rate	8KB/s
	Storage	Support One HDD Max 1TB Support One SD Card Backup when HDD is error. Support Mirror Recording with a expand HDD
Alarm	Alarm input	8 digital level inputs,below 4V is low level alarm,above 4V are high level alarm
Alarm	Alarm output	2 digital level outputs,output voltage level:12V
Communication Interface	RS485 Interface	Support 2-RS485 interface
	RS232 Interface	Support 1-RS232 interface
	WIFI Interface	Support 802.11b/g/n
Extended interface	Support connecting LCD control panel via extended interface
Audio amplifier interface	Support Stereo Audio output, it can contact 20W speaker directly
3G	HSUPA/HSDPA/WCDMA/EVDO Optional
GPS	Built-in GPS module, Geographic coordinates , speed can be recorded in hard disk and also can be transmitted to CMS.
Acceleration Sensor	Embedded acceleration sensor
Software	Playback	Playback Software is used to playback video file, GPS track, G-sensor, and alarm information.
Software	CMS	Center vehicle management software platform, it can manage 20000 devices at same time, if need to manager more units, add more servers to realize it.
Software Upgrade	Support Flash disk to upgrade the firmware
