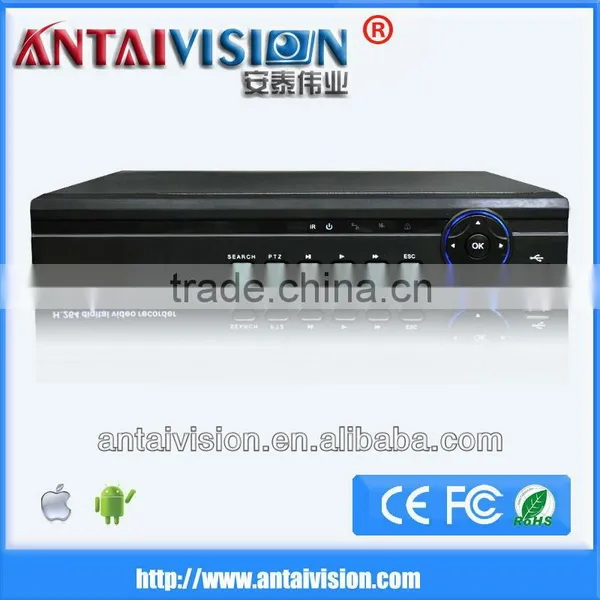

Help CenterH.264 HD Realtime D1 8ch
US$ 38 - 40
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
antai
Model Number:
DVR-H3808BW
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Guangdong, China
Brand Name
antai
Model Number
DVR-H3808BW
Specifications
8CH 960H@12fps Recording / 2CH 960H Playback;8CH D1 real Time Recording / 4CH D1 Playback;8CH D1@15fps RecordingProduct Description
| SPECIFICATIONS | |||||
| No-alarm Model | Model | 8 Channel H.264 DVR | |||
| DVR-H3808BW (A,K,R,L,M,Y,P) | |||||
| Board Model | PCBA-HS-B3520DH-8(with 4 audio seat) | ||||
| No-alarm Picture | Rear Model | |
|||
| With alarm Model | Model | DVR-AH3808BW (A,K,R,L,M,Y,P) | |||
| With alarm Picture | Rear Model | Bitmap |
|||
| System | Main processor | Industrial grade embedded micro controller chip Huawei Hisilicon chipset 3520D | |||
| Operating system | Embedded LINUX operating system | ||||
| System resource | Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up. |
||||
| Display | Operation interface | 16 bit real color GUI interface support mouse operation | |||
| Multilingual Language | YES, 28 kinds of language | ||||
| Display screen | 1/4/8/9 Screen | ||||
| Video | Video Standard | PAL(625 lines, 50fps); NTSC(525lines, 60fps) | |||
| Image encode | H.264(Main Profile) | ||||
| Monitor quality | Monitor:D1; VGA & HDMI: (1920*1080,1280*720,1440*900,1280*1024,1024*768) | ||||
| Playback quality | 960H/D1/HD1/CIF | ||||
| Encode capability | 8ch 960H@12fps /8ch D1@25fps /8ch D1@15fps | ||||
| Decode capability | 2ch 960H@12fps / 4ch D1(1 D1@25fps+3 D1) /8ch D1@15fps | ||||
| Multi-Input (ONVIF 2.3) |
NO | ||||
| Audio | Audio compression | G.711A | |||
| Record and playback | Record mode | Manual, alarm, motion detection, timing | |||
| Snapshot | HD1 mode: Supporting snapshot(0.5s/fps,1s/fps…5 s/fps) | ||||
| Local playback | 1ch– 8ch | ||||
| Video search | Time, date, event, channel search | ||||
| Storage and back up | Space Usage | Video CIF:4~5G/day*channel, D1:16~20G/day *channel,960H:9~42G/day*channel, 720P:10G~42G/day*channel,1080P:20G~80G/day*channel,Audio 691.2M/day *channel | |||
| Video storage | Local Hard Disk, Network | ||||
| Back up mode | Network backup, USB portable HDD, USB DVD-RW | ||||
| Interface | Video input | 8ch BNC(1.0Vp-p,75Ω) | |||
| Video output | 1ch BNC(1.0Vp-p,75Ω), 1ch VGA, 1ch HDMI | ||||
| Audio input | 4ch RCA (200-2800mV,30KΩ) | ||||
| Audio output | 1ch RCA (200-3000mV,5KΩ)/1ch HDMI audio output | ||||
| Alarm input | 4ch(default: not supportingbut can order) | ||||
| Alarm output | 1ch(default: not supportingbut can order) | ||||
| Network port | 1*RJ45 10/100 Base-T self-adaptive Ethernet port | ||||
| PTZ control | 1*RS485 port, Support more than 20 kinds protocols. | ||||
| USB port | Support USB 2.0 port | ||||
| HDD port | Accommodates 1 SATA HDDs (1 HDD capacity up to 3TB) | ||||
| Wireless Port | 3G & WIFI ( Extented by USB) | ||||
| User | User level | Admin / User | |||
| User right | Users can set different permissions (How to use please refer to the manual book) | ||||
| Password protection | YES | ||||
| Remote | Remote Independent Operation | YES | |||
| Download records | YES | ||||
| Remote Event Trigger Recording | YES | ||||
| CMS | CMS Software for multiple DVR (up to 255 DVR simultaneously) | ||||
| Browser | Internet Explorer, Mozilla Firefox, Google Chrome, Safari | ||||
| Live Audio | YES | ||||
| On-line user | Max. 10 | ||||
| Mobile Surveillance | YES (Support iPad, iPhone, BlackBerry, Windows Mobile, Symbian & Android;iPad, iPhone, Andriod have remote playback function) | ||||
| Network Protocol | DHCP,PPPOE,NTP,Email,IP Authority,DDNS,FTP,ARSP,Alarm Center,Wireless Dialing,Mobile Monitor,UPNP,Wifi,RTSP,Cloud Service | ||||
| Alarm | Motion detection | 16 × 12 grids per channel;6 adjustable parameters for accurate detection(for local analog channel only) | |||
| Event Notification | FTP / E-Mail | ||||
| Pre-alarm Recording | YES | ||||
| Video loss | Video loss notification | ||||
| Buzzer | YES | ||||
| Other | IR remote controller | Remotely control DVR and PTZ cameras via IR transmitter (IR receiver built-in) | |||
| Remote control | YES | ||||
| Cooling fan | NO | ||||
| Tour | YES | ||||
| Power Source (±10%) | DC 12V / 2A | ||||
| Power Consumption (±10%) | <10W(without HDD) | ||||
| Operating Temperature | 0°C ~ +55°C | ||||
| Dimensions (mm) ** | 250mm(L)* 210mm(W)* 45mm(H) | ||||
| System Recovery | System auto recovery after power failure | ||||
Packaging & Shipping
| Package | Net Weight | 0.95KG±0.1KG | |
| Carton Box Size | 5 units packaging:358mm(L)* 83mm(W)* 270mm(H); 10 units packaging:325mm(L)* 80mm(W)*255mm(H) ; | ||
| Package Size | 5 units packaging:440mm(L)* 375mm(W)*285mm(H) ; 10 units packaging:415mm(L)* 335mm(W)*525mm(H) ; | ||
| Gross Weight | 5 units packaging:7.5kg±0.5kg; 10 units packaging:14.0kg±0.5kg; | ||
