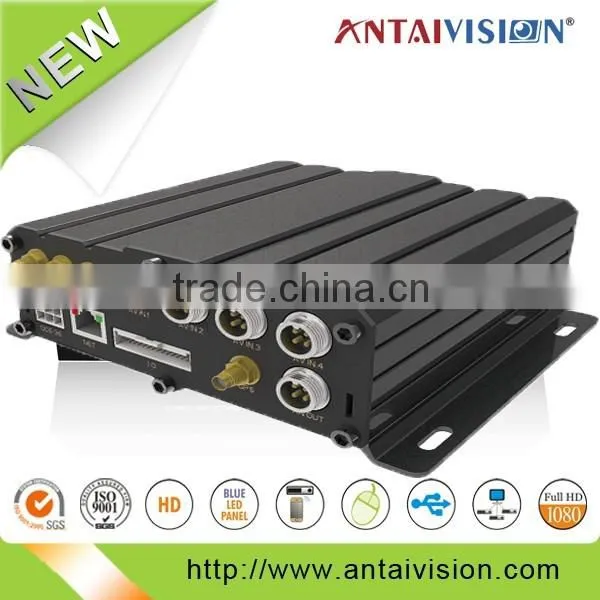

H.264 compression mode,support 3g wifi gps and support 4CH realtime 720P AHD input and Analog camera input sd card mdvr
| MDVR-1104A-GWF Specifications | ||
| Item | Parameter | |
| Operation system | Embedded Linux OS | |
| System Language | Chinese,English,customized | |
| Video Compression | H.264 Compression mode | |
| OSD | character-overlapping, support information image overlapping of date and car ID. | |
| GUI | Image OSD | Can set system parameter by circumscribed LCD and remote control |
| Interface | ||
| Video & recorder system | Video input | 4ch BNC input, 1.0vp-p,75Ω |
| Video output | 1ch composite BNC output, 1.0vp-p, 75Ω, support 1ch full screen and 4 seperated screen | |
| Preview function | Single channel and 4 screens preview, support manual/event trigger full screen | |
| Resolution | 720P/D1/HD1/CIF optional, max support 4ch 720p or 4ch D1 | |
| Video quality | 1-8 level video quality, optimal 1 level and minimum 8 level | |
| Video bit rate | PAL: 100fps, CCIR625 line, 50 field | |
| NTSC: 120fps, CCIR525 line, 60 field | ||
| CIF: 256Kbps~1.5Mbps, multilevel image quality optional | ||
| HD1: 600Kbps~2.5Mbps, multilevel image quality optional | ||
| D1: 800Kbps~3Mbps, multilevel image quality optional | ||
| 720P: 1000Kbps~6Mbps, multilevel image quality optional | ||
| Record method | Default auto record, support ACC record, manual record, alarm record | |
| Audio | Audio input | 4ch BNC |
| Audio output | 1ch BNC | |
| Compression format | G.726, bit rate 5KB/s | |
| Alarm input | 6ch alarm input, action with alarm function | |
| Alarm output | 2ch DO | |
| Positioning | Support built-in GPS/BD module | |
| Sensor | Support G-Sensor | |
| Serial interface | Support 2 RS232, optional 1 RS585 | |
| Video storage | SD card | 2 SD card max support 128GB, loop recording, auto data overwrite |
| Upgrade method | Support SD card upgrade | |
| File format | H.264 | |
| File system | Special file system or FAT32 | |
| Video playback | Video search | Support video search by time and recording method |
| Playback | Max support 4ch synchoronous playback, pause, fast forward and fast backward | |
| Support 2, 4, 8, 16 times fast forward and backward speed | ||
| Power supply & dissipation | Power management | Self-adaption wide power input, overload, low-voltage, short-circuit and opposite connection protection |
| Support timing power on/off and delayed power off | ||
| Input voltage | DC: +10V~+36V | |
| Output voltage | +12V 2.5A,+5V 2.5A | |
| Power dissipation | Normal working<5W | |
| Work environment | Temperature | -20℃ to +70℃ |
| Humidity | 20% to 80% | |
| Safety management | Password access | User password and Administrator password two-level administration |
Main Features:
1. H.264 compression mode, support 4CH realtime 720P AHD input and Analog camera input
2. Optional VGA output
3. 2 SD card slots, Max support 128GB capacity.
4. 3G network , such as HSUPA/HSDPA/WCDMA/EVDO is selectable.
5. Built-in GPS module.
6. Built-in G-sensor
7. External WIFI special interface.
8. 6 digital alarm inputs, 2 digital level output.
9.two RS485 interfaces, one RS232 interface.
10. Built-in hard disk heating technology. It can be worked in -20℃ - +70℃.
11. Power supply: 10V-36V
12. High reliability BNC connector, high cost performance, reliable and stable

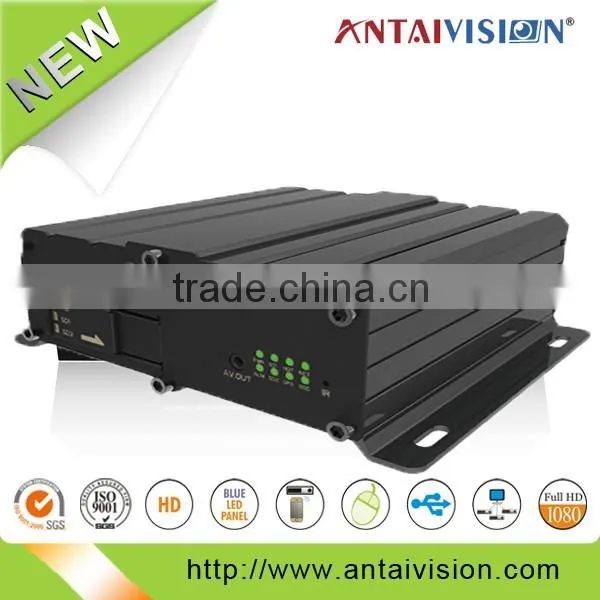

photo show
details photo
accessories
certificcates
factory photo
exhibition
Q1: What is your MOQ for this MDVR?
A1: We accept small and sample orders for our existing models, for OEM orders the MOQ is 500 units.
Q2: How long is the warranty period?
A2: 12 months warranty is promised to all customers.
Q3: What is the delivery time?
A3: For sample order it takes 2-5 working days, for mass production it takes 5-15 working days.
Q4: What should I do if I have some problems to handle the DVR?
A4: You can contact our sales, we can give you reply
