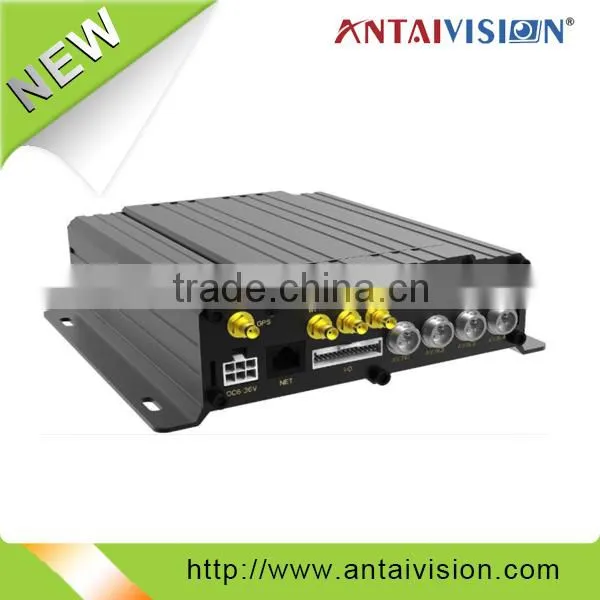

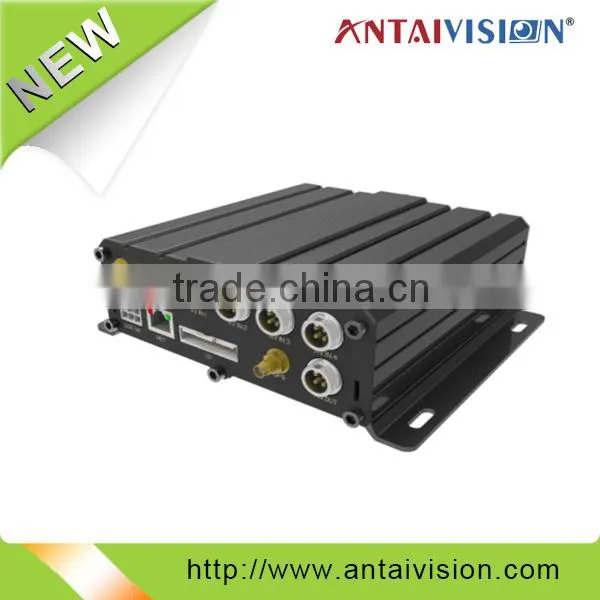

Car DVR Full HD 720P GPS Tracking Car Black Box Supoort WIFI

Car DVR Full HD 720P GPS Tracking Car Black Box Supoort WIFI thumbnail-1
Car DVR Full HD 720P GPS Tracking Car Black Box Supoort WIFI thumbnail-2
Car DVR Full HD 720P GPS Tracking Car Black Box Supoort WIFI photo-1
Car DVR Full HD 720P GPS Tracking Car Black Box Supoort WIFI photo-2
US$ 114 - 346 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ANTAIVISION
Model Number:
MDVR-1004M-GWF
Contact Supplier Request Quote Chat Now
Antaivision Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name ANTAIVISION
Model Number MDVR-1004M-GWF

 Car DVR Full HD 720P GPS Tracking Car Black Box Supoort WIFI

Product Description
SPECIFICATIONS



Technical Parameters

Function

Parameters

System

Language

Chinese, English

Operation interface

OSD menu

Password security

User password and Administrator password

Video

Video input

4CH video input, aviation connector

Video output

1CH composite video output, support VGA/AV/BNC

Video display

1ch full screen/4ch split screen

Signal system

PAL: 100 fps, CCIR 625tvl, 50 field

NTSC: 120 fps, CCIR 525tvl, 60 field

Image compression

H.264 Main profile

Audio

Audio input

4CH aviation connector

Audio output

1CH aviation connector

Compression format

G.726

Recording & Storage

Image resoluation

720P/D1/HD1/CIF optional

Video coding

ISO14496-10

Video bit rate

CIF: 256Kbps~1.5Mbps, multilevel image quality optional

HD1: 600Kbps~2.5Mbps, multilevel image quality optional

D1: 800Kbps~3Mbps, multilevel image quality optional

720P: 1000Kbps~6Mbps, multilevel image quality optional

8 video quality grades, highest grade 1 and lowest grade 8

Audio bit rate

5KB/s

Storage

2TB hdd storage, loop recording, auto data overwrite. With 1 sd card slot, support 128GB

Alarm

Alarm input

6CH alarm input

Alarm output

2CH DO

Communication ports

RS232

2*RS232

RS485

1*RS485

RJ45 network

1*RJ45, support IP camera

Wireless communication

SIM card slot

1 SIM card slot

3G

Built-in 3G module optional(WCDMA/EVDO/TD-SCDMA)

4G

Built-in 4G module optional(TD-LTE/FDD-LTE)

Wifi

Built-in Wifi optional(2.4G/5.8G)

GPS

Built-in GPS module optional, realtime geographic coordinates, speed information

G-Sensor

Built-in G-sensor

Software

PC playback

Video playback and analysis by PC client

CMSV6

Wireless realtime video & audio monitoring, positioning, alarms, etc.

Software upgrade

Support SD card memory upgrade

Electric parameters

Input voltage

DC+8V~+36V

Output voltage

 +12V, 2.5A; +5V, 2.5A

Video input resistance

1.0vp-p, 75Ω

Video output voltage

1.0vp-p, 75Ω

I/O port

High level alarm

5~24V

Low level alarm

<3V

Operation temperature

 -20℃ to +70℃

Dimension

 185*170*60mm

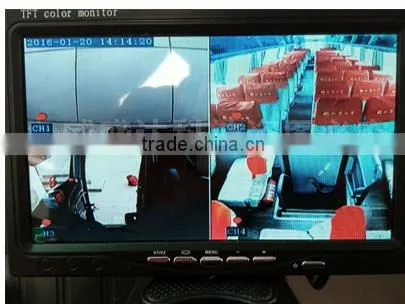

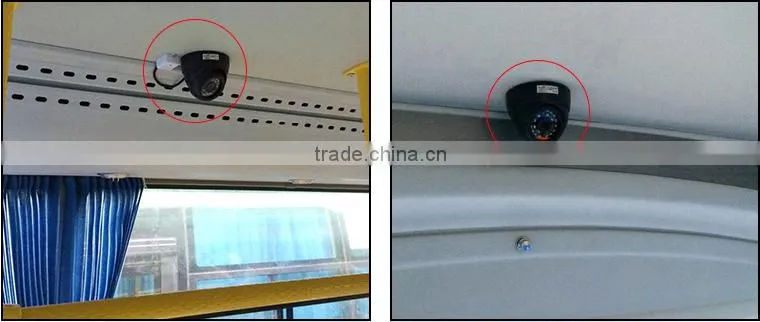

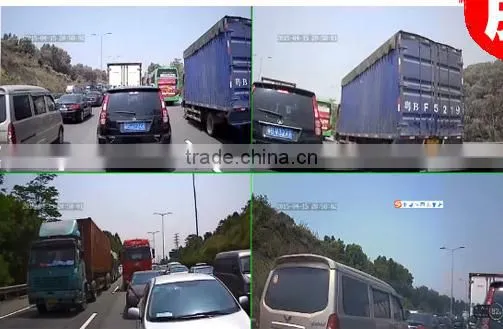

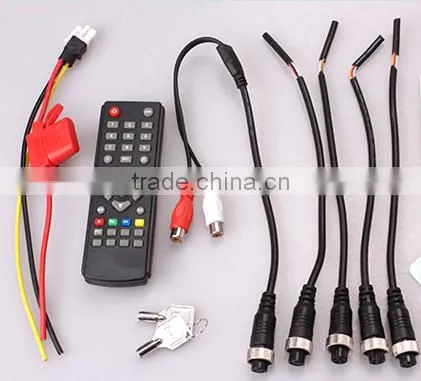

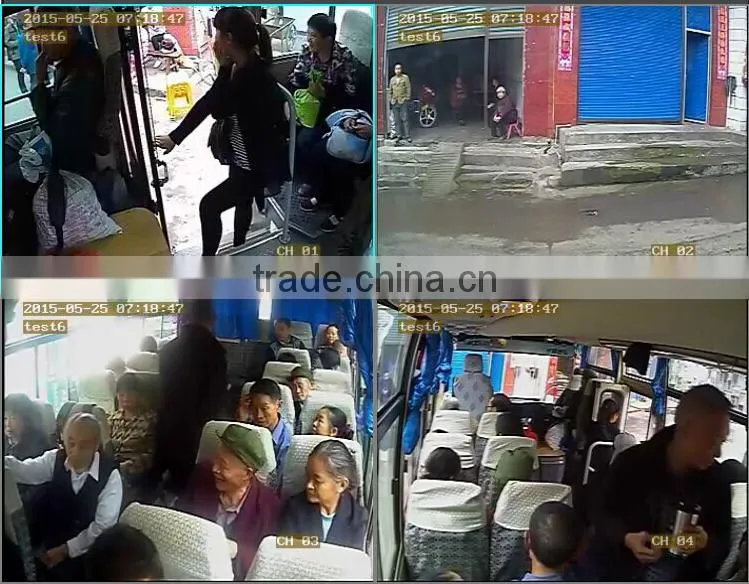

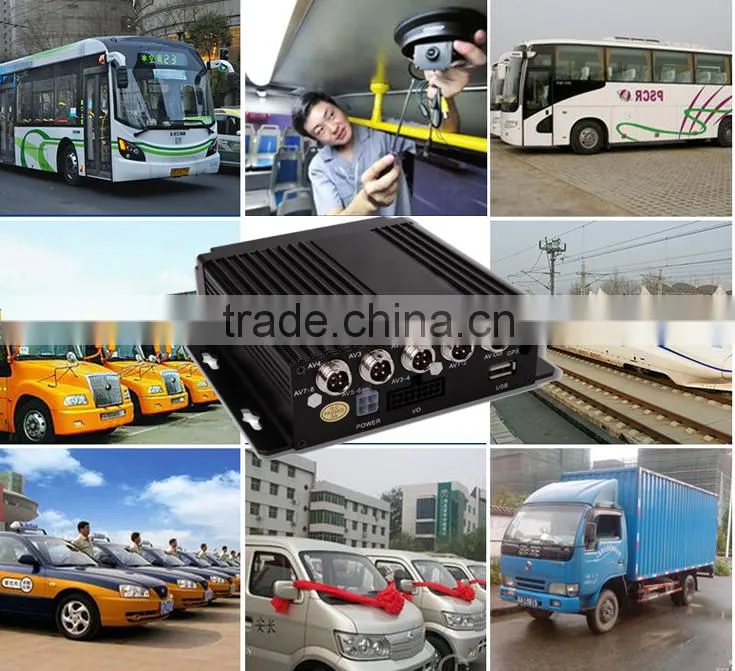

Product Show

Car DVR Full HD 720P GPS Tracking Car Black Box Supoort WIFICar DVR Full HD 720P GPS Tracking Car Black Box Supoort WIFICar DVR Full HD 720P GPS Tracking Car Black Box Supoort WIFI

Car DVR Full HD 720P GPS Tracking Car Black Box Supoort WIFICar DVR Full HD 720P GPS Tracking Car Black Box Supoort WIFI

Car DVR Full HD 720P GPS Tracking Car Black Box Supoort WIFI



Our Exhibition

Car DVR Full HD 720P GPS Tracking Car Black Box Supoort WIFICar DVR Full HD 720P GPS Tracking Car Black Box Supoort WIFICar DVR Full HD 720P GPS Tracking Car Black Box Supoort WIFI

Company Information

 Company Profile:

     ANTAI VISION TECHNOLOGY CO., LTD is a manufacturer of CCTV products including standalone DVR, camera and IP camera. Our factory has obtained ISO 9001certifications. It has branches in Taiwan & HongKong and modern SMT plant in Mainland China. ANTAI cover the area about 4000 square meters, our monthly quantity for DVR is about 50,000 pieces. We design, produce and sell the products from the nraw material to the finished ones at one stop, we have unque SMT department and provide the timely and efficient production. All the products have obtained CE and FCC certification. Therefore, we can supply you with high quality profitable business. Through years' developments, we have kept cooperation with the customers from different places such as India, Turkey,America, Europe and Asia countries, our expand for business is a legend in CCTV industry.

     We are sincerely inviting the customer all over the wporld to come to our factory to check our products and establish the long-term and steady business relationship with us.



Advanced production facilities

We have 4 SMT lines, all imported machines. Working 24-7 to produce about 4,000pcs PCB per day.

Experienced assembly-line workers

We have several assembly-lines to make sure devices be assemblied timely. All workers are trained and efficient, The cases of the devices is checked 100% one by one before assembly,which ensured 0 disqualified.



Rigorous quality control

All products will be rigorously tested before packing, we have 5 steps test to control the quality:

1. Material full inspection; 2. mainborad full inspection; 3. full functions inspection(with HDD);

4. Semi-finished inspection(with HDD); 5. QC inspection before packing. It is seldom factory in the market except us who do the test with HDD.





CERTIFICATE



Car DVR Full HD 720P GPS Tracking Car Black Box Supoort WIFICar DVR Full HD 720P GPS Tracking Car Black Box Supoort WIFICar DVR Full HD 720P GPS Tracking Car Black Box Supoort WIFI

EXHIBITION







Our Services



1.Offer OEM/ODM service:

1) Logo silk print service;
2) Nearly 50 kinds of styles provided for clients' choose;


2. After-sale Service:
1) All products will be tested 5 times before delivering.
2) All products will be checked 100% ok before packing.
3) All products will be offered one year's warranty, and technological supports for its lifelong.



 Any inquiries will be replied in 24 hours

 Professional manufacturer and  welocome to Visit Our  factory  in Shenzhen City

 OEM/ODM service offered, Welcome to Ask Any Question

 Antai Looks Forward to Serving You !!!

FAQ
FAQ:

1. What is our MOQ for the Mobile DVR?



We don't have MOQ for standard orders, for orders with printing logo the MOQ is usually 100pcs, and for OEM color box the MOQ is 1,000pcs.



2. Can I apply my own tracking system to the mobile DVR?



Yes, we have powerful technical team to make your tracking system compatible with our device.



3.How can I watch the record of the video?



You can see the playback from many ways: on PC client(in the attached CD), on your mobile phone, or through the CMS to watch the video. Also you can download the video through network, it will save your time to get the SD card or HDD out of the device.



4.What is your shipment time?



Usually we arrange the order after we confirmed the deposit, and it will take 3-5 days for small order, 5-15 days for mass order.



5.What if my device doesn’t work?



You can contact our sales, and they will check what is the problem. We have one year warranty for the device, if the problem is not created by act of man, we can fix it or change the new one for you.
