Specifications
XLPE insulation Marine VFD power Cable1. tinned copper wire
2.XLPE insulation
3.tinned copper wire braiding
4.PO sheath
XLPE insulation Marine VFD power Cable
Rating voltage: 600V/1000V 1800V/3000V
Standards applied
IEC60228 IEC60092-350 IEC60092-351 IEC60092-353 IEC60092-359
IEC60332-1 IEC60332-3-22 IEC60331 IEC60754-2 IEC60134-2

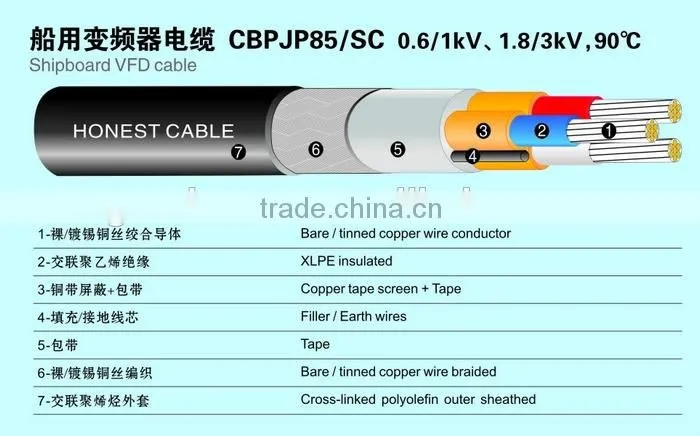

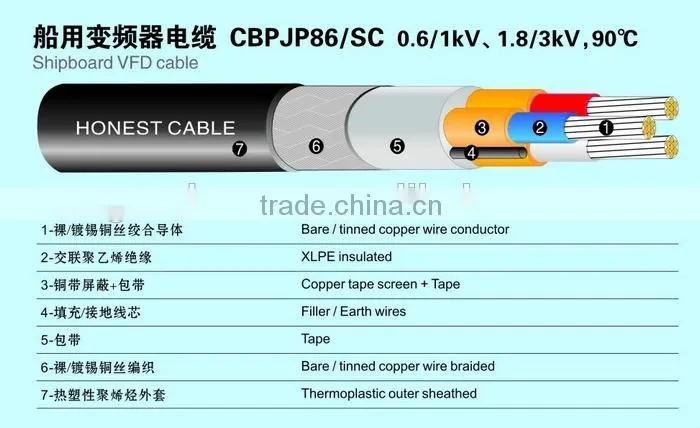

Construction:
1. Conductor: tinned copper wire
2. Insulation: XLPE
3. Copper tape shielded
4. Filler / earth wire
5. Tape
6. Inner sheath: PVC/PCP/PO(SHF1,SHF2)
7. Screen/Armored: tinned copper wire braided or Galvanized steel wire braided
8. Outer sheath:PVC/PCP/PO(SHF1, SHF2)

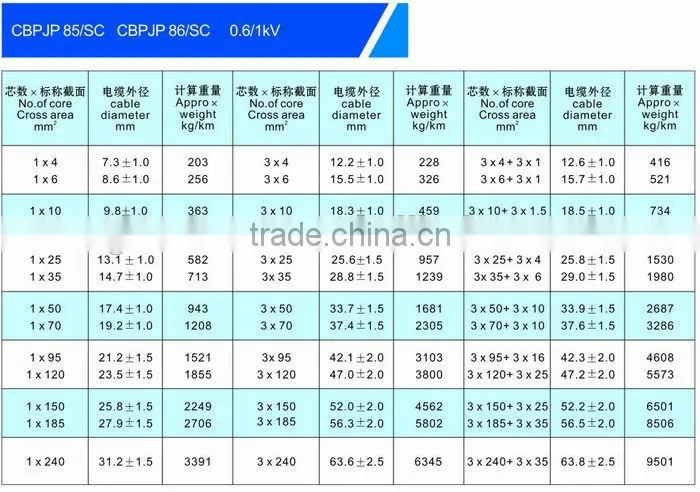

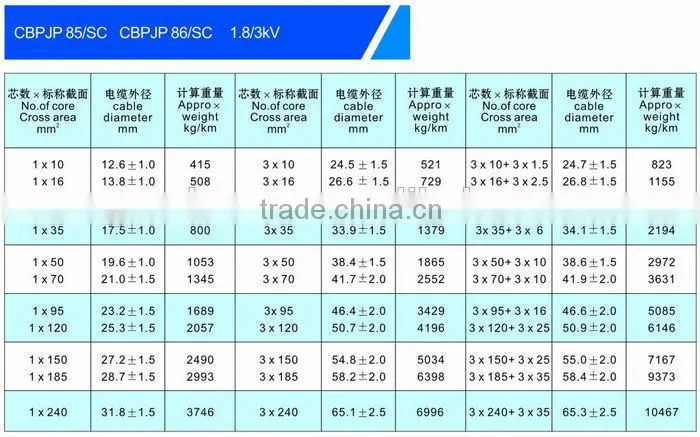

Control cable Specifications
Cores: 1,2, 3, 3+E
Nominal Cross-section Areas: 4.0mm2, 6.0mm2, 10mm2,16 mm2, 25mm2, 35mm2, 50mm2, 70mm2,95mm2, 120mm2, 150mm2 ,185mm2, 240mm2,
Flammability features
SA:bunched cable flame retardant
SC:bunched cable flame retardant,halogen free & low smoke
Application

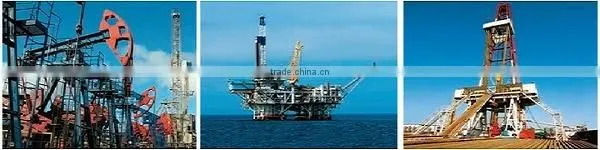

The cable is intended for power,lighting of shipboard or offshore building.It is also available for power plant,chemical works and mines,etc.Especially is suitable in the frequency conversion control transmission system.
Classification Society Certificates
CCS,ABS,DNV,BV,LRS,GL,RINA,KR,NK.
The radius of bend for the installation of cables
Cable structure features Over diameter of cable(D) Minimum internal bending radius
Metal braided armored Any value 6D
Non-armored D≤25 4D
D25 6D
Workshop
