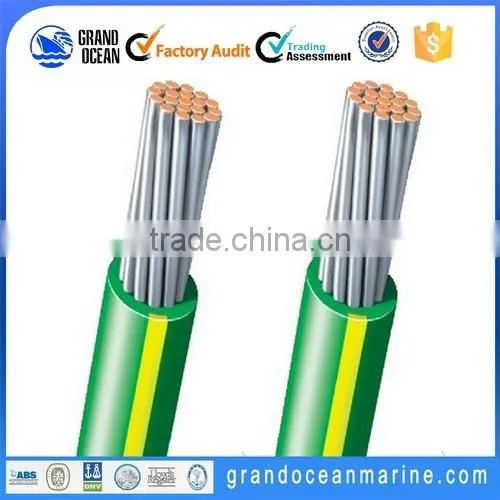

CMC flexible Marine Electric Cable
Rating voltage: 0.6/1kv
Standards applied
IEC60228 IEC60092-350 IEC60092-351 IEC60092-353 IEC60092-359
IEC60332-1 IEC60332-3-22 IEC60331 IEC60754-2 IEC60134-2

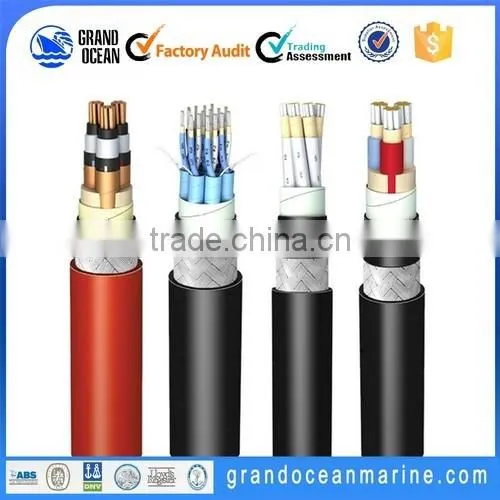

Marine cable construction:
1. Conductor: tinned copper wire,class2 or 5
2. Fire resistant Mica tape on request
3. Insulation: XLPE/EPR
4. Filler ( if necessary)
5. Tape
6. Inner sheath: PVC/PCP/PO(SHF1,SHF2)
7. Screen/Armored: tinned copper wire braided or Galvanized steel wire braided
8. Outer sheath:PVC/PCP/PO(SHF1, SHF2)
Marine cable specification
Cores: 1,2, 3, 4, 5, 7, 8,10, 12, 14, 16,19, 24, 27, 30, 33, 37
Nominal Cross-section Areas: 1.0mm2, 1.5mm2, 2.5mm2, 4.0mm2, 6.0mm2, 10mm2,16 mm2, 25mm2, 35mm2, 50mm2, 70mm2,95mm2, 120mm2, 150mm2 ,185mm2, 240mm2, 300mm2
Marine cable Flammability features
SA:bunched cable flame retardant
SC:bunched cable flame retardant,halogen free & low smoke
NA:bunched cable flame retardant,fire resistant
NC:bunched cable flame retardant,fire resistant,halogen free & low smoke
Marine cable application
This marine cables are intended for power,lighting of shipboard or offshore building.It is also available for power plant,chemical works and mines,etc.
Marine cable Classification Society Certificates
CCS,ABS,DNV,BV,LRS,GL,RINA,KR,NK.
The radius of bend for the installation of marine cable
Cable structure features |
Over diameter of cable(D) |
Minimum internal bending radius |
Metal braided armored |
Any value |
6D |
Non-armored |
D≤25 |
4D |
D25 |
6D |
Grand Ocean Marine is a professional & reliable supplier of Offshore & Marine Cable, Onshore Cables & Accessories , Marine Safety Equipment,Marine Lighting Fixture and Marine Mooring Equipment. With more than 8 years experience in export business, our team can assure you that we can understand your requirements well and deal with your project professionally.
Quality is our first priority. Marine Equipment are obtained ABS, BV, DNV, GL, LR, NK, KR, RINA,EC, CE Certificates.In order to meet different needs of our customers, we are also able to source other marine equipment in China.
The cooperation with Grand Ocean Marine will be an enjoyable experience. We insist on doing everything seriously and continuously improve our team services capabilities to satisfy clients’ requirement. Once you selected, we hope to be your partner forever. Welcome to visit us in Ningbo,China.
