Specifications
marine cable / deniz kablo1.tinned copper conductor
2.XLPE/EPR insulation
3.tinned copper wire armoured
marine cable / deniz kablo
Rating voltage: 0.6/1kv
Standards applied
IEC60228 IEC60092-350 IEC60092-351 IEC60092-353 IEC60092-359
IEC60332-1 IEC60332-3-22 IEC60331 IEC60754-2 IEC60134-2

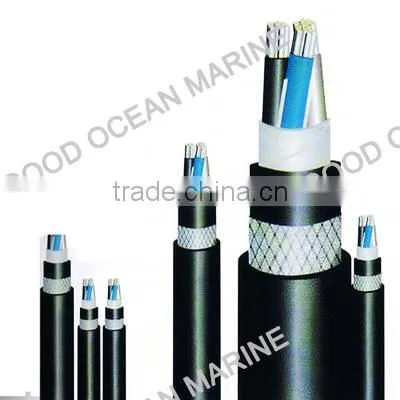

Marine cable construction:
1. Conductor: tinned copper wire,class2 or 5
2. Fire resistant Mica tape on request
3. Insulation: XLPE/EPR
4. Filler ( if necessary)
5. Tape
6. Inner sheath: PVC/PCP/PO(SHF1,SHF2)
7. Screen/Armored: tinned copper wire braided or Galvanized steel wire braided
8. Outer sheath:PVC/PCP/PO(SHF1, SHF2)
Marine cable specification
Cores: 1,2, 3, 4, 5, 7, 8,10, 12, 14, 16,19, 24, 27, 30, 33, 37
Nominal Cross-section Areas: 1.0mm2, 1.5mm2, 2.5mm2, 4.0mm2, 6.0mm2, 10mm2,16 mm2, 25mm2, 35mm2, 50mm2, 70mm2,95mm2, 120mm2, 150mm2 ,185mm2, 240mm2, 300mm2
Marine cable Flammability features
SA:bunched cable flame retardant
SC:bunched cable flame retardant,halogen free & low smoke
NA:bunched cable flame retardant,fire resistant
NC:bunched cable flame retardant,fire resistant,halogen free & low smoke
Marine cable application
This marine cables are intended for power,lighting of shipboard or offshore building.It is also available for power plant,chemical works and mines,etc.
Marine cable Classification Society Certificates
CCS,ABS,DNV,BV,LRS,GL,RINA,KR,NK.
The radius of bend for the installation of marine cable
Cable structure features |
Over diameter of cable(D) |
Minimum internal bending radius |
Metal braided armored |
Any value |
6D |
Non-armored |
D≤25 |
4D |
D25 |
6D |
