Help CenterGL Marine Communication Cable
Related Products
Specifications
GL Marine Communication Cable1.tinned copper conductor
2.Twisted pair
2.EPR/XLPE insulation
3.PVC PO sheath

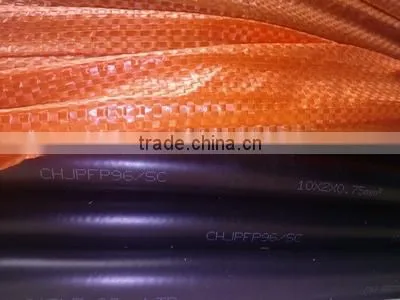

GL Marine Communication Cable
Rating voltage: 150V/250V
Standards applied
IEC60228 IEC60092-351 IEC60092-376 IEC60092-359
IEC60332-1 IEC60332-3-22 IEC60331 IEC60754-2 IEC60134-2

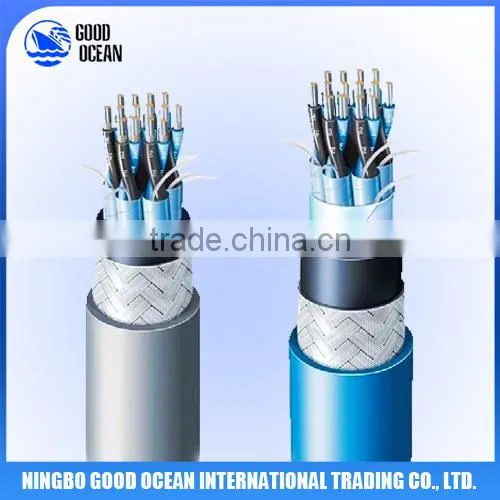

marine communication cable Construction:
1. Conductor: twisted pair tinned copper wire,class2 or 5
2. Fire resistant Mica tape on request
3. Insulation: XLPE/EPR
4. Individual shield: tinned copper wire braided or AL polyester tape+drain wire
5. Filler ( if necessary)
6. Tape
7. Inner sheath: PVC/PCP/PO(SHF1,SHF2)
8. Overall shield/Armored: tinned copper wire braided or Galvanized steel wire braided
9. Outer sheath:PVC/PCP/PO(SHF1, SHF2)
marine communication cable Specifications:
Cores(in pairs or triples): 1,2, 3, 4, 5, 7, 8,10, 12, 14, 16,19, 24, 27, 30, 33, 37
Nominal Cross-section Areas: 0.75mm2, 1 mm2, 1.5mm2, 2.5mm2
Flammability features
SA:bunched cable flame retardant
SC:bunched cable flame retardant,halogen free & low smoke
NA:bunched cable flame retardant,fire resistant
NC:bunched cable flame retardant,fire resistant,halogen free & low smoke
Application:
This marine communication cable is intended for control,instrumentation,telecommunication and alarm system of shipboard or offshore building.It is also available for power plant,chemical works and mines,etc.
Classification Society Certificates
CCS,ABS,DNV,BV,LRS,GL,RINA,KR,NK.
The radius of bend for the installation of marine communication cable
Cable structure features Over diameter of cable(D) Minimum internal bending radius
Metal braided armored Any value 6D
Non-armored D≤25 4D D>25 6D
welcome to contact me for more information
Jack Wu(Mr.)
Cellphone:+86 159 68466895
