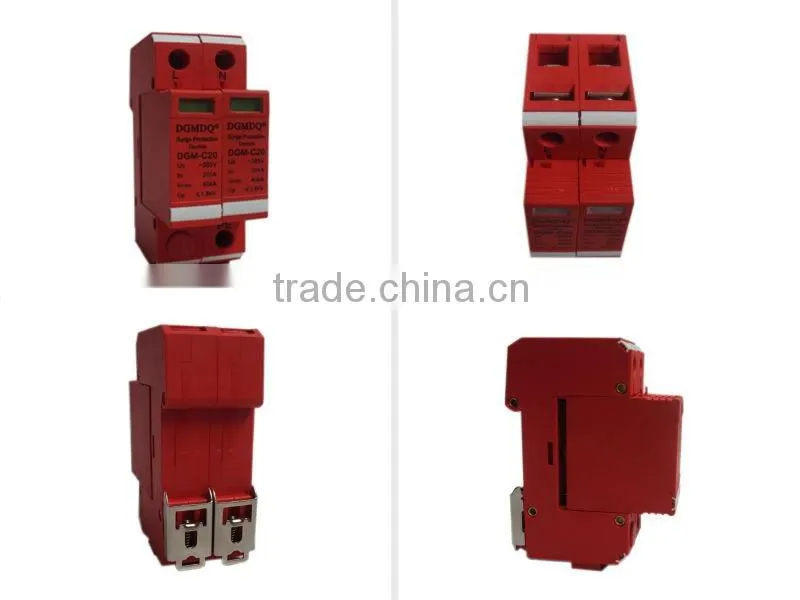

24v dc surge suppressor

Specifications

24v dc surge suppressor
PBT material
1 inner box, out carton package
apply for house,transportation,industry etc
CE

dc surge suppressor

Product introduce and application:





• DGM-type surge protector(hereinafter referred to as SPD)adapted to AC,mainly used for rated voltage not exceeding 1000V(RMS),200/380V,50/60Hz power supply system,not exceeding 1500V DC voltage of the circuit and equipment of the Surge Protection.SPD has a phase to phase(L-L),phase to ground(L-NE),phase to neutral(L-N),neutral to ground(N-PE) and combinations such as protected model.



• DGM-based high quality surge protector to use non-linear components and low residual voltage,small discharge current,modulus,and using safely and reliablely,designed and manufactured in accordance with the standards GB18802.1-2002/IEC61643.1,products have passed CE Certification and the national test Room:Beijing Lightning Experimental Device Type Detection Centers.

Part of DC power surge protection technology parameters:



Type No.	DC power system Voltage(V) Un	Continuous Voltage Uc(V~)	Standard Discharge Current In(KA)	Max Discharge Current Imax(KA)	Protection Level(KA~)
DGM-D5-Z/12	12	16	5	10	120
DGM-D5-Z/24	24	32	5	10	150
DGM-D5-Z/48	48	62	5	10	250
DGM-D5-Z/110	110	140	5	10	500
DGM-D10-Z/12	12	16	10	20	150
DGM-D10-Z/24	24	32	10	20	200
DGM-D10-Z/48	48	62	10	20	300
DGM-D10-Z/110	110	140	10	20	600
DGM-C20-Z/48	48	62	20	40	350
DGM-C20-Z/110	110	142	20	40	650
