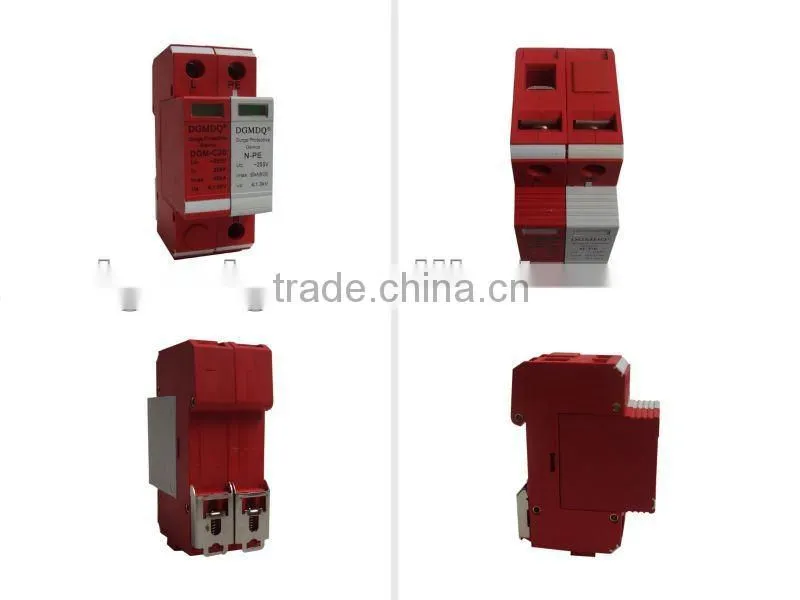

Switching Surge Arrester With FM
US$ 20 - 25
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
DGMDQ
Model Number:
DGM2-C20/3+1
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Surge Arrestor With Remote SignallingUS$ 19.1 - 19.5MOQ: 30 Pieces -
Combination Arrestor, Protection Set for TT, TN and IT SystemUS$ 20.7 - 30MOQ: 30 Pieces
-
Lightning Current and Surge Arrestor,1-pin+NPE With Remote SignallingUS$ 11 - 16MOQ: 1 Piece
-
Surge Protector/ SPD/ Over Voltage Protective DeviceNegotiableMOQ: 1 Piece
-
Lightning Protector Class B With 4PNegotiableMOQ: 3 Pieces
Place of Origin
Zhejiang, China
Brand Name
DGMDQ
Model Number
DGM2-C20/3+1
Specifications
Switching surge arrester with FMClass C, Float switch
18mmX4 width
Modular design
20-40KA, NPE
Switching surge arrester with FM
Technical Data
| Model No. | DGM2-C20 |
| Version | 3+NPE |
| Complies with | IEC61643-1 |
| Frequency | 50/60Hz |
| Rated voltage(V)Un | 220/380 |
| ntinuous operatiing voltage(V)Uc | 275/320/385/420 |
| Nominal discharge current 8/20μs In(KA) | 20KA |
| Max.discharge current 8/20μs Imax(KA) | 40KA |
| Voltage protection level Up(KV) | 1.8 |
| Response time ns | ≤25 |
| Housing material | PA,antiflaming |
| Varistor | ZnO |
| Operating temperature | -40 to 65 |
| Relative Humidity | less than 90% |
| Altitude | less than 2000M |
| Color | White and Blue |
| Protection degree | IP20 |
| Fuse or switch(A) | 32A |
| Function display( visible window ) | Normal : Green Failure: Red |
| Adapt to | TT, TN, IT system |
| Installation | 35mm Din rail |
| The cross section of L/N Line | 10,16mm2 |
| The cross section of PELine | 10,25mm2 |
| Net weight | 0.5KG |
| Carton | 400x300x16mm |
| Package | 30PCS/CTN |
| G.W for 1 Carton | 17KGS |
