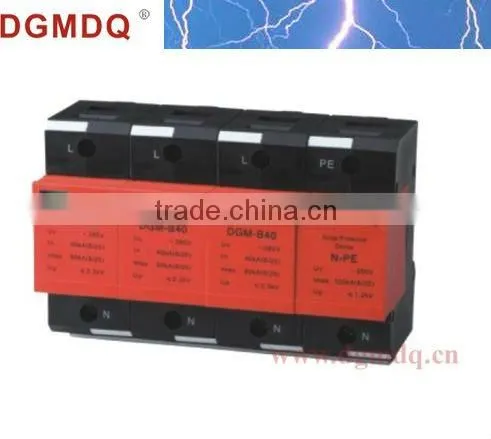

4P Power Surge Protector/ Class B Surge Protection Device / 40kA

4P Power Surge Protector/ Class B Surge Protection Device / 40kA thumbnail-1
4P Power Surge Protector/ Class B Surge Protection Device / 40kA photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
DGMDQ
Model Number:
DGM4-B40/3+1
Contact Supplier Request Quote Chat Now
Zhejiang Leishu Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name DGMDQ
Model Number DGM4-B40/3+1

Specifications

4P Power Surge Protector/ Class B surge protection device / 40kA
1,CE Certification & Test Report
2,Class B,Lower residual

 4P Power Surge Protector/ Class B surge protection device / 40kA



Product introduce and application:



4P Power Surge Protector/ Class B surge protection device / 40kA

  • DGM-type surge protector(hereinafter referred to as SPD)adapted to AC,mainly used for rated voltage not exceeding 1000V(RMS),200/380V,50/60Hz power supply system,not exceeding 1500V DC voltage of the circuit and equipment of the Surge Protection.SPD has a phase to phase(L-L),phase to ground(L-NE),phase to neutral(L-N),neutral to ground(N-PE) and combinations such as protected model.
  • DGM-based high quality surge protector to use non-linear components and low residual voltage,small discharge current,modulus,and using safely and reliablely,designed and manufactured in accordance with the standards GB18802.1-2002/IEC61643.1,products have passed CE Certification and the national test Room:Beijing Lightning Experimental Device Type Detection Centers.



The  DGM4-B40/3+1 exact technology parameter is as below:



Type No.

Rated

Voltage(V)

Un

Continuous Voltage

Uc(V~)

Standard

Discharge

Current

In(KA)

Max

Discharge

Current

Imax(KA)

Protection

Level(KA~)

Response

Time(ns)

DGM4--B40

220/380

275/320

385/420

40

80

2.4

≤25

DGM-NPE

220/380

250/255

40/60

60/80

1.2

≤100







Excellence in product quality and quality of services, cooperation was more than excellent suppliers.

Key words : Class B surge protector device / 40kA,Protective Device,Metal oxide surge arrester,Surge protective device
